Page 12

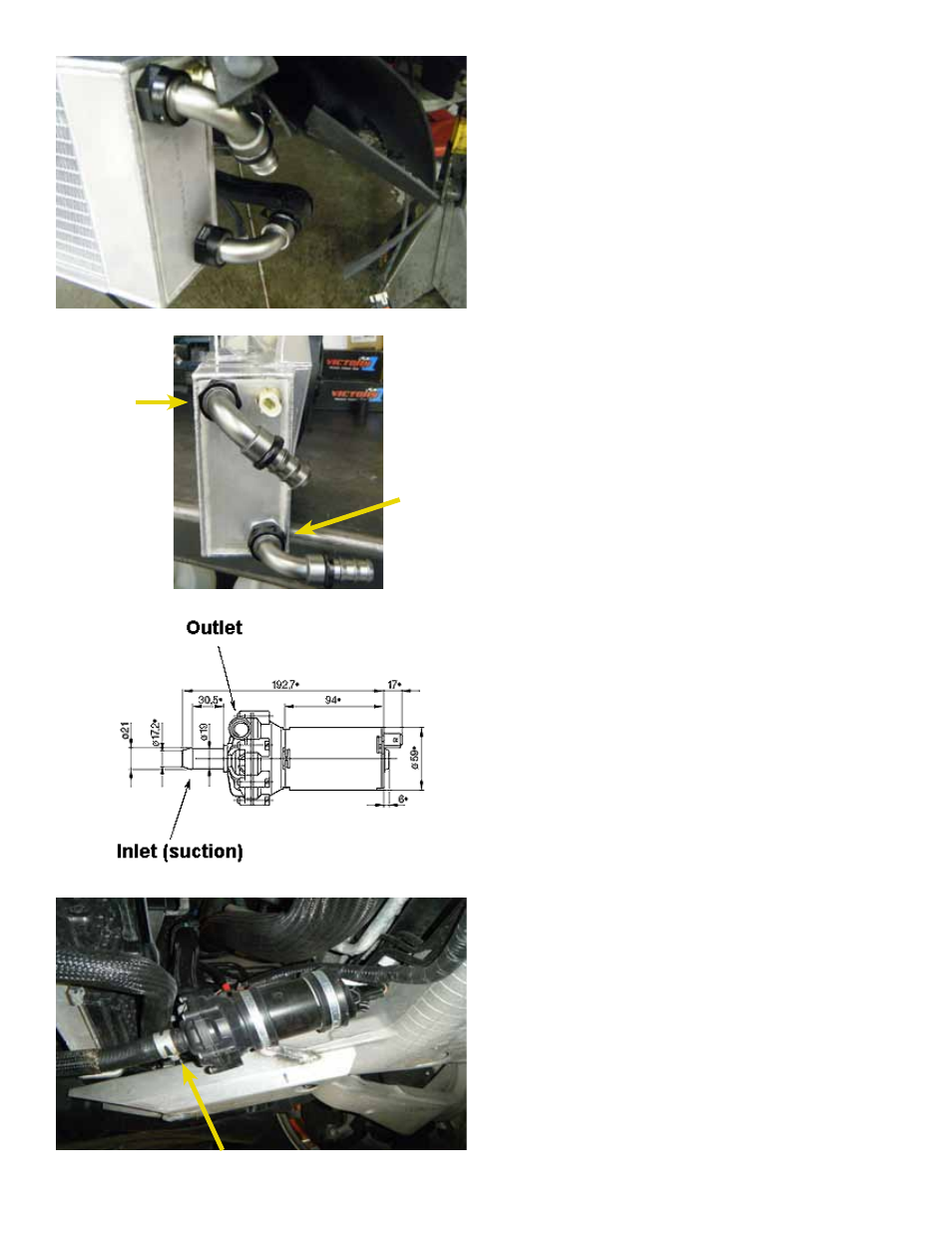

33. The recommended positions for the two
fittings is pointing down and back towards
the engine compartment. Once the fittings
are clocked properly use a 1-1/4” inch
(32mm) wrench to tighten the fittings.
Tighten to 30 lb-ft (40 Nm).
34. Use the image to the left as a reference for
the inlet and outlet of the new intercooler
radiator.
35. Use the image to the left as a reference for
the inlet and outlet fitting locations of the
intercooler pump.
OUT from the intercooler radiator goes to
the INLET (suction) side of the pump. The
OUTLET of the pump goes to the charge air
cooler in the supercharger assembly on the
engine.
36. Locate the intercooler pump and use the
hose clamp pliers to release the tension
on the inlet hose (suction side) clamp and
remove the hose from the pump.
NOTE: If you are installing the optional high
flow intercooler pump kit now is a good time
to perform that process.
IN
(HOT)
OUT
(COLD)
