9
Programming ECG
Set Running Rhythm

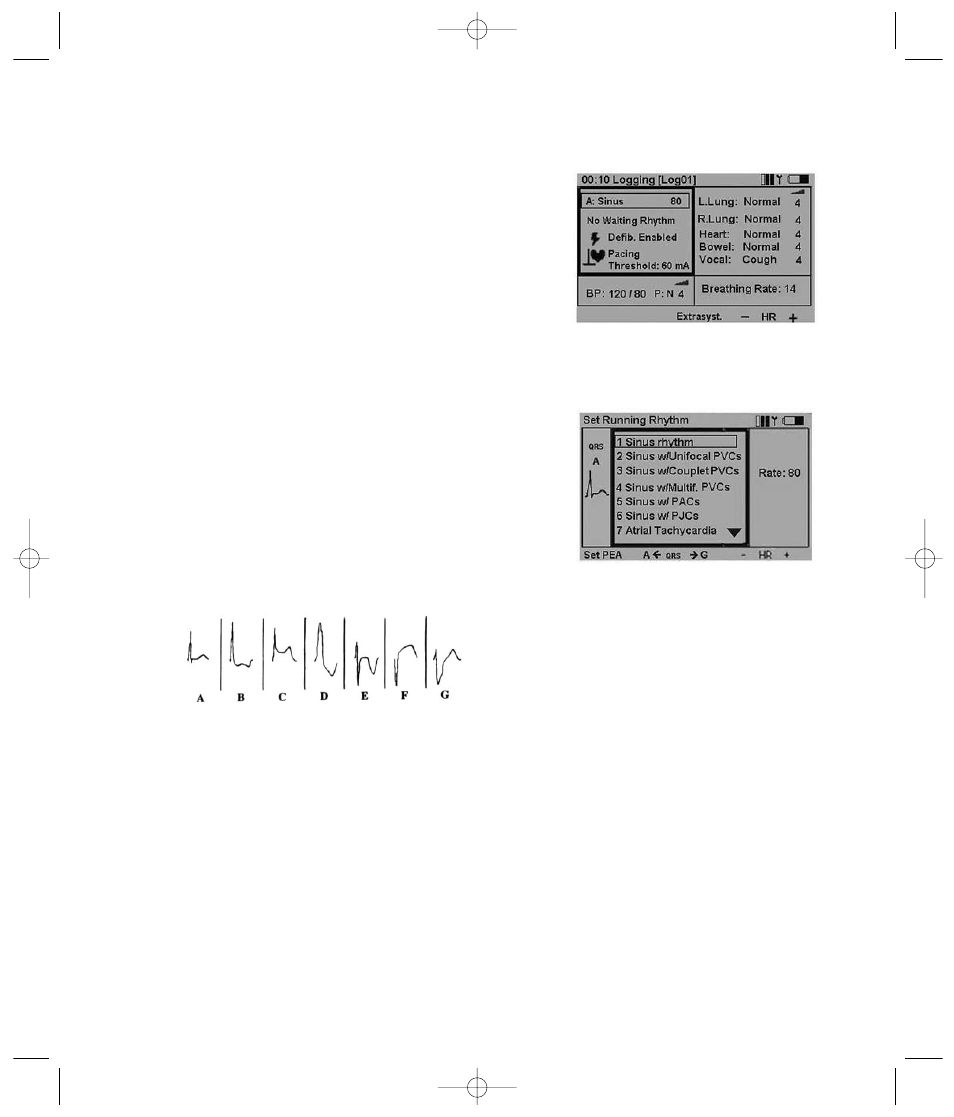

On the main display, using the left / right navigation buttons, hig-
hlight the ECG functional area and press OK to edit
the functions.
Note: Some functions may be changed directly from the main
display using the quick execution buttons.
• HR+ and HR– Changes the heart rate up and down.
• Extrasyst. generates an extrasystole of the selected kind
(on Sinus rhythms only), immediately after the button
is pushed. If no extrasystole is selected, a Unifocal PVC will
be generated.
Selecting Rhythm
Using the navigation buttons, highlight the desired rhythm
and press OK.
Rate and QRS type can be modified using
the quick execution buttons,
OR
By highlighting the QRS or Rate area using the left / right
navigation buttons and then use the numeric pad or up/
down buttons.
QRS types can be set to A through G:
Available rates are dependent on the selected rhythm.
Setting PEA sets the BP to 0.
