LI-ION BATTERY
CONNECTORS
Connector tail for battery out and charging:
Pin out:
Battery type
Li-Ion, 4 cells
Cell type
LIC18650-22PC
Voltage
7,2 V nominal
Capacity
4,4 Ah typical (32 Wh)
Size
98 x 78 x 28,1 mm (3,86” x 3,07” x 1,11”)
Weight
270 g (0.6 lb) approximately.
BATTERY CHARGING
Charging voltage input
9 – 15V DC, 1,6 A max
Charging method
Constant Current + Constant Voltage
Constant current
1.33A typ.
Expected cycle life
700 cycles for ≥ 1400mAh (cell)
Charging time:
0 – 80 %: 30 % per hour
80% - 100%: 1 hour.
CHARGING INDICATOR
1. The charging indicator is only active when there is a charging voltage present.
2. Charging: Steady yellow light
3. Charged: Steady Green light.

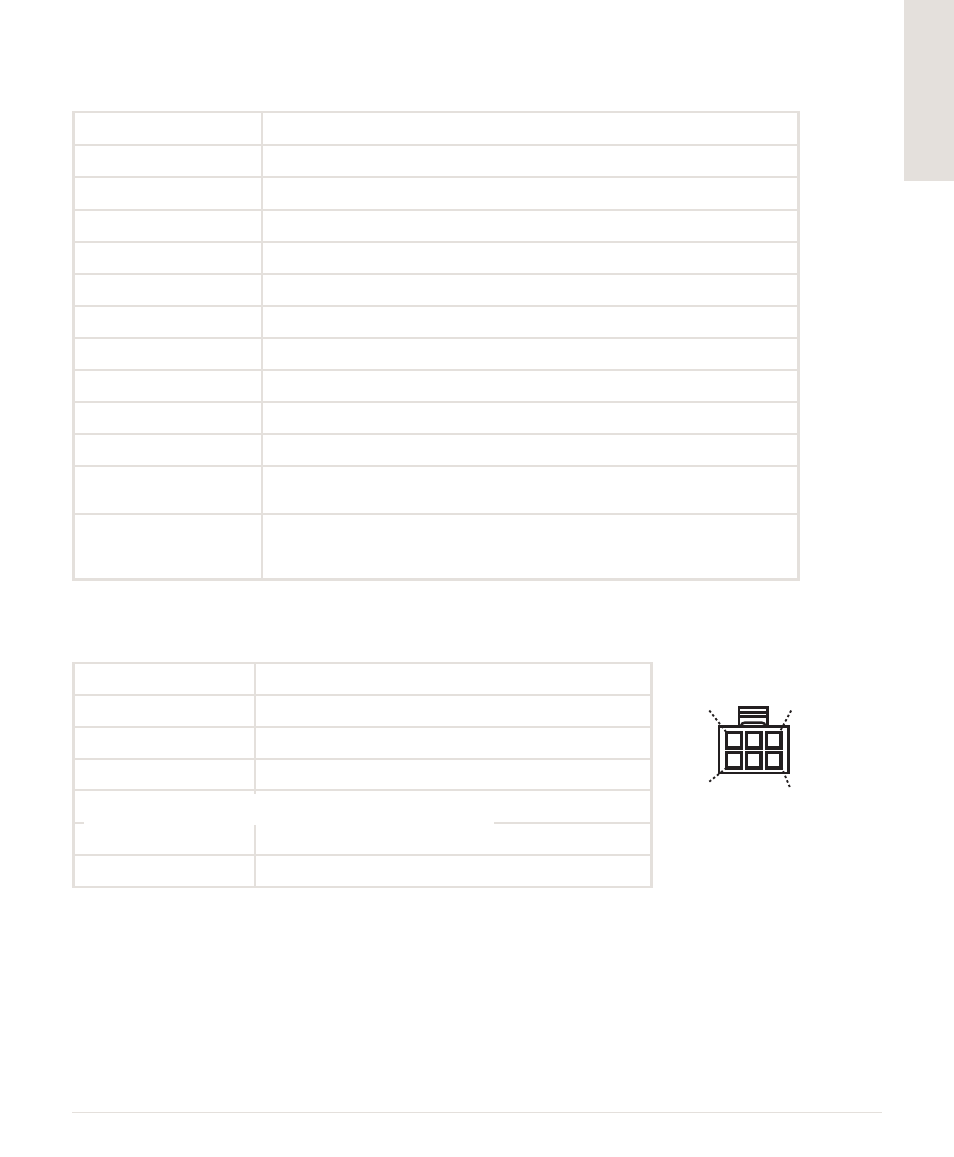

(Front view of plug)
PIN
DESCRIPTION
1
Battery data
2, 5
Battery +
3, 4, 6
Battery -
Connector type:
DC-plug receptacle with 2 mm center pin, + on center pin
Input voltage level:
9V – 15V DC
DC INPUT CONNECTOR FOR BATTERY CHARGING
