Laerdal SimPad User Manual
Page 28
28
1
1
1

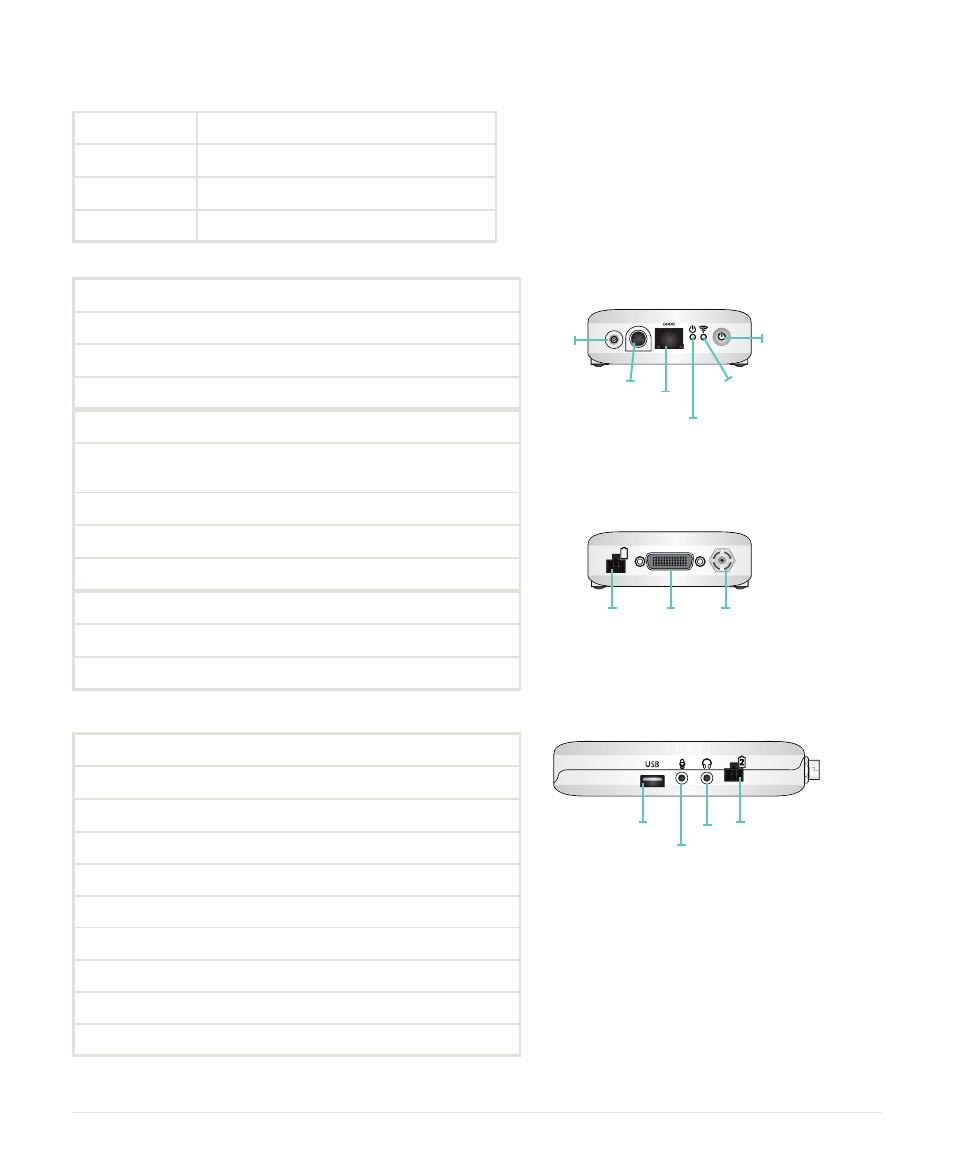

LINK BOX
OPERATION:
CONNECTIONS
Size
140 x 90 x 30 mm (5,51” x 3,54”x 1,18”)
Weight
200 g (0,44 lb)
Communication
WiFi 802.11b/g (2.4GHz)
Ethernet
10/ 100 MB
ON / OFF BUTTON:
1. Press for 0,5 seconds to turn unit on (LED start blinking green).
2. Press 0,5 seconds to turn unit off (confirm on screen).
3. Press and hold for more than 5 seconds to force unit off.
POWER LED:
1. Unit off and charging: Blinking yellow light when charging,
Steady yellow light when batteries charged.
2. Unit starting and shutting down: Blinking green light.
3. Unit on: Steady green light.
4. Error, needs service: Steady red light.
WIFI LED:
1. Connected to a network: Steady green.
2. Connected to a Link Box: Steady blue.
DC input: 9 – 15 V DC, 3,3 A max, + on center pin.
Ethernet: RJ45 connector.
Future: Connector for future use.
Manikin: Power and signals to manikin. Pulse, sounds etc.
Battery #1: Connector for Laerdal Li-Ion Battery.
Blood Pressure: Cuff pressure input: 0 – 300 mm Hg.
USB: USB A input / output.
Audio in: 3,5 mm jack with TRS input. Line in or microphone level.
Audio out: 3,5 mm jack with TRS output. Line out level.
Battery #2: Connector for Laerdal Li-Ion Battery.
ON / OFF
Power
LED
WiFi
LED
Ethernet
Future
DC
Battery Manikin
Blood Pressure
Audio in
USB
Audio out
Battery
