MAINTENANCE
Replacing Chest Rise Bladder
If the Chest Rise Bladders leak or are damaged:

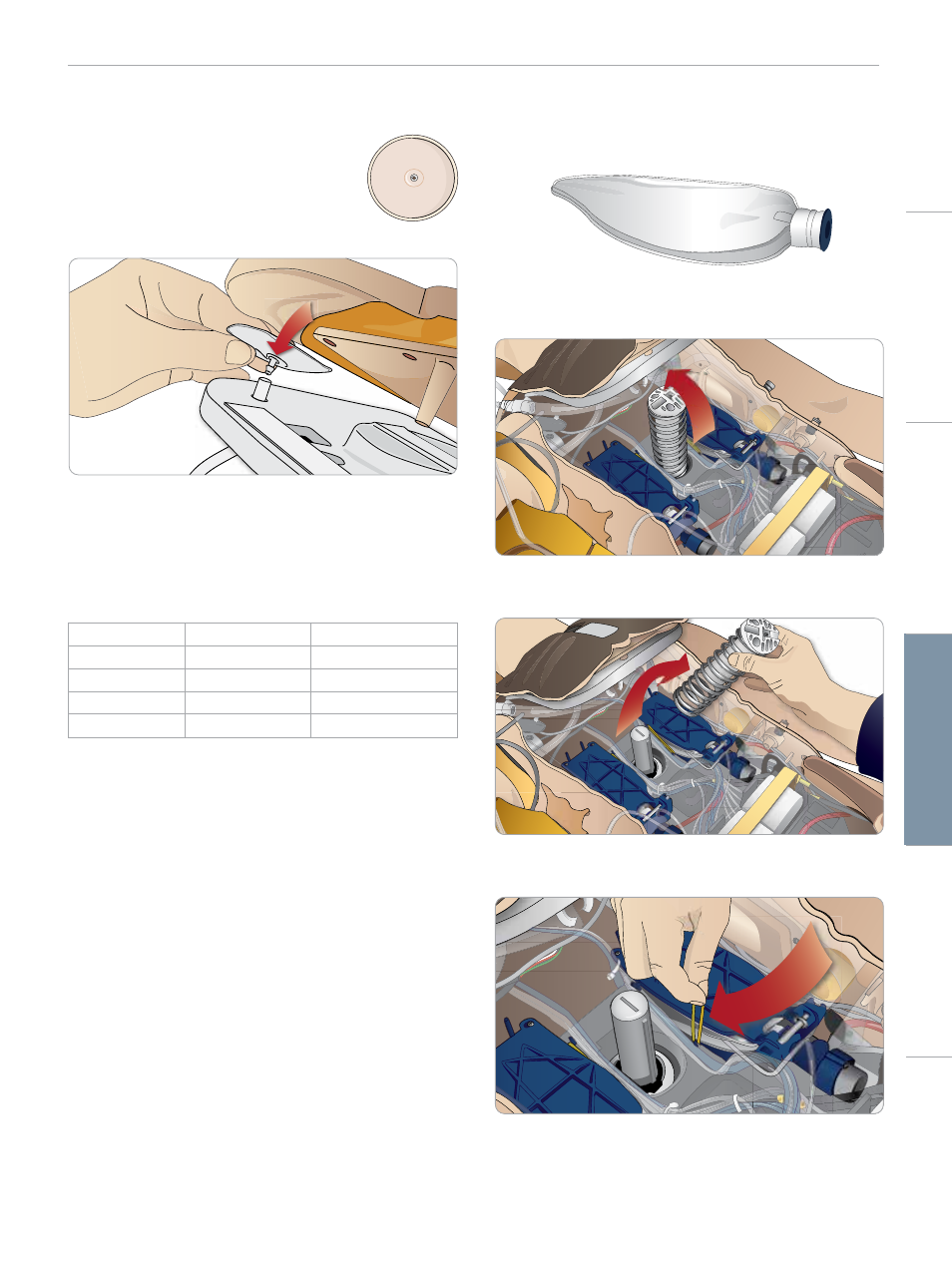

1 Open the Torso Skin to expose the Chest
Plate. There is one bladder on each side of the
Chest Plate assembly.
2 Disconnect the tube from the bladder.
3 Discard the used bladder.
4 Insert new bladder.
5 Reconnect the tube to the new bladder.
Left Leg to Pelvis – Tube Descriptions
Name/Label Tube Color Connector Description
Pneum L Silicon Barb connector
Pneum R Silicon Barb connector
Chest L Silicon Barb connector
Chest R Silicon Barb connector
Replacing Lung Bladders
If leaking occurs, the Lung Bladders (in the chest cavity) should be
replaced.
1 Open the Torso Skin and put the Stomach Foam to the side.
2 Open the hinged Chest Plate upwards, to access the lungs.
3 Remove the chest compression spring for easier access to the
lungs.
4 Unhook the yellow lung compliance bands from each side of the
lung assembly.
5 Open the hinged lung plate.
6 Pull the old lung out from its socket.
