Laerdal 8 ALS Simulator

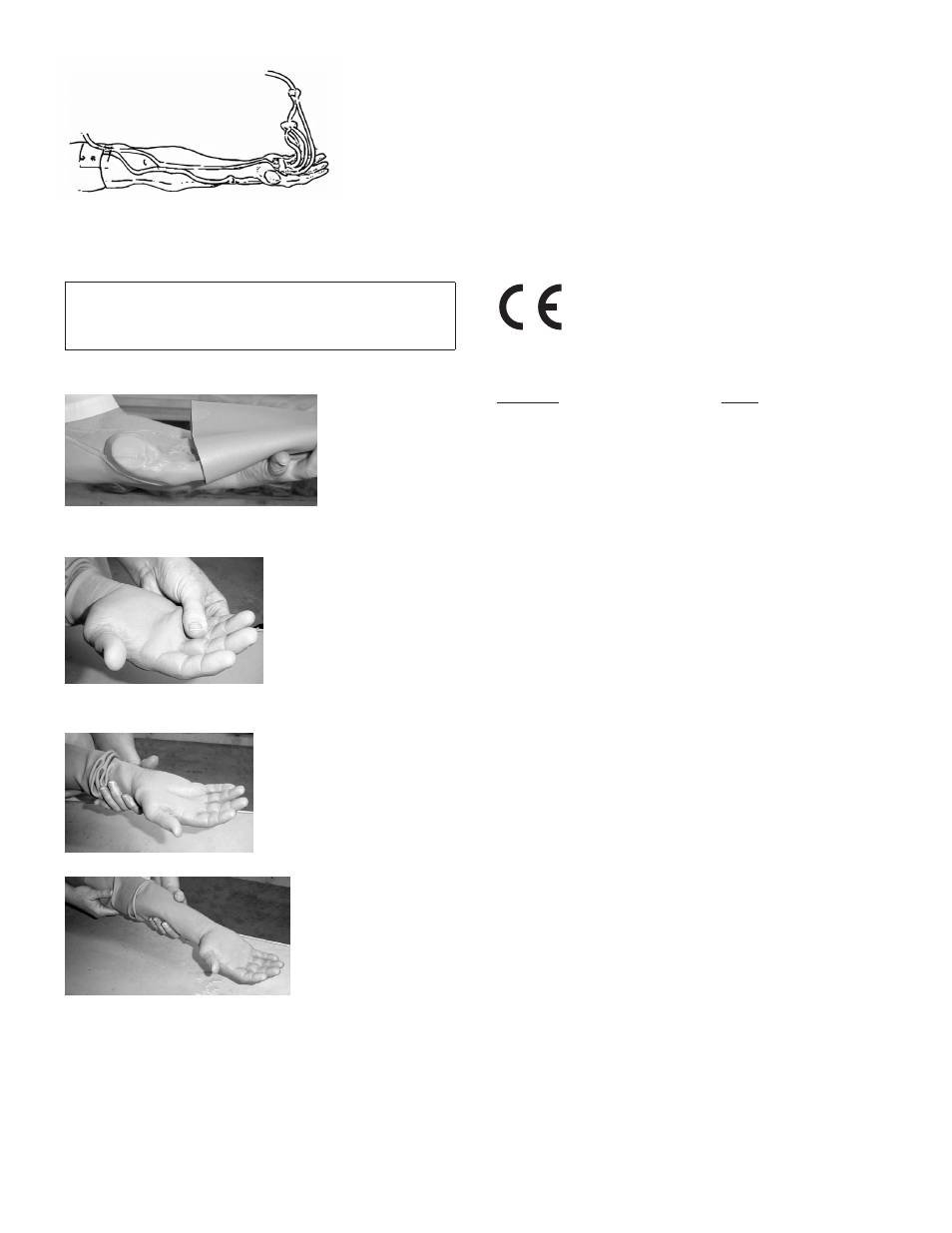

5. 将新的静脉沿凹槽放置（图 7），如有需要，可使用黏合剂。
（建议每 2 到 3 英寸应用少量快干型黏合剂。）
6. 向手臂芯轴涂抹大量肥皂液。
挪度医疗建议
在把皮肤套回手臂芯轴之前，先将皮肤加热。
这里可使用电吹风机。
7. 将手掌滑入皮肤（照片 15）。
8. 让皮肤覆盖手指，类似戴上手套一样（照片 16）。
9. 将手臂皮肤沿芯轴向上滑，直至覆盖整条手臂（照片 17 和 18）。
技术数据
一般
操作温度：
0°C - 40°C，相对湿度为 90%，无凝结
存放温度：
-15°C - 50°C，相对湿度为 90%，无凝结
ALS 模拟人
除颤：最高为平均
720 焦耳/分钟
紧急心脏功能
• 同步的可变心率、节律、异常及持续时间
• 除颤（25 - 360 焦耳）
静脉注射臂
可穿刺静脉包括正中静脉、贵要静脉和头静脉
标准／批准
本产品符合欧盟指令 1999/5/EC、EMC 指令的
基本要求。
本产品符合欧盟委员会指令 2011/65/EC 有关限
制使用特定危险物质 (RoHS) 的规定。
更换配件：
产品编号： 描述：
312029 .................................................................................... 套件，皮肤／静脉，
成人多静脉上臂
205-10150 ............................................................................ 手臂装配件，血压
380410 .................................................................................... 贴片套件，ECG／除颤
205-03650 ............................................................................ 轴，按压
380455 .................................................................................... 皮肤，胸
380460 .................................................................................... 生殖器，空白-成人男性
380461 .................................................................................... 套件，女性生殖器，
带尿路阀门
380462 .................................................................................... 套件，男性生殖器，
带尿路阀门
380470 .................................................................................... 腹板装配件
380471 .................................................................................... 塞子，成人腹板
380475 .................................................................................... 支撑销，骨盆
380600 .................................................................................... 腿装配件，成人左侧
380700 .................................................................................... 手臂，男性多静脉注射训练
381102 .................................................................................... 缚带套件，头部皮肤
381105 .................................................................................... 颈部皮肤套件 (6)
381107 .................................................................................... 牙齿，上部
381402 .................................................................................... 垫装配件，成人三角肌注射区
200-00250 ............................................................................ 胶带，环甲软骨
200-00350 ............................................................................ 装运箱，放置全身成人模拟人
200-00550 ............................................................................ 袖带装配件，血压
200-02850 ............................................................................ 头皮装配件，ALS 模拟人
200-03750 ............................................................................ 胸部泡沫，MegaCode Kelly
200-01750 ............................................................................ 推托装配件，MegaCode Kelly
200-01850 ............................................................................ 气囊装配件，腋中
部 -MegaCode Kelly
200-02050 ............................................................................ 硬件套件，腿到盆腔，
带各种工具
300-00150 ............................................................................ 垫装配件，成人大腿注射区
300-00250 ............................................................................ 垫装配件，成年男性腹臀肌
注射区
300-00350 ............................................................................ 垫装配件，成年男性臀肌注
射区
图 7
照片 15
照片 16
照片 17
照片 18
Table of Contents
Items Included. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Skills Taught. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Teeth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Carotid Pulse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Tracheostomy Plug & Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
NG Tube Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Intubation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lungs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Stomach Reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Belly Plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Injection Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Waist, Knee and Ankle Joints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IV Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Replacing Skin & Vein System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Blood Pressure Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Auscultation of Heart, Breath, Bowel Sounds and Fetal Tones . . . . . . . . . . . . . . 4
Genitalia. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Colon Reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Urinary Catheterization and Enema Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Attaching Nursing Anne Modules to Manikin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SimPad Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Care and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Items Included:
(1) Full-Body Female Manikin
(1) Articulating Blood Pressure Training Arm (Nursing Anne SimPad)
(1) Articulating Female Multi-Venous IV Training Arm
(1) Hospital Gown
(1) Male Genitalia
(1) Female Genitalia
(3) Urinary Valves
(3) Anal Valves
(1) Simulated Blood Concentrate
(1) 100 cc Syringe
(1) Manikin Lubricant
(1) Assembly Tool Kit
Wig pictured on front cover, not included
Optional Accessories
Nursing Anne Modules:
(1) Breast Exam Module, with interchangeable abnormalities
(1) Mastectomy Module with staples and drain
(1) Fundus Module with interchangeable uteri
Wound Care & Assessment Set:
(1) Abdominal Incision Module with Painted Sutures
(1) Abdominal Incision Module with Staples and Penrose Drain
(1) Abdominal Incision Module with Nylon Sutures
and Penrose Drain
(1) Abdominal Subcutaneous Heparin and Insulin Injection Module
(1) Abdominal Packing Module
(1) Infected Colostomy Stoma
(1) Ventro-Gluteal and Gluteal Decubitus Ulcer Modules
(1) Below Knee Amputation Stump
(1) Thigh Packing and Irrigation Module
(1) Thigh Suture Module
(1) Thigh Debridement Module
(1) Varicose Vein Leg with Stasis Ulcer
(1) Diabetic Foot Module
Skills Taught:
• Basic patient handling
• Denture care
• Oral hygiene
•
• Eye andear irrigation
(simulated)
• NG Tube insertion, care medication administration and removal
• Tracheostomy care and suctioning
• Blood pressure skills (When
used with SimPad)
• IV care and management
• Subcutaneous and intramuscular injection
• Oxygen delivery procedures
• Ostomy irrigation and care
• Catheterization skills
• Enema simulation
• Colonic irrigation
• Wound assessment and care
• Bandaging and dressing
• Post-surgical mastectomy-care procedures
• Recognition of breast disorders, their sizes and relative locations
• Practice of fundus massage skills
• Auscultation and recognition of normal and abnormal heart,
breath and bowel sounds and fetal tones
(When used with SimPad)
Caution: Latex
This product contains Natural Rubber latex which may cause
allergic reactions when in contact with humans.
Please contact Laerdal Customer Service
for more information on Replacement Parts in other skin tones.
E
N
G
LI
SH
E
NGLISH
Nursing Anne 1 Laerdal
The product, when carrying the CE-mark, is in
compliance with essential CE requirements and other
relevant provisions of council directive 1999/5/EC.
• Lavage/Gavage
Oral and nasal Intubation
.
