Labconco Instruction Sheet 1049200, Rev -, ECO H250 01/13 2 of 5
Set-up
1. The Small Stoppering Chamber has a stoppering travel distance of ½”(12.7mm), it can
accommodate vials that range in height from 1.38”(35mm) to 2.48”(63mm) tall by using
zero, one, or two of the spacers which are provided. Labconco offers 6 sizes of serum
vials that can be used in the Small Stoppering Chamber. See the chart below to determine
the number of spacers required for specific vials and the total number of vials the
chamber will hold of each size.
Size Part no. Number of
Bottles/run
Spacers
Required
Vial Dimensions
Diameter x Height
Split Stopper
Part No.
Alum Seal
Part No.
2 ml 7575000 48 2 18mm x 35mm 7576000 7577000
3ml 7575200 43 2 17mm x 28mm 7576000 7577000
5 ml 7573000 21 1 23mm x 47mm 7576200 7577100
10 ml 7573200 19 1 25mm x 54mm 7576200 7577100
20 ml 7573400 11 0 32mm x 58mm 7576200 7577100
30 ml 7573600 8 0 37mm x 63mm 7676200 7577100
2. Once the vial size is selected place a stoppered vial in the chamber with the tray and
correct number of spacers. The top of the stopper should be located between the two
scribed lines marked on the inside diameter of the clear chamber. If the vial is lower than
the bottom line, the Stoppering device will not stopper fully. If the vial is higher than the
top line the lid will prematurely stopper the vials when it is placed on top of the chamber.
Caution: only one size (height) vial can be Lyophilized and stoppered during the same
run.

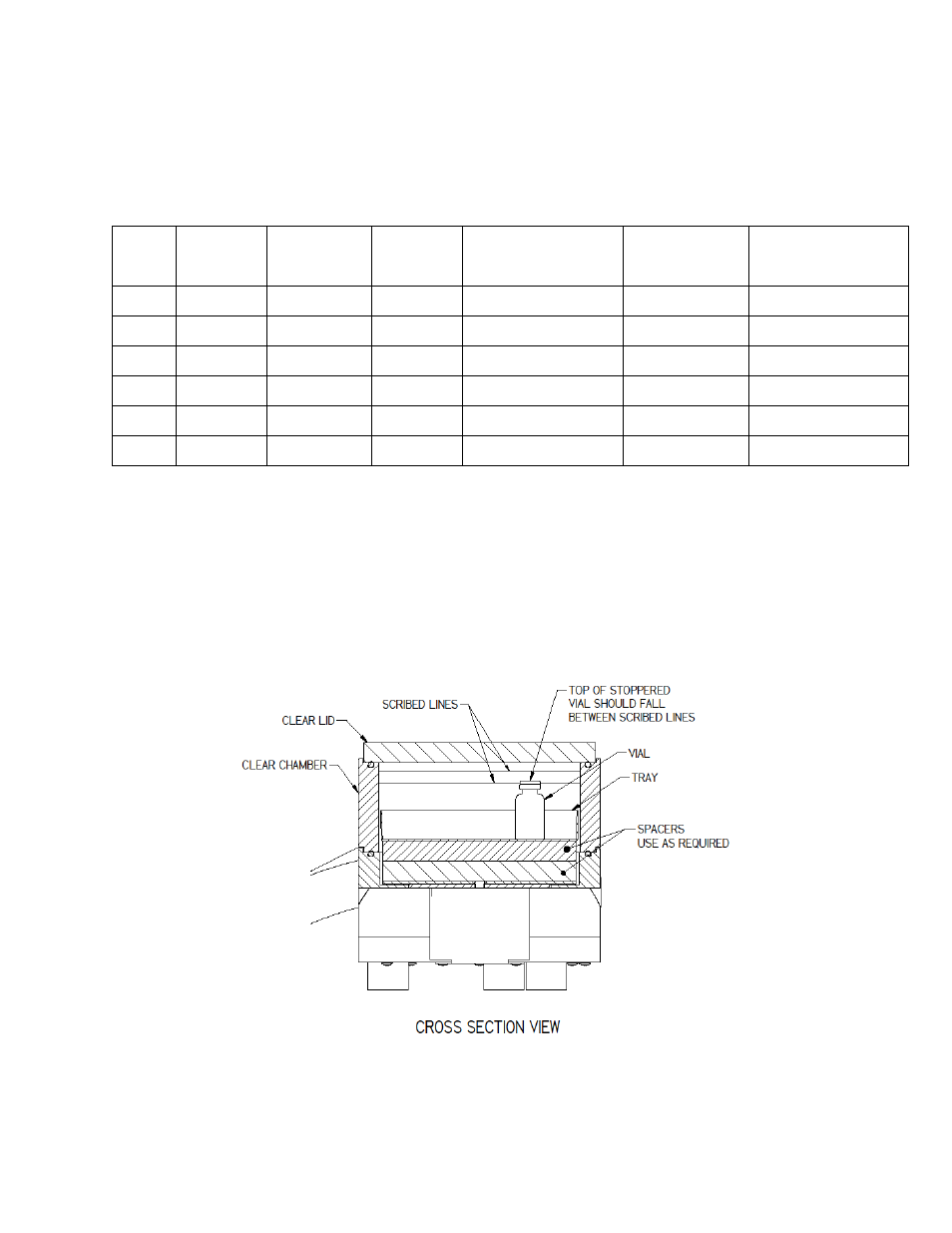

Figure 2
