B-4 User’s Guide

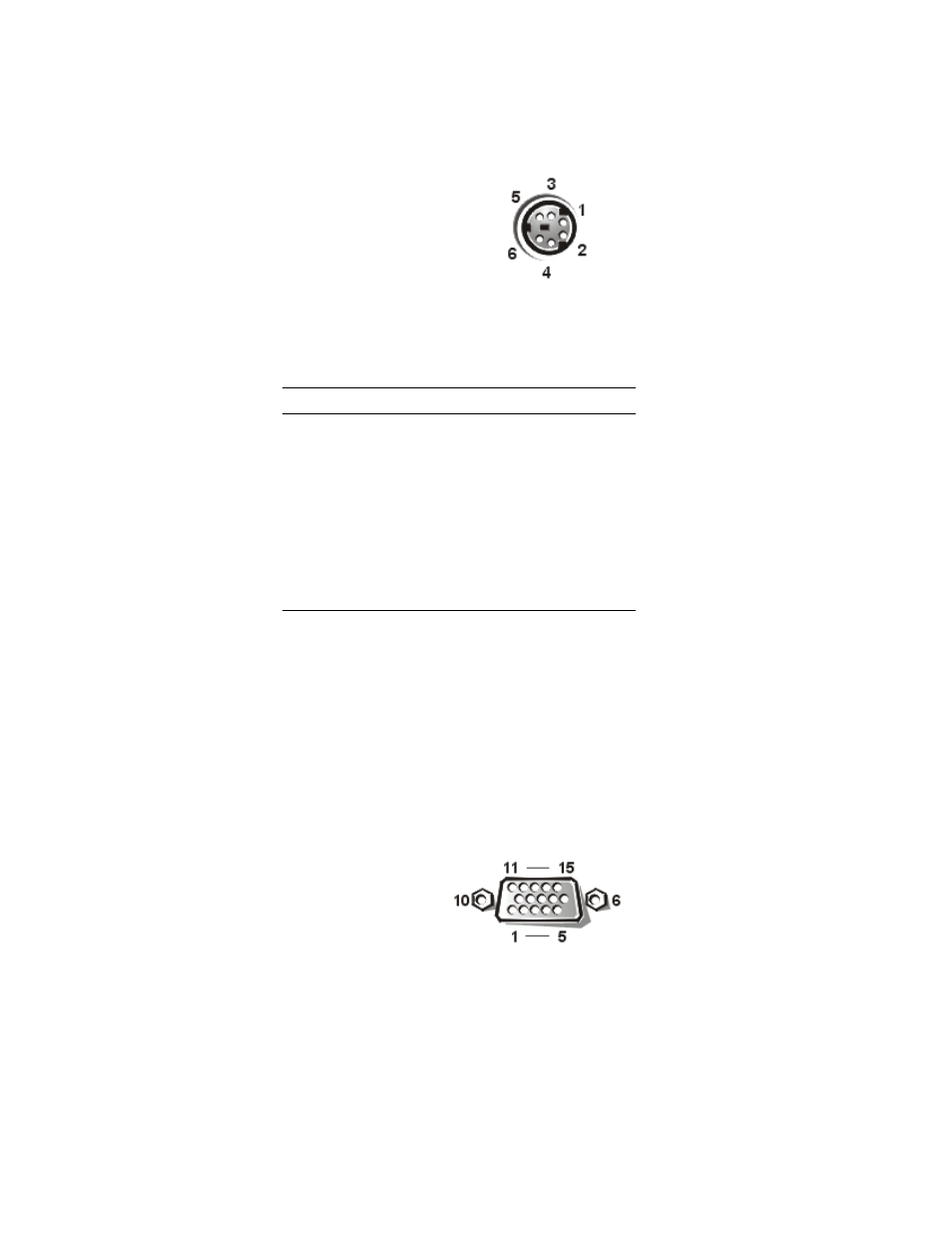

Figure B-4. Pin Numbers for the Mouse Connector
Video Connector
The system uses a 15-pin high-density D-subminiature connector on a video controller
for attaching a video graphics array (VGA)-compatible monitor to your system. The
video circuitry on the system board synchronizes the signals that drive the red, green,
and blue electron guns in the monitor.
If you reconfigure your hardware, you may need pin number and signal information for
the video connector. Figure B-5 illustrates the pin numbers for the video connector,
and Table B-4 defines the pin assignments and interface signals for the video
connector.
Figure B-5. Pin Numbers for the Video Connector
Table B-3. Mouse Connector Pin Assignments
Pin Signal I/O Definition
1 MSDATA I/O Mouse data
2 NC N/A No connection
3 GND N/A Signal ground
4 FVcc N/A Fused supply voltage
5 MSCLK I/O Mouse clock
6 NC N/A No connection
Shell N/A N/A Chassis ground
