Labconco Glassware Washer Service/Technical Manual
14
Modifications
Installing (FlaskScrubber®) & Adjusting the Upper Rack
The Upper Rack comes standard on the SteamScrubber®; however, the
FlaskScrubber® has the option of adding the Upper Rack (Spindle or Basket).
The Optional Upper Spindle Rack provides 30 additional spindles for washing
narrow-neck glassware and is customizable by removing spindles or by
installing Multi-Pin Inserts. The Open Basket allows for the washing of open
mouthed glassware. The height of the upper rack may be varied to suit the
heights of glassware that will be washed in the upper and lower racks.
Installing the Upper Rack

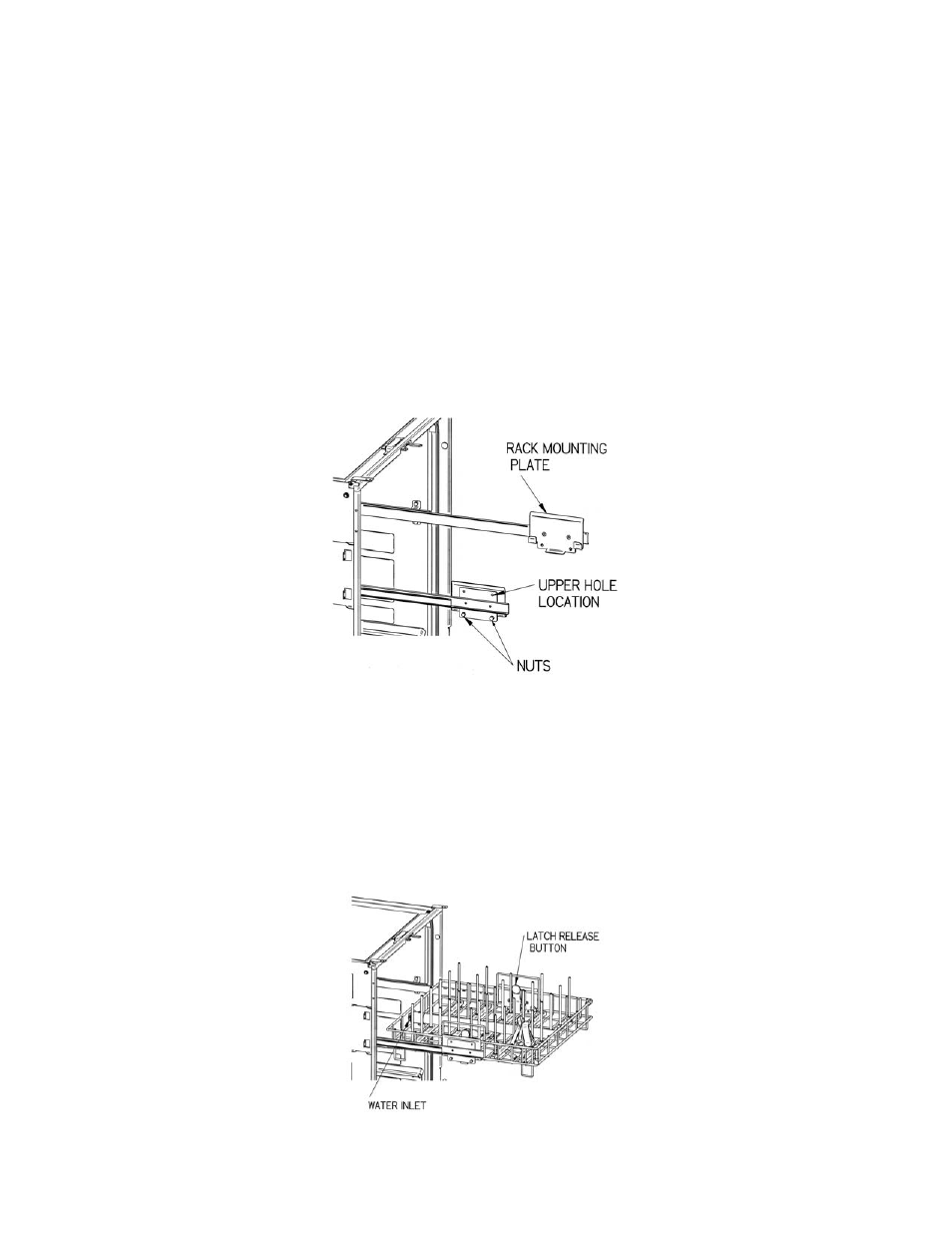

The optional upper racks for FlaskScrubbers® ship with two (2) each Slide
Assemblies and Mounting Bracket Assemblies (See Figure below).
1. Remove the acorn nuts and lock washers from both upper sides using a
3/8” wrench. There are 4 on each side.
2. Position brackets on slides over the studs on the sides. The position
of the rack mounting plates must be as shown. Secure the slide
assemblies using lock washers and acorn nuts removed in Step 1. It may
be necessary to synchronize the travel of the two slides.*
3. Install the Upper Spindle Rack by lowering the rack onto the rack
mounting plates. The water inlet must have its inlet toward the rear.
Make sure the latch on each side secures the rack to the rack mounting
plate.
