Back Panel Interface
71
PLM Series Operation Manual rev 1.2.3
Tests indicate that up to 20 PLMs may be have
their AES3 inputs daisy-chained together, however
circumstances and cabling used may reduce this
figure. Please refer to section 10.6.

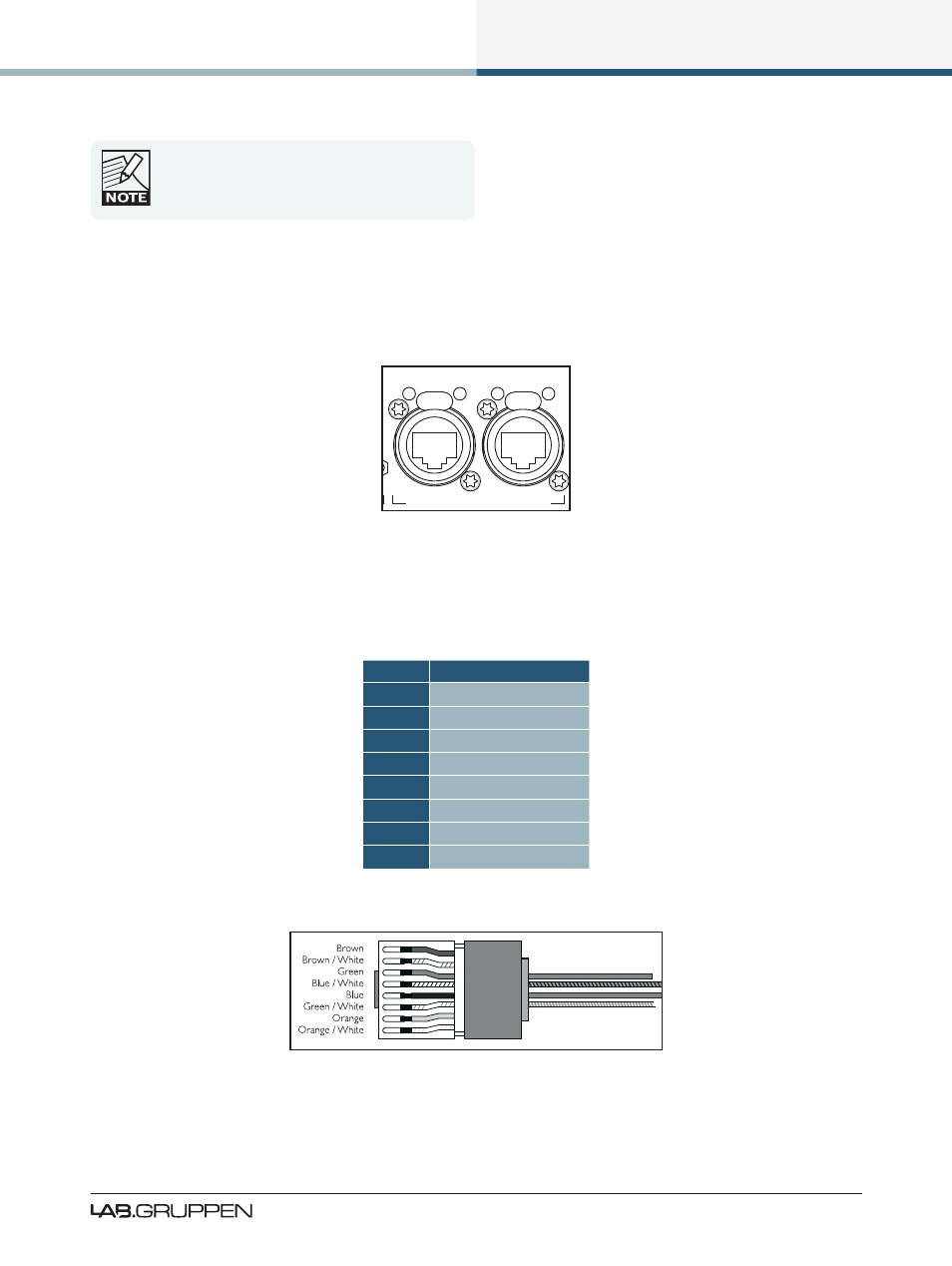

8.4 RJ45 etherCON Network Connections
Two RJ45 etherCON style network connections are provided as shown in Figure 8-16.
SWITCHED 100/1000 Base-T
LINK PRIM ACT SEC LINK ACT
Figure 8-16: etherCON Network Connectors
The network connections auto-sense whether standard or crossover Cat-5e cables are in use. Pre-made
cables with moulded RJ45 plugs are recommended. If it is necessary to make up custom Cat-5e network
cables, use pinout described in Table 8-4.
Pin No. Color
1 Brown
2 Brown + White
3 Green
4 Blue + White
5 Blue
6 Green + White
7 Orange
8 Orange + White
Table 8-4: RJ45 Wiring & Pin Out Description
Figure 8-17: RJ45 Wiring and Pin Out Diagram
