Front Panel Interface
PLM Series Operation Manual rev 1.2.3
▸ FRAME (See section 7.11.5)
▸ Frame Information
▸ Frame Reset
▸ Network
▸ Latency Match
▸ Front Panel
▸ FRAME PRESETS (See section 7.11.7)
▸ Preset Recall
▸ LOAD MONITOR (See section 7.11.8)
▸ Configure No. of Cabinets in Parallel
▸ LoadSmart Verification
▸ Estimated No. of Cabinets
▸ DANTE (See section 7.11.9)
For simplicity, the following sections refer to the
buttons by their associated name on the LCD
screen. E.g. ‘Press GAIN’ equates to ‘Press the
button adjacent to the Gain label on the LCD’.
7.11.2 Module Submenu
MENU > MODULE
After selecting the Module Menu, the screen shown in Figure 7-10 is displayed. Press the illuminated button
adjacent to the required option to view or edit the associated parameters.

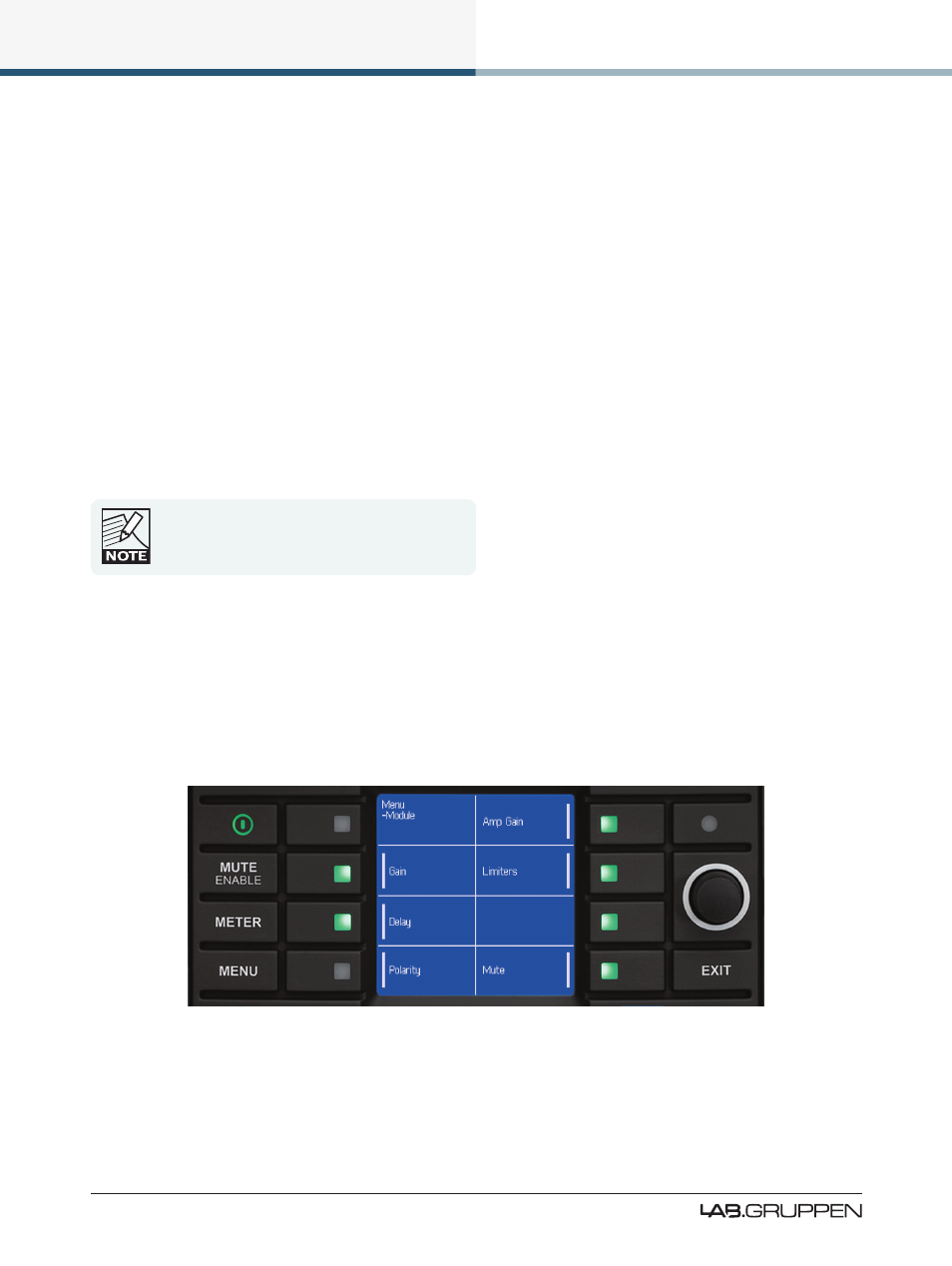

Figure 7-10: Module Submenu
