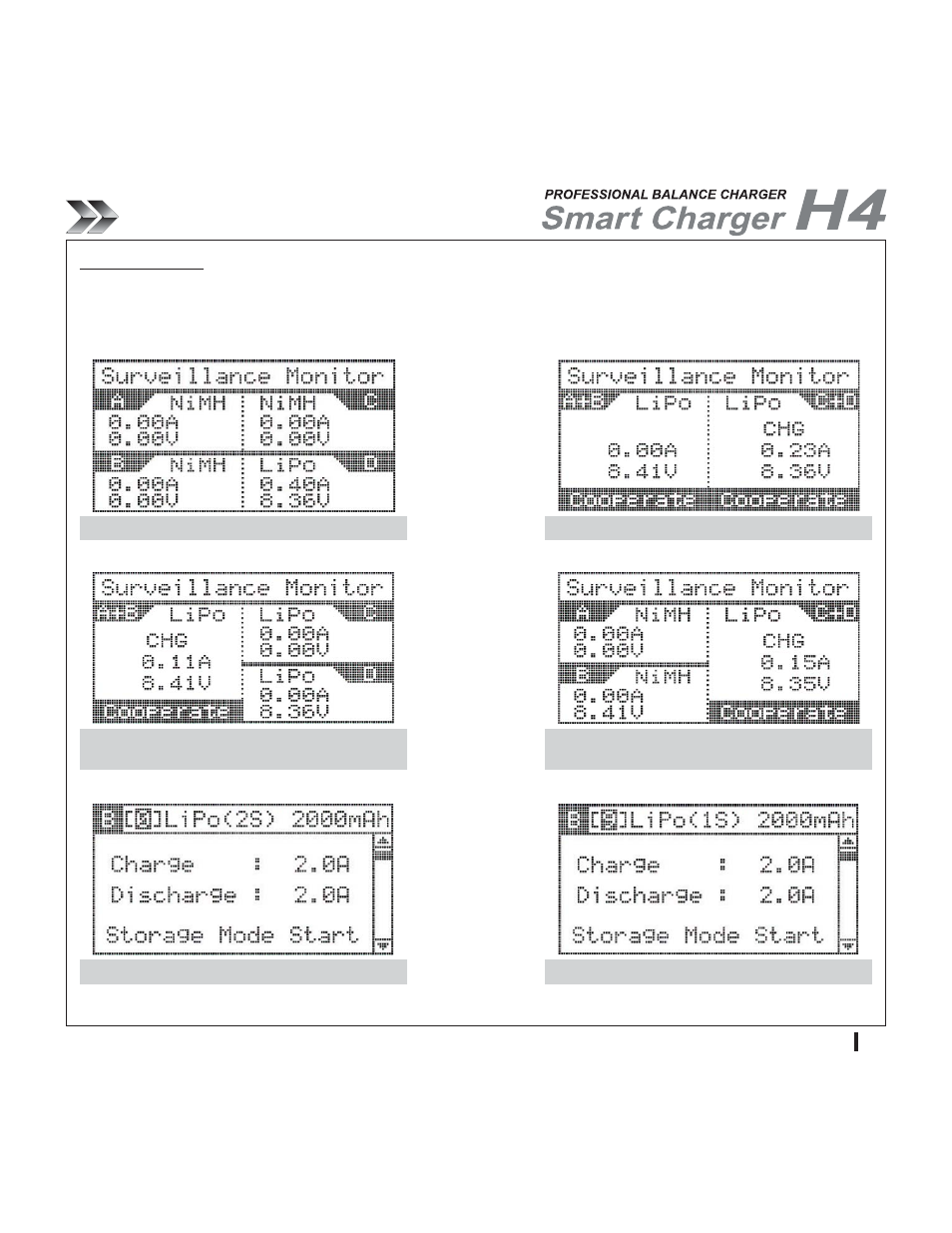

The Surveillance Monitor screen adapts to the H4’s innovative Channel Bridge system by automatically changing to the bridge type. The H4 charger can monitor
all 4 channels charge and discharge status at the same time. From any channel that’s in processing a battery use the [ ] [ ] buttons to scroll to the Surveillance
Monitor screen
When 4 channels are used independently When A+B and C+D channels are bridged
When C+D channels are bridged and A & B operated
independently
The Cursor above is on battery data memory number Each channel can be save 10 separate battery setups [0-9].
When A+B channels are bridged and C & D operated
independently
