HITEC H4: DC/DC, Four-Port Multi-Charger - Manual (Page 32)

32
Hitec
Instruction Manual
*KVGE%JCPPGN$TKFIG%JCTIKPI
=#$%
&?QT=#
$%&?6[RG
6JKUKUWUGFVQDTKFIGQPN[QPGUKFGQHVJGVYQEJCPPGNUKPVQQPG6JKUCNNQYUHQTQPGRQYGTHWNDTKFIGEJCPPGNCPFVYQDCUKEEJCPPGNU6JGDTKFIGF
EJCPPGNRTQXKFGU#HQTEJCTIKPICPF#HQTFKUEJCTIKPI'CEJQHVJGVYQDCUKEEJCPPGNURTQXKFGU#HQTEJCTIKPICPF#HQTFKUEJCTIKPI
A
C+D
B CHG :16A
CHG :8A
CHG :8A
DCHG :4A
DCHG :2A
DCHG :2A

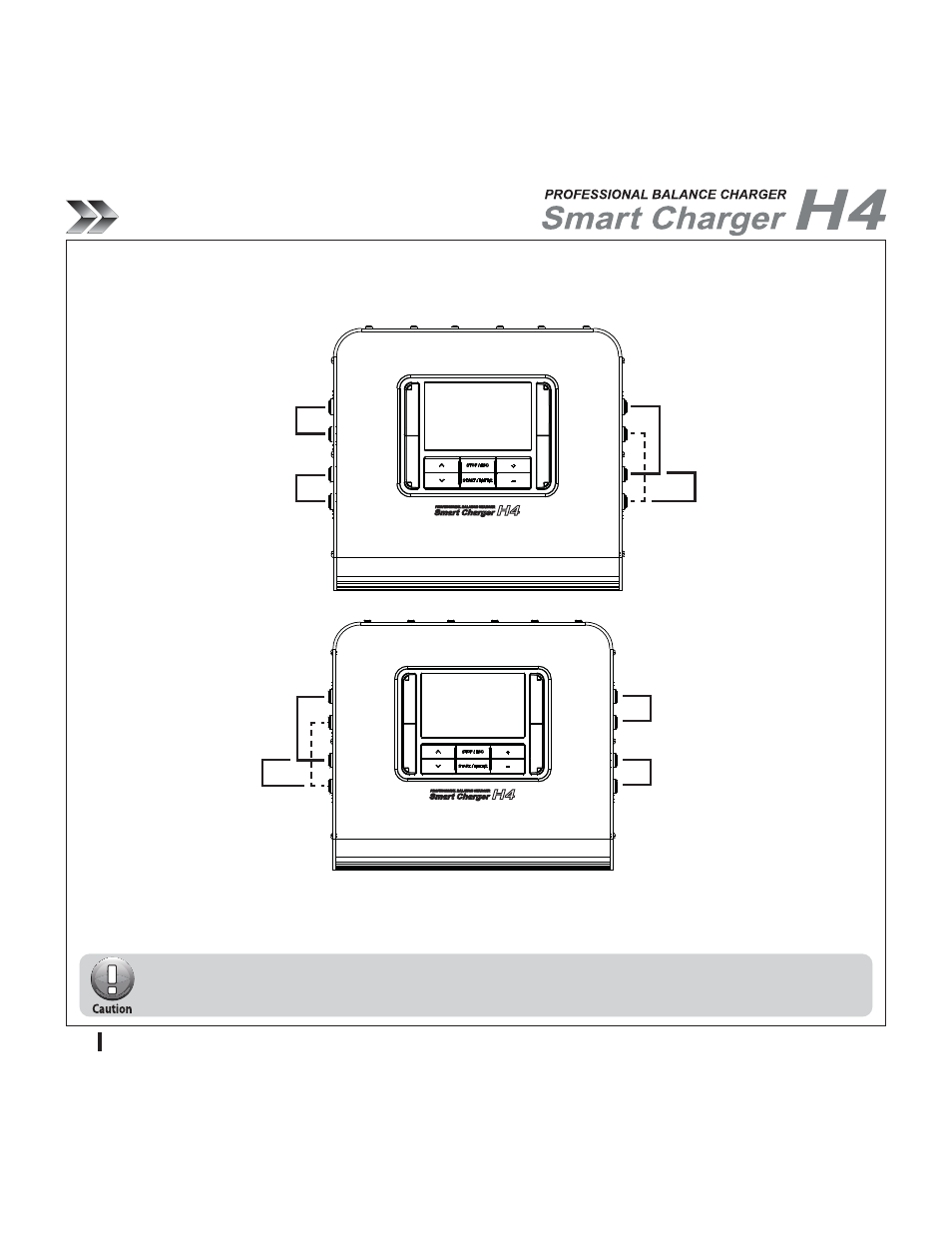

%QPPGEVKPIVJG$TKFIG%CDNG
The Hitec Channel Bridge function can only be used with the Bridge cable. A set of Bridge cables is provided in the H4 Box. Extra Bridge cables are sold separately.
Make sure to connect the bridge according to your setup as shown in the illustrations.
A+B
CHG :16A
DCHG :4A
C
D
CHG :8A
CHG :8A
DCHG :2A
DCHG :2A
Before beginning the Charge or Discharge process with the Channel Bridge system make sure to check the program is properly setup.
