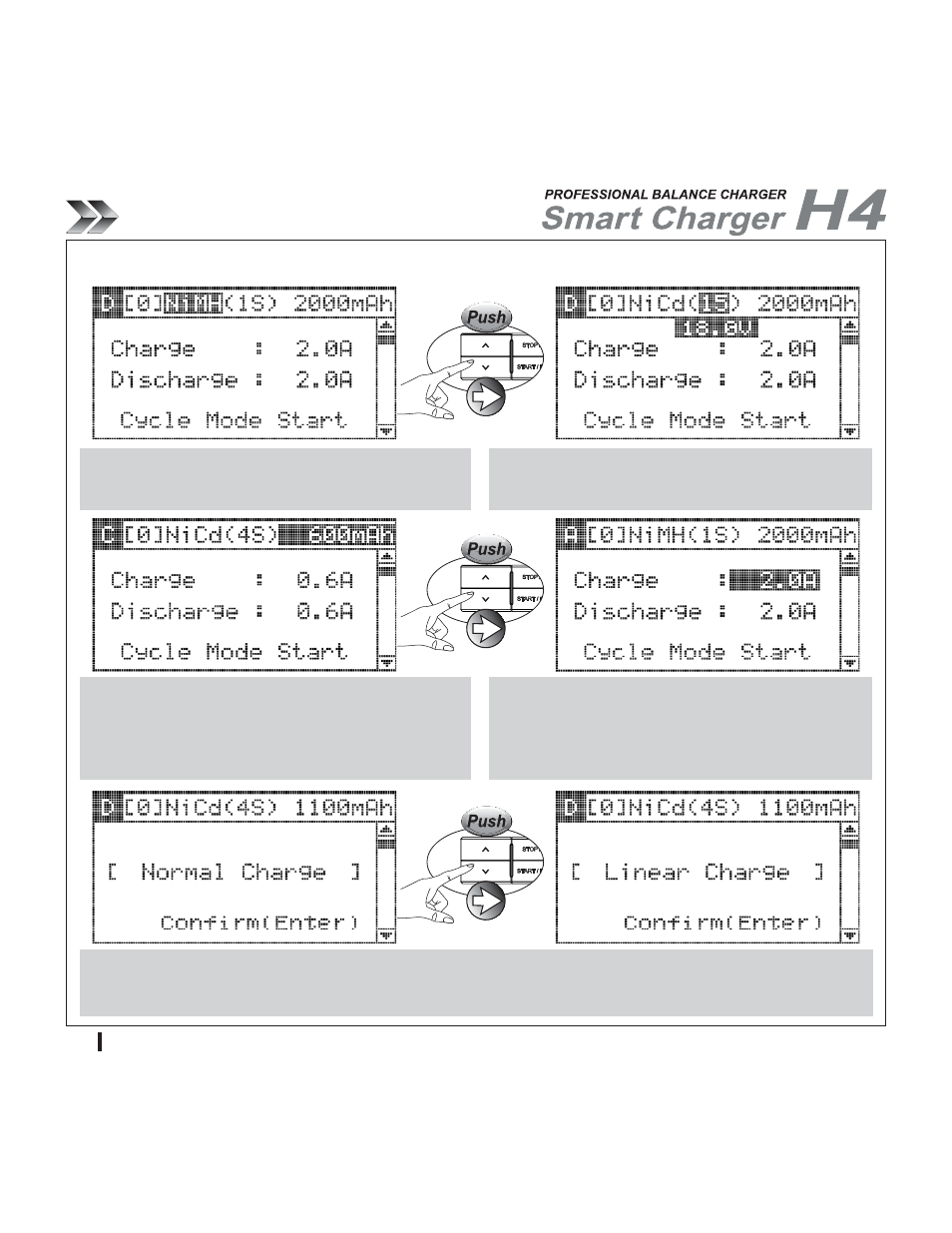

The Hitec H4 Multi Charger is designed to charge and discharge NiCd and NiMH type batteries. It is very important that you determine the exact type of battery you
are charging and set the charging parameters correctly. The following information refers to basic charging setup for more advanced setup options refer to page 23.
Please select either NiCd or NiMh depending on the type of battery type you
want to charge. If the wrong selection is made, you will damage the H4 and the
battery. Press the V button to continue.
Please set up the exact battery capacity in mAh. Since the battery capacity is
interlocked with the charging Amps (A), the charging Amps is based on a 1C
charge rate (When the battery capacity increases by 100mAh, the charging
Amps will be increased by 0.1A ). When the battery reaches the target capacity,
the charge process will terminate automatically. Press the V button to continue.
Select the exact numbers cells in your battery. Choosing the incorrect number
of cells will damage the H4 and your battery. Press the V button to continue.
Highlight the Charge or Discharge Amperage depending on what action you
want to process. Press and hold the Start button until the Normal/Linear
Charge screen appears. In menu of Battery type/capacity - When you press
‘ENTER’, charging function will activate right away.
When press ‘ESC/STOP’, menu will be moved to model memory menu.
Use the + and – buttons to toggle between selections. Once your selection is made press enter to begin the charging process.
Normal Mode : The charge will process in accordance to your battery set up. For better efſciency, the charging current will be halted every 9 minutes for 6
seconds. Linear Mode: There will be no interval time during fast charge, linear mode.
