HITEC H4: DC/DC, Four-Port Multi-Charger - Manual (Page 28)

28
Hitec
Instruction Manual
&GVCKN%JCTIG&KUEJCTIG
$CVVGT[+PHQTOCVKQPQP5ETGGP

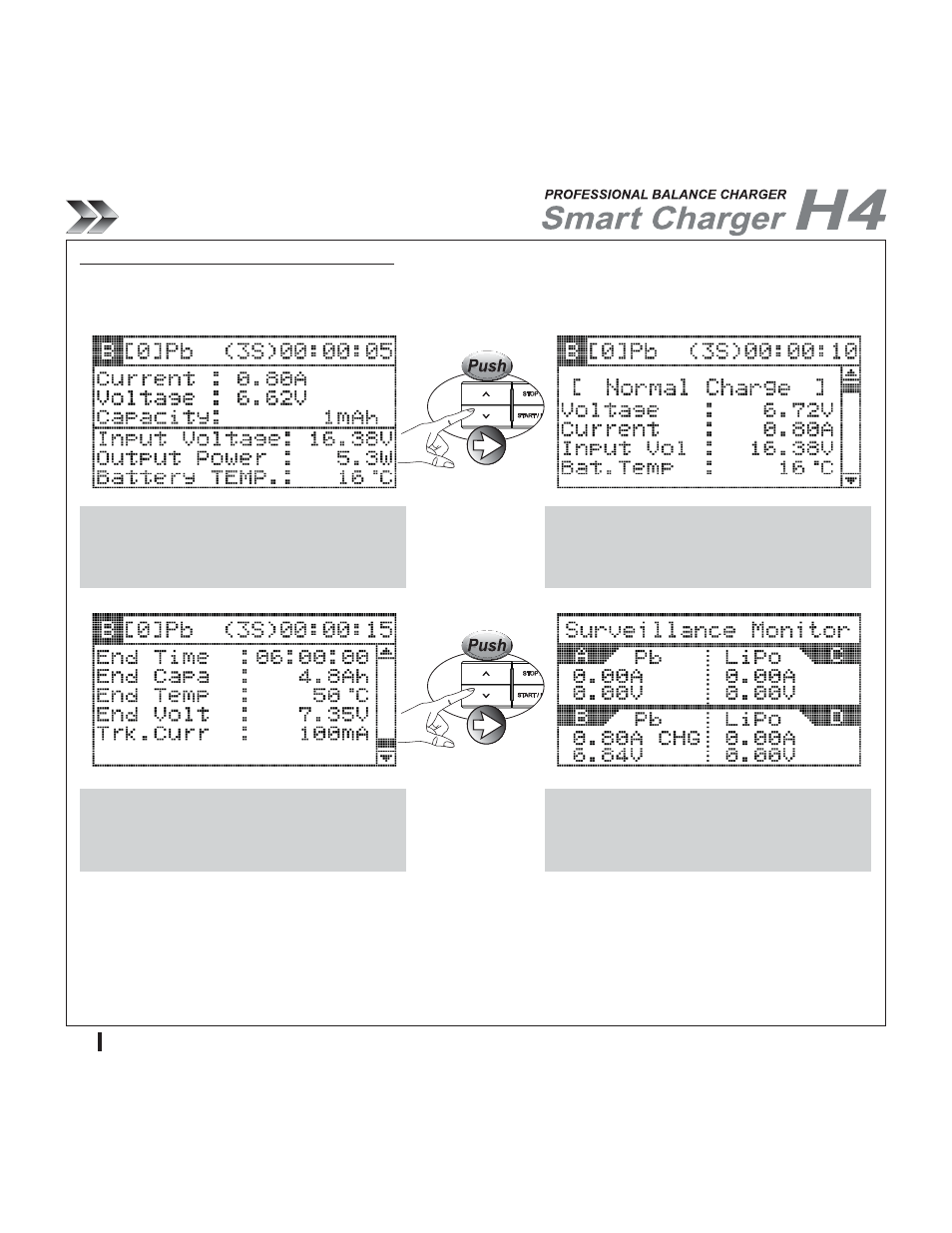

+PHQTOCVKQP&KURNC[GF&WTKPIVJG%JCTIG&KUEJCTIG2TQEGUU
The following section describes the various types of information available to you during the charge or discharge process for Lead Acid (Pb) type batteries. Use the ^
and v menu buttons to scroll through the displays.
5GEQPFCT[%JCTIG&KUEJCTIG5ETGGP
This screen displays the type of charge End Time, End Capac-
ity, End Temperature: End Voltage cutoff, and Trickle current.
/CKP%JCTIG&KUEJCTIG&KURNC[5ETGGP
The main display indicates the Type of process, Batter Voltage, Charge
/ Discharge current, Input Voltage, and batterytemperature if temp probe
is connected 5WOOCT[%JCTIG5ETGGP
This screen shows the type of charging, current voltage and charge
current of the pack along with the chargers input voltage and the packs
temperature if a temp sensor is being used.
5WTXGKNNCPEG/QPKVQT5ETGGP
The H4 can display each of the 4 channel’s information at
the same time. Displayed are each battery's voltage, charge
Amperage and charge/discharge status.
