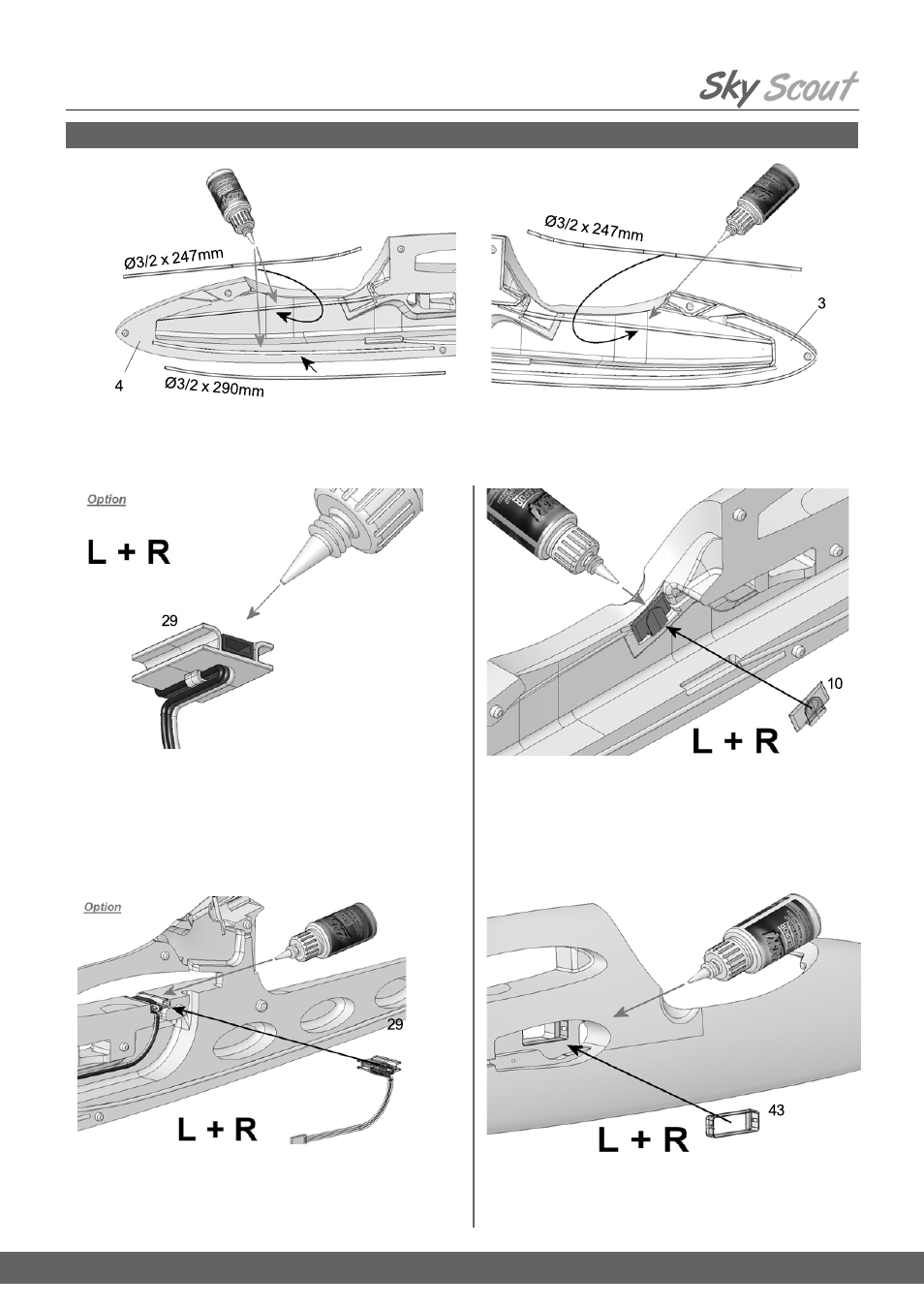

Section Two: Assembly Instructions
8. Preparing the cable holders (optional: required for
ailerons)
Glue the female plug end of a 12” (30mm) servo extension lead to the
cable holder 29, flush with the edge. Push the cable under the lug on the
underside.
10. Gluing the latch catches in place
Glue the latch catches 27 in both fuselage shells.
Once again, spray activator onto the plastic part, and allow it to air-dry.
11. Installing the servo mounts
Glue both servo frames 43 in the appropriate openings using CA Glue.
Ensure that no glue gets onto the mount lugs, as this could prevent
them holding the servos securely.
7. Reinforcing the fuselage nose
Cut the sleeves to a length of 247 mm, and glue them in the upper part ofthe two fuselage shells 3 + 4.
Cut the sleeve to a length of 290 mm and glue it in the underside of the right-hand fuselage shell 4.
9. Installing the cable holders
First spray activator on the joint surfaces of the cable holders 29. Allow
the fluid to air-dry, then glue the parts in the appropriate recesses in both
fuselage shells.
