13
Fly high with Hitec
Section Two: Assembly Instructions

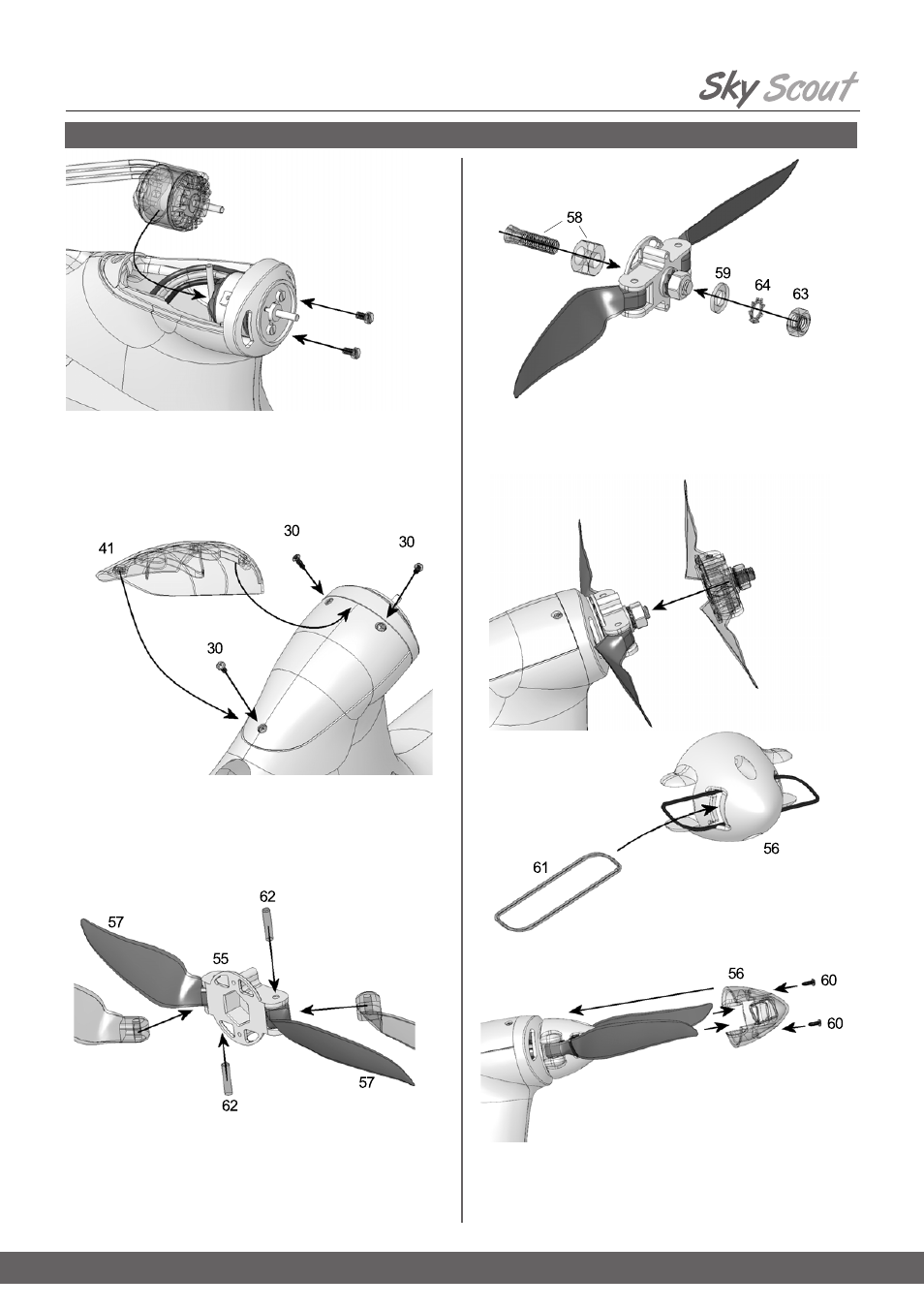

31. Installing the motor
Fix the motor in place using two M3 x 6 screws. Apply a drop of medium-
strength thread-lock fluid to the screws.
32. Installing the motor cowl
Fit the three screws 30 to secure the motor cowl 41.
33. Assembling the propeller
Attach the propeller blades 57 to the propeller boss 55 using
the two dowel pins 62.
Fold the propeller blades 57 back, and pass them through the ends of the
O-ring 61 which project from the sides of the spinner.
Take care to avoid the sharp edges of the propeller blades causing dam-
age to the O-ring 61. Fix the spinner to the propeller boss 55 using the
two pan-head self-tapping screws 60.
Fit the O-ring 61 through the spinner cone 56.
Slip the tapered collet through the driver 58 and place this assembly in
the propeller boss 55. The washer 59 and the shakeproof washer 64 are
fitted from the other side.
Screw the M6 nut 63 on the taper collet 58. Fit the taper collet 58 on the
motor shaft and tighten the nut firmly before fitting the spinner.
