2-4
USER HANDBOOK
2.2.2 Battery Status
Provides the user with the battery charge level, as shown in
previous display. This will be indicated by a battery symbol
with a bar graph showing FULL, 75%, 50% and 25%, which
is shown continually during normal operation.
2.2.3 User Name / Number Only (Option)
This configurable option, disabled by default, allows the user
to select a name or identification code, as illustrated in Fig.
2-3. This name or code will be included with all Bump,
Calibration and Event logs.
Refer to ‘USER NAMES’ in ‘CONFIGURATION HANDBOOK’
CD-ROM (Part No. 64193), for further details.

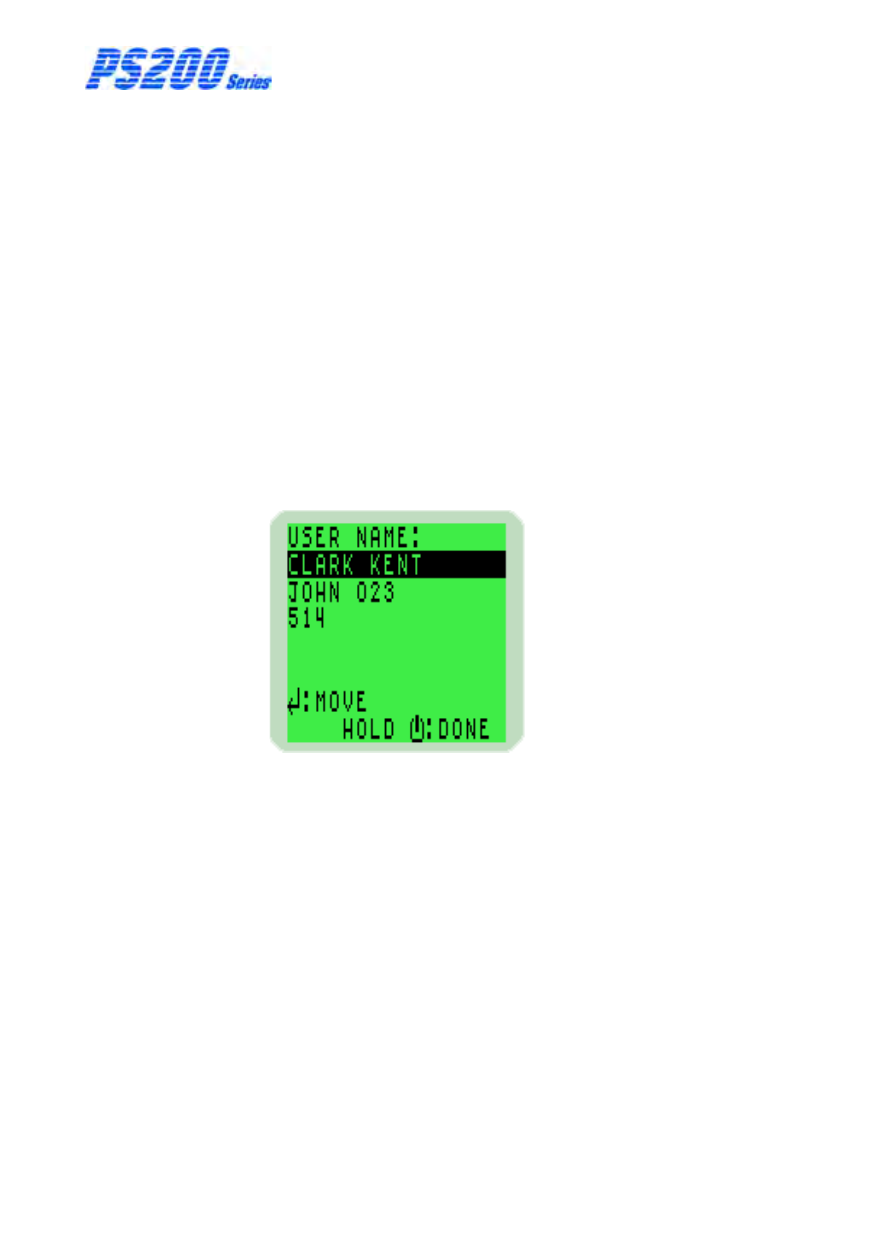

Fig. 2-3 User Name
2.2.4 ’Man Down’ (Motion Sensor) Alarm Option
The PS200 series instrument is fitted with a motion sensor.
The sensor is disabled by default but can be configured to be
either selected at start-up, or always on. The motion sensor
has a pre-alarm feature (10 seconds fixed) to alert the user
that activation is imminent and will activate the alarm if the
instrument is not moved for a pre-set time.
The time delay (30 seconds default) , before activation of the
motion alarm, is configurable and can be set as detailed in
‘CONFIGURATION HANDBOOK’. Refer to CD-ROM (Part
No. 64193) for details.
