28 Operation
IND100064-30

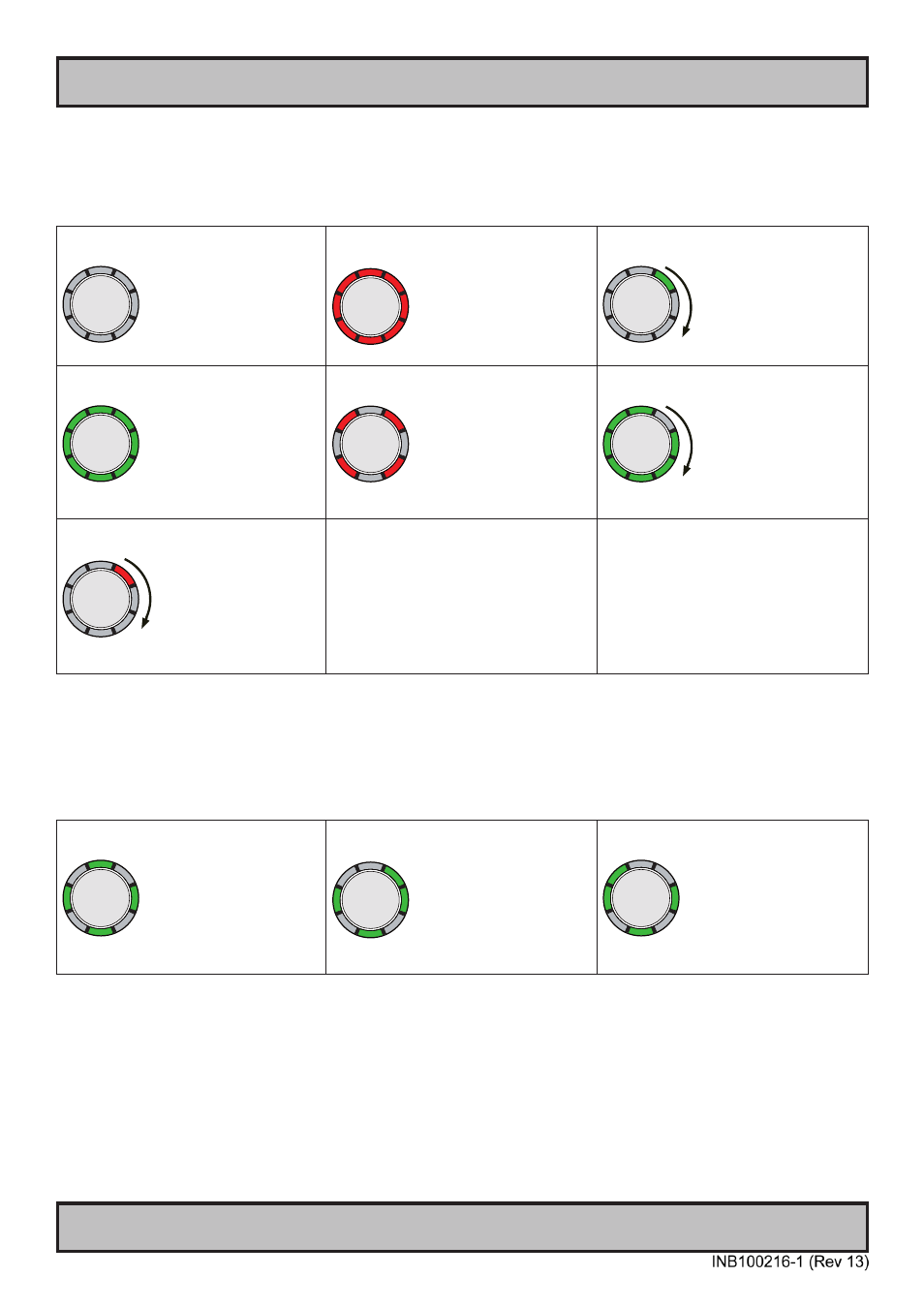

Status LED Overview
Status LED Overview
The unit features a multi purpose indicator LED status ring which through different patterns and realtime
activity gives back the status of the signal detected, power on/off, calibration, menu activity and more.
The LEDs are multicolored which either illuminate green or red, based on the activity.
OFF (No power connected)
8 LED OFF
OFF (Standby, power detected)
8 RED LED STATIC ON
ON (Signal Search)
1 GREEN LED MOVEMENT looping.
ON (Signal OK)
8 GREEN LED STATIC ON
ON (No Signal)
4 RED LED STATIC ON
ON (Menu Delay)
7 GREEN LED STATIC +
1 LED OFF MOVEMENT doing 1 loop.
OFF (Shutdown)
1 RED LED MOVES for 3 sec. After additional
3 secs, all leds turns RED.
ON (Calibrated)
4 GREEN LED STATIC ON
ON (Calibrated +)
4 GREEN LED STATIC ON + where 1 show
BRIGHTNESS INDICATION POSITION
ON (Calibrated -)
4 GREEN LED STATIC ON + where 1 show
BRIGHTNESS INDICATION POSITION
For ECDIS Calibrated Products
For units that are ECDIS calibrated from factory, the following LED pattern (Calibrated) indicates that the
backlight/brightness is at calibrated level. (Calibrated +) or (Calibrated -) means that the
brightness adjustment value is above or below the calibrated brightness level. Fine adjust the brightness
in terms of decreasing or increasing the value until the pattern for (Calibrated) is reached.
