Product Labeling
IND100077-139

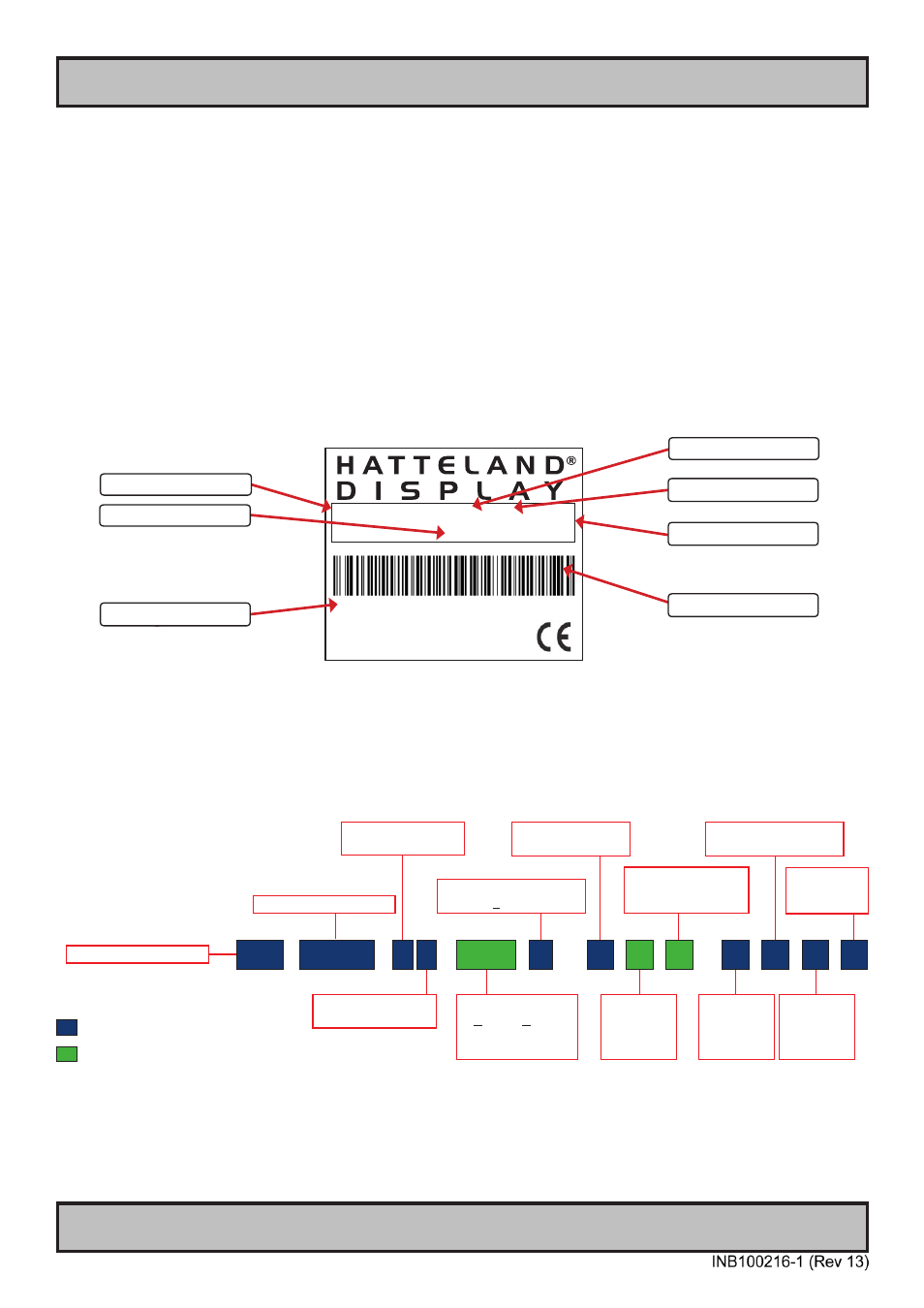

Typenumber Structure (example)
Type Number shown below may not match your actual unit, but structure ID description applies for the entire product
range. Reference: http://www.hatteland-display.com/pdflink/ind100780-2.php
Serial Number Label Layout (example)
Warranty Label
If you are to perform service on a unit still under warranty, any warranty will be void if this label show signs of removal
attempts (re-gluing) or removed completely*. This label is located on the back of the product and covers a key screw.
This is to aid service departments to determine if there has been any unauthorized service on a unit still under
warranty.
*Note, however that replacing / installing additional HDD, RAM, CPU or add-on cards is not affected by this warranty.
Quality Control (QC) Label
This label indicates that the unit is produced, tested and packed according to manufacturer’s QA specifications. It will
include a Personal ID and signature by the personnell responsible for approving the unit in production, test and
warehouse departments.
Manufacturer: Product: 100W 115VAC/60Hz
Hatteland Display Maritime 230VAC/50Hz
NORWAY Multi
Computer Date: 20110526
Serial Number:
JH 19T14 MMC-AA1-AAAA-000256
Manufacturer/Country
Product Description
Date of Production
Power Rating
Input Voltage
Type+Serial Number
Barcode (TYP+SNO)
Series 1 Panel Computers - Typenumber Overview
Page 1 of 2
IND100780-2 - Rev 04 - 29 Sep 2011
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - [email protected] - www.hatteland-display.com
This document explains the type number structure for the
Hatteland Display Series 1 Maritime Multi Computer product range
- Example standard typenumber:
JH 19T14 MMC-AA1-AAAA
- Example standard description:
19.0” Maritime Multi Computer Core2Duo 1.5GHz 30GB SSD 2x1GB RAM WinOS RAL9011 AC Buttons (IP66)
= Locked elements for factory standards.
= Custom/options - Can be customized by customer.
TFT Panel Size in inches
Product Range ID
PCB Electronics
Revision ID
Abbreviation for
Maritime Multi or
reserved for customer
company name ID
Product Type ID
for Panel Computer Range
J H 1 9 T 1 M M C -
Power Input ID
AC or DC / AC & DC
Frame Color
or reserved
for customer
specifi c ID
1
Standard Confi gs or
reserved for customer
specifi c ID
-
Frame or
Mechanical
Design ID
Optical Enhancement ID
User Control
Functionality
ID
Touch Screen
Technology ID
TFT Panel Generation
Revision ID
4 A A A A A A
Series 1 Panel Computers - Typenumber Overview
Page 1 of 2
IND100780-2 - Rev 04 - 29 Sep 2011
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - [email protected] - www.hatteland-display.com
This document explains the type number structure for the
Hatteland Display Series 1 Maritime Multi Computer product range
- Example standard typenumber:
JH 19T14 MMC-AA1-AAAA
- Example standard description:
19.0” Maritime Multi Computer Core2Duo 1.5GHz 30GB SSD 2x1GB RAM WinOS RAL9011 AC Buttons (IP66)
= Locked elements for factory standards.
= Custom/options - Can be customized by customer.
TFT Panel Size in inches
Product Range ID
PCB Electronics
Revision ID
Abbreviation for
Maritime Multi or
reserved for customer
company name ID
Product Type ID
for Panel Computer Range
J H 1 9 T 1 M M C -
Power Input ID
AC or DC / AC & DC
Frame Color
or reserved
for customer
specifi c ID
1
Standard Confi gs or
reserved for customer
specifi c ID
-
Frame or
Mechanical
Design ID
Optical Enhancement ID
User Control
Functionality
ID
Touch Screen
Technology ID
TFT Panel Generation
Revision ID
4 A A A A A A
