General Installation Recommendations
Installation

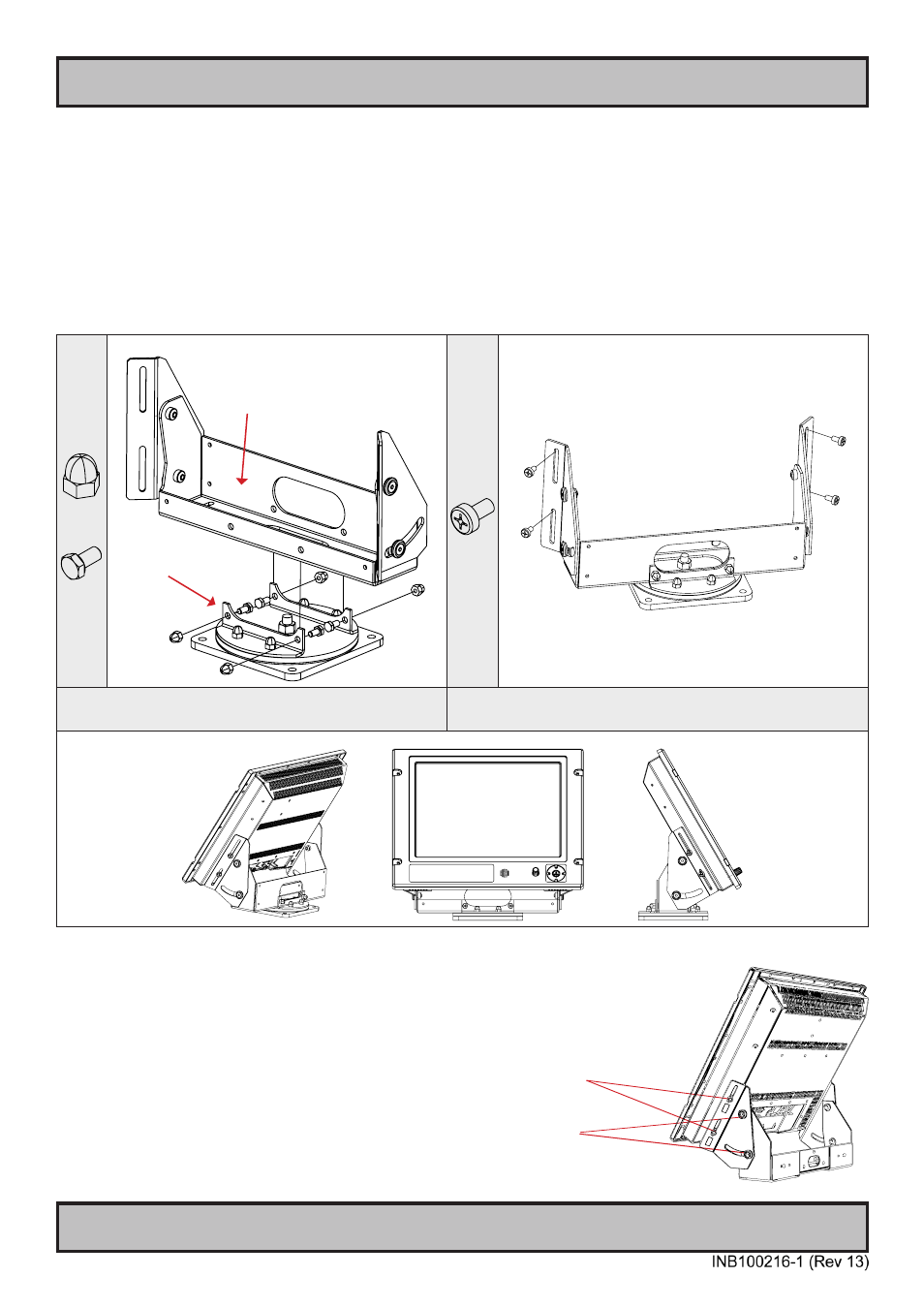

Rotary Bracket and Mounting Bracket (15 inch) combined assembling
Illustration shows “Mounting Bracket JH 15TBR STD-A1” and “Rotary Bracket JH 15TRO STD-A1 (15 inch only)”
combined. Both brackets are available separately and are delivered as such. Both brackets contains several parts (as
indicated). The table below illustrates a complete mounting of these two and you have to disassemble the “Mounting
Bracket” prior to combining the two brackets together. Use the provided bolts included in the package to assemble
them. You must provide your own bolts to secure the completed unit (FIG 6) to a table / desktop. Recommended size
is: M10 and minimum 30mm in length. A stand-alone “Rotary Bracket” can not be mounted to a Display or Panel
Computer unit without the “Mounting Bracket” as base first. For more drawings and measurements of the two
brackets, please refer to User Manual.
4 pcs
4 pcs
Mounting
Bracket
Rotary
Bracket
1
4 pcs
2
Dome Nut M6, ISO7043, Black
Screw M6x12mm Din933 Black 145 060x012 ZBA
Prepare the screw bolts for mounting onto 15 inch unit.
If mounting Mounting Bracket without Rotary Bracket
Note that the length of bolts should not exceed 12mm (ref: #1 and 5). Using any longer is
not possible due to mechanical design inside which are designed to protect the
electronics. Review also technical drawings chapter in the manual for
measurements and dimensions of brackets.
# 1: Mount bolts on each side.
Make adjustments before securing the bolts.
# 2: Adjust the tilting angle and secure the bolts.
1
2
