The meters are provided with a black anodized aluminum body,
front and back panels in shockproof ABS plastic and a transparent
splash-proof front cover.

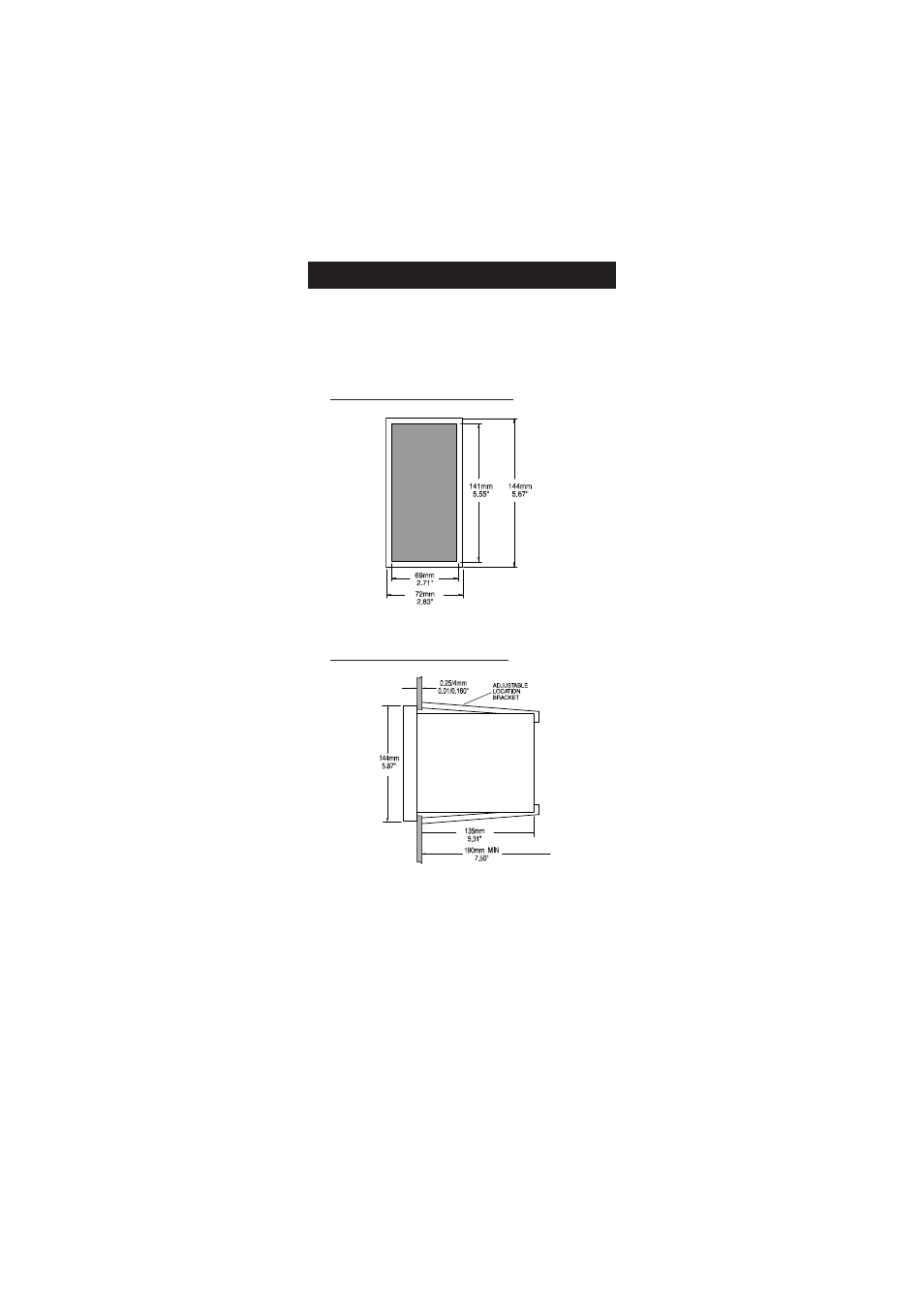

Front view of the panel-mounted unit
The dimensions show the cutout size for the installation.
Side view of the panel-mounted unit
Adjustable location brackets (supplied with the meter) allow the
indicator to slide into the cutout and will hold the unit securely in
place. 190 mm (7.50") is the minimum space required to install the
indicator with complete wiring.
