Hall Research U97-Ultra-2B-S User Manual
Page 14
Console Extender
15

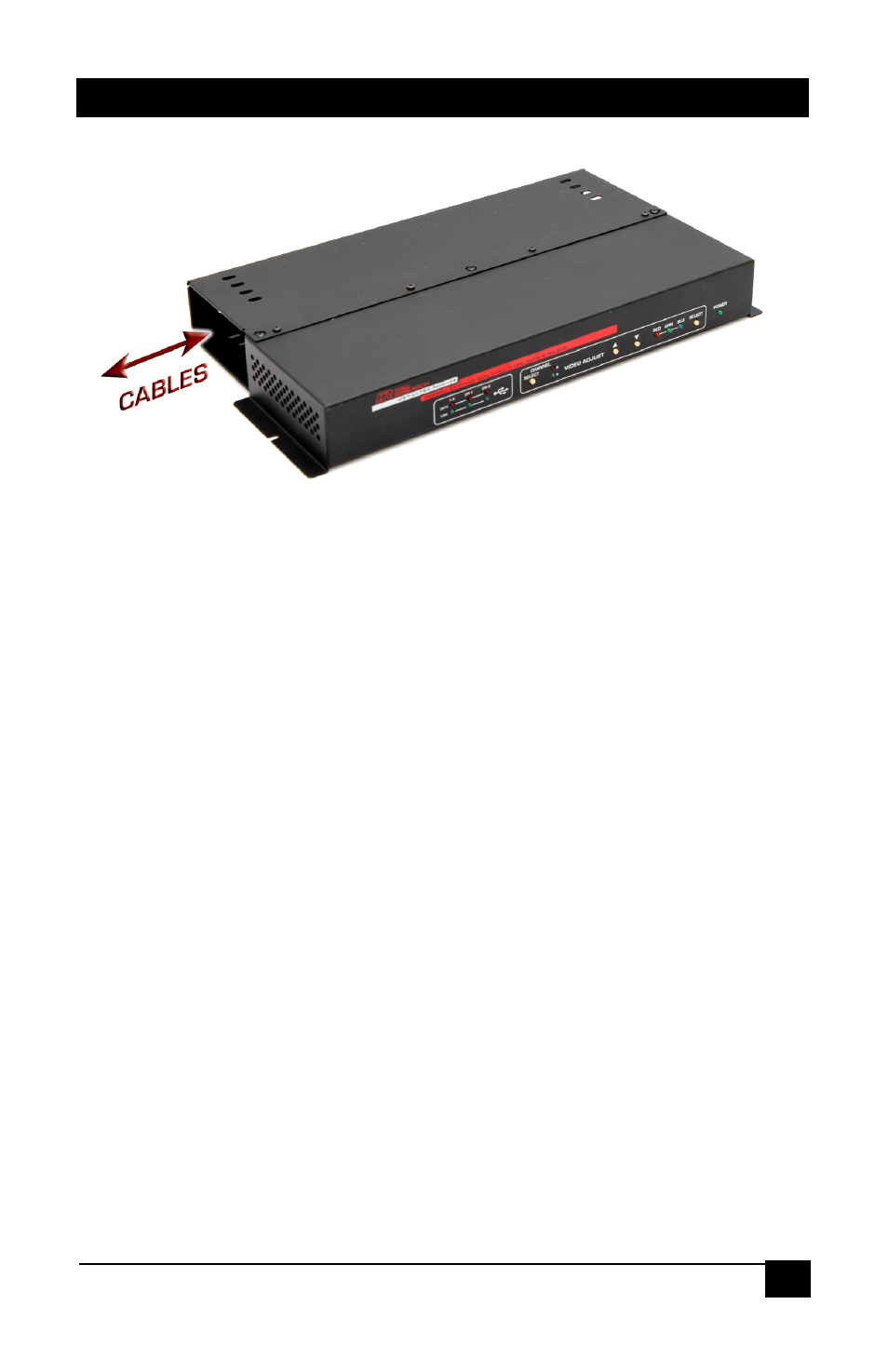

Cables can enter and leave from either end
You can use the slotted holes at either end of the unit to zip-tie the cables in place.
Once the cover is firmly attached and cables zip-tied in place, you can screw the entire
assembly to a suitable base using the L flanges on either side of the unit.
Make sure that the front panel is accessible for skew and or video adjustments as
needed.
