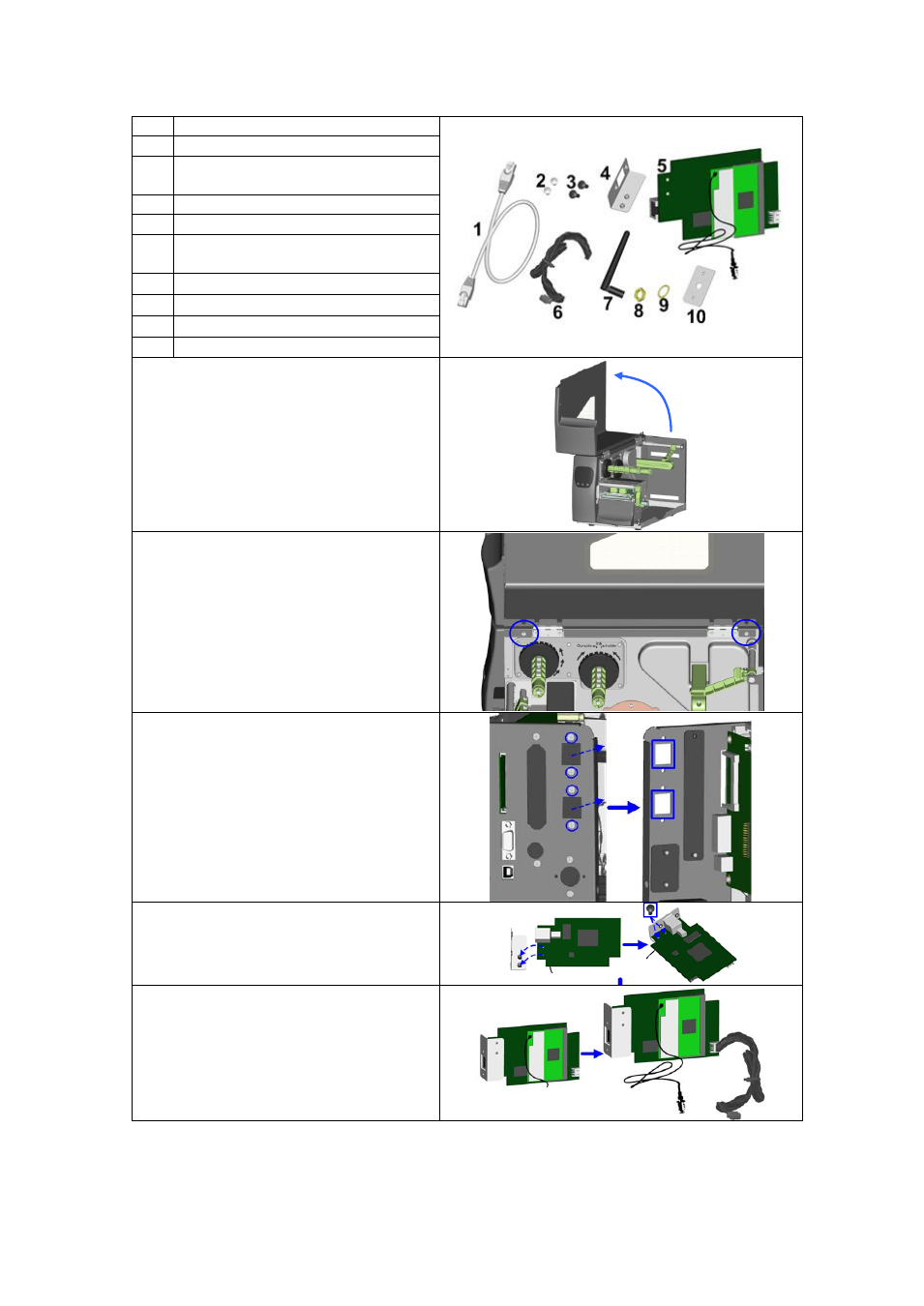

4-9. Installing the WLAN module – EZ2000 Plus / EZ6000 Plus
1 Ethernet cable, 1.8 m
2 Fastening screws (set of 2)
3
Screws for Ethernet module (set
of 2)
4 Bracket
5 WLAN module
6
Connection cable (module to
motherboard)
7 WLAN antenna
8 Nut
9 Washer
10 Antenna bracket
2. Make sure that the printer is
switched off and the power cord
disconnected from the printer.
Place the printer on a clean flat
surface and open the printer
cover.
13. Remove the left-hand part of the
printer housing.
14. Remove the covers from the
network interface and antenna
jack.
15. Secure the Ethernet module on
the bracket.
16. Now plug the cable connector
into the network card socket.
