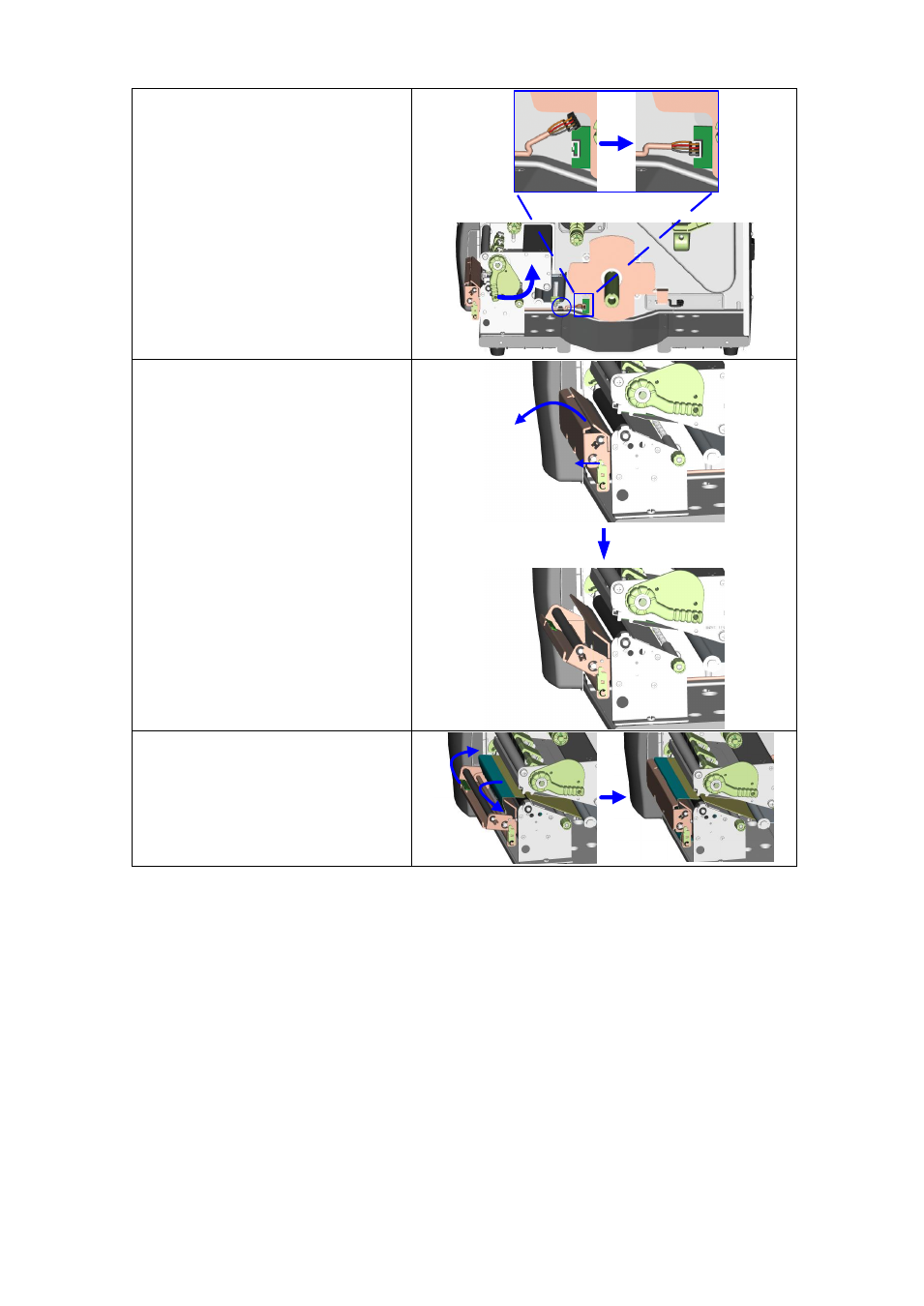

5. Connect the dispenser cable
connector to the rewinder
jack.
6. Route the connection cable
along the bottom of the printer
housing using the cable clips.
7. Pull out the print head release
lever and turn it anticlockwise
to a top right position.
8. Using the lever shown in the
illustration (1), fold out the
dispenser module in the
direction indicated by the
arrow (2).
1
2
9. Strip a few labels off the label
liner (approx. 400 mm) and
pass the label liner through the
dispenser module.
10. Close the dispenser module
again.
