7 221854B
1 General Information
Diagram 1.2
9055

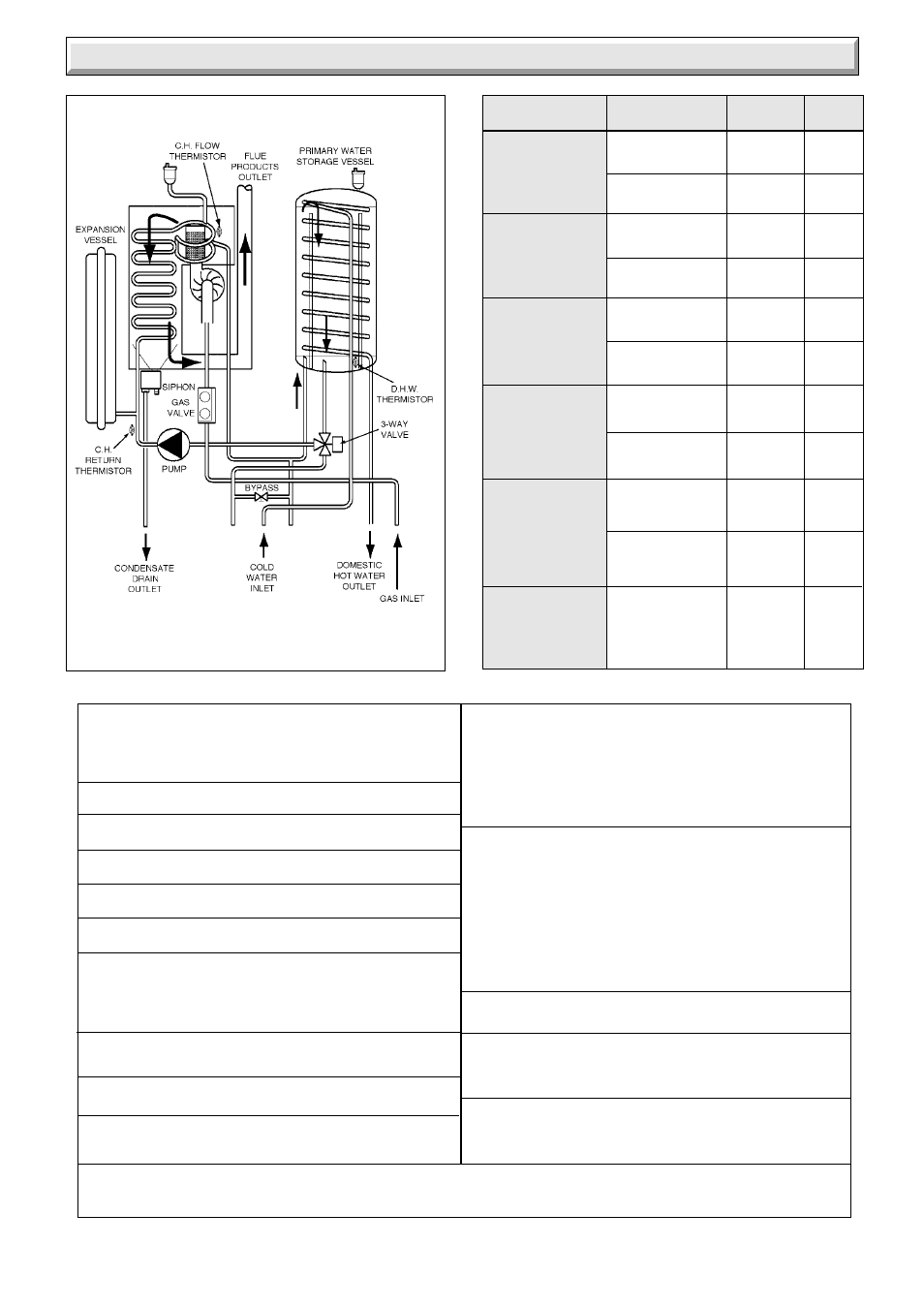

SCHEMATIC LAYOUT OF BOILER
■ For larger systems use an additional expansion vessel.
● Ball valves are fitted in water and gas connections, plus a drain point on all water connections.
Lift Weight 64kg (141lb)
Total Weight (packed) 68kg (150lb)
Total Weight (installed) 86kg (189lb)
● Gas connection Rc 1 /
2
( 1 /
2
in BSPT)
● Heating and return 22mm compression
● Domestic hot water 15mm compression
Safety valve Preset 3bar (43.5lbf/in 2 )
Safety valve discharge 15mm copper
80 100
Water content (heat exch) 2.7 ltr (0.59 gall) 2.7 ltr (0.59 gall)
Water content (primary store) 13 ltr (2.86 gall) 12.4 ltr (2.7 gall)
Water content (domestic) 1.3 ltr (0.29 gall) 2 ltr (0.44 gall)
■ Expansion vessel capacity 7 litres (1.54 gallons)
Charge pressure 0.5bar (7.3lbf/in 2 )
Heating system 0.7bar (10.1lbf/in 2 )
minimum pressure
Domestic hot water flow rate
80 100
temp rise 30 0 C 11.4l/min (2.5gall/min) 13.3l/min (2.9gall/min)
35 0 C 9.8l/min (2.2gall/min) 11.4l/min (2.5gall/min)
Maximum flow temperature 65 0 C
Minimum working pressure 0.1bar
■ Maximum heating 130 litres
system water (28.6 gallons)
content using at 75 0 C
fitted expansion average system
vessel, pressurised temperature
at 1bar.
Electrical supply 230V~50Hz
Electrical rating 115W fused 3A
TABLE 2
D.H.W Max. 8bar
working pressure (150lbf/in 2 )
IP classification IP40
Internal Fuse rating 1) Type 2AF
2) Type 2AF
3) Type 3AT
NOMINAL kW 80 27.5 27.5 8.0
HEAT Btu/h 93,830 93,830 27,266
INPUT kW
100 32.5 32.5 11.7
GROSS Btu/h 110,890 110,890 39,920
NOMINAL kW 80 24.5 24.5 6.8
HEAT Btu/h 83,600 83,600 23,200
OUTPUT kW
100 28.6 28.6 10.0
Btu/h 97,583 97,583 34,120
COND. kW 80 25.5 25.5 7.7
HEAT Btu/h 87,000 87,000 26,170
OUTPUT kW
100 30.0 30.0 11.3
Btu/h 102,360 102,360 38,556
BURNER mbar 80 -4.5 -4.5 -0.5
MANIFOLD wg -1.8 -1.8 -0.2
SUCTION
PRESSURE
mbar 100 -4.8 -4.8 -0.5
HOT(APPROX) wg -1.92 -1.92 -0.2
80 9.2-9.6 9.2-9.6 9.2-9.6
BURNER 9.0-9.4 9.0-9.4 9.0-9.4
%CO
2
100 9.2-9.6 9.2-9.6 9.2-9.6
9.0-9.4 9.0-9.4 9.0-9.4
m 3 /h 80 2.6 2.6 0.7
ft 3 /h 91.8 91.8 24.7
TABLE 1 C.H. Max D.H.W.Max MIN
CASING
DOOR ON
CASING
DOOR OFF
CASING
DOOR ON
CASING
DOOR OFF
m 3 /h 100 2.9 2.9 1.0
ft 3 /h 102.4 102.4 35.3
APPROX.
GAS RATE
