24

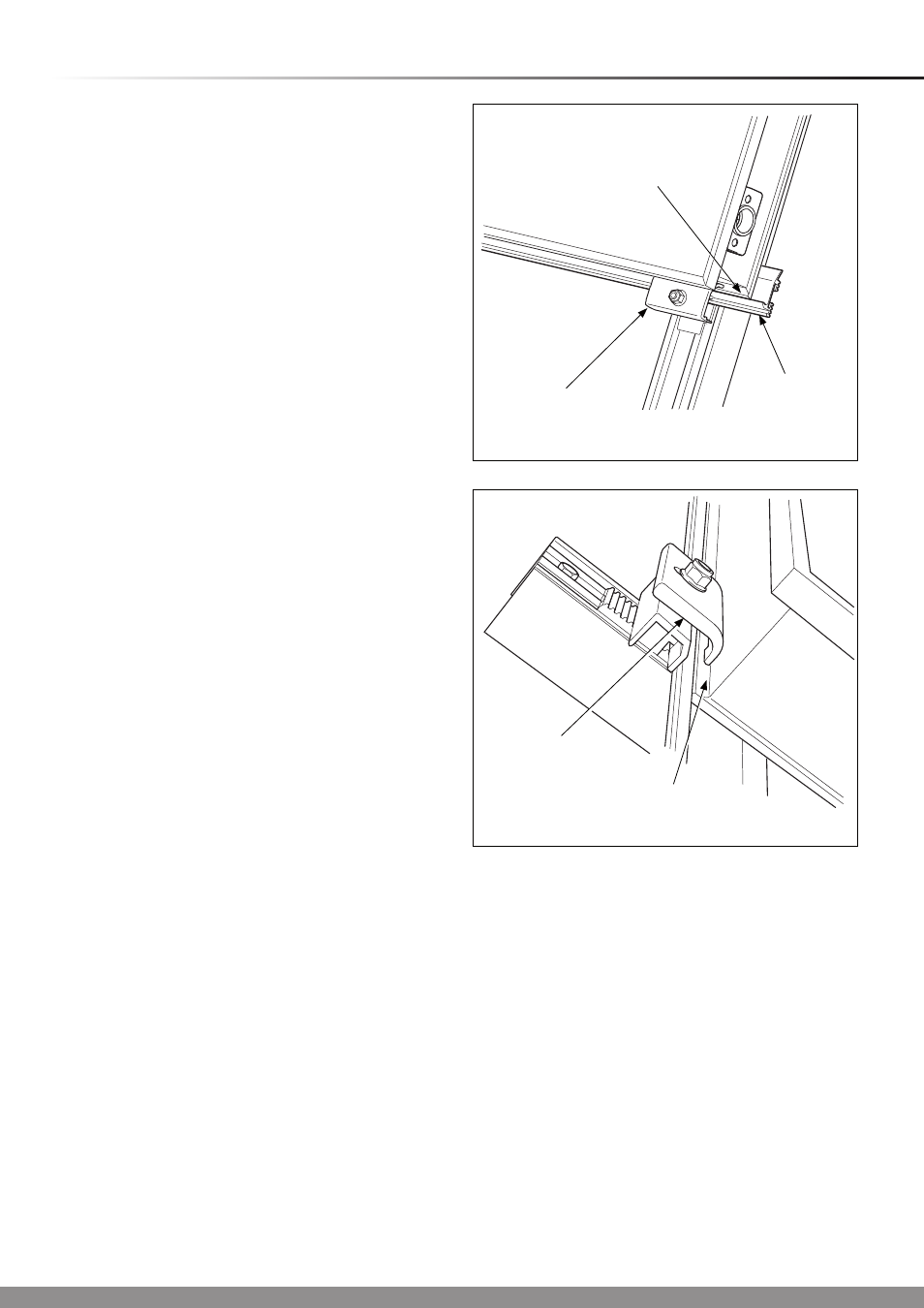

Diagram 9.8
15001
CLAMPING
ASSEMBLY
COLLECTOR
EDGE
9 Flat Surface Installation - Horizontal Collector
Place the collector with the lower edge in the section of the
mounting rail, see diagram 9.7.
Make sure that the upper part of the clamping assembly is
above the collector edge.
Slide the upper mounting rail until it is flush with the collector.
Make sure that the upper part of the clamping assembly is
above the collector edge, see diagram 9.8.
Tighten the lower clamping assemblies with the socket/
combination wrench (SW13).
Diagram 9.7
15404
CLAMPING
ASSEMBLY
COLLECTOR
LOWER EDGE
LOWER
MOUNTING
RAIL
