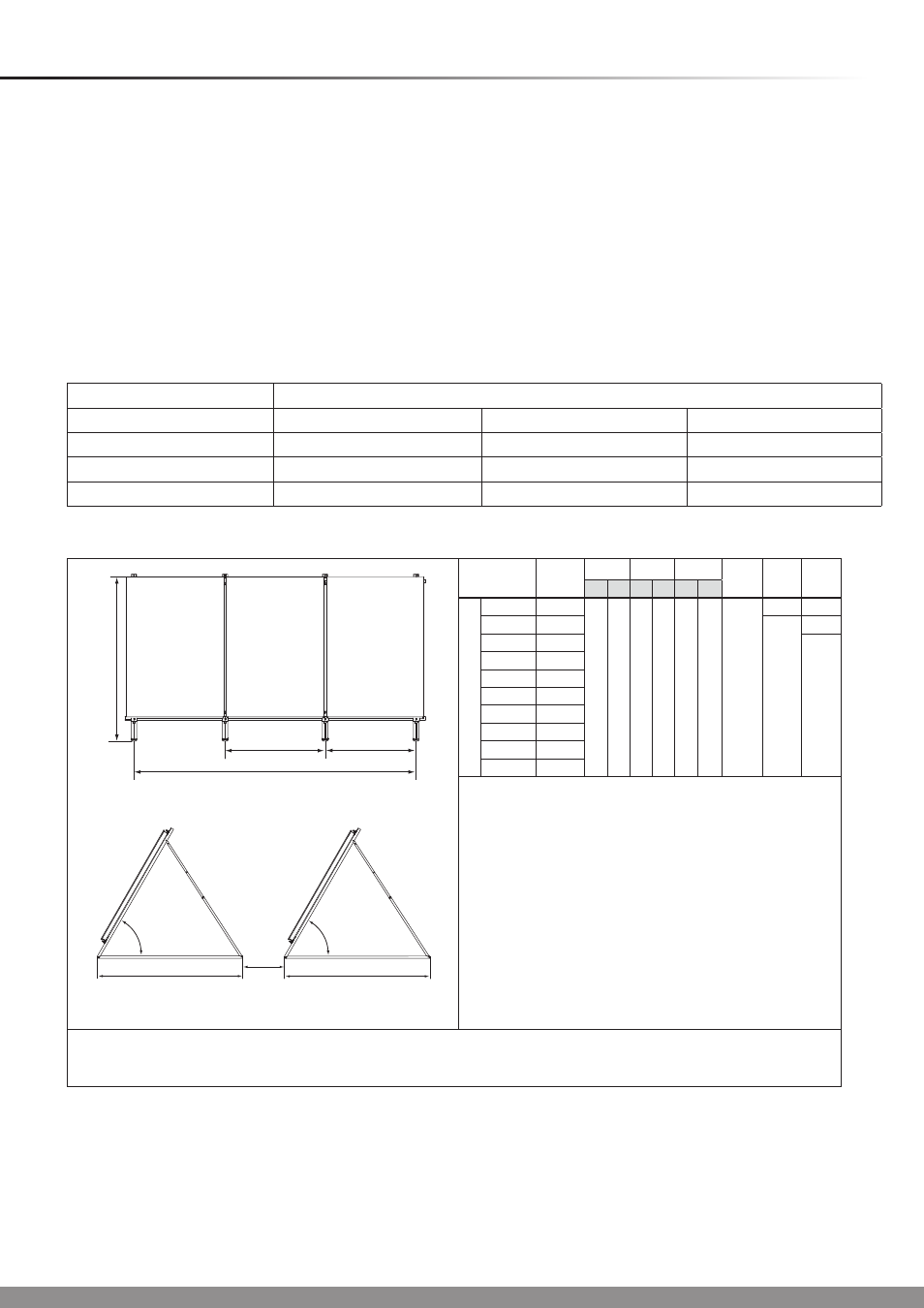

5 Flat Surface Installation - Vertical Collector
Height above ground
Angle 0-10 m 10-18 m 18-25 m
30° 159 Kgs 178 Kgs 197 Kgs
45° 225 Kgs 252 Kgs 279 Kgs
60° 276 Kgs 309 Kgs 342 Kgs
Table 5.1
A
B
D E
Number of
collectors
A
30° 45° 60°
C D A
B F B F B F
1* 1136
1283 4400 1740 6100 2080 7200 2357
- -
2 2300
1150
-
3 3563
1263
4 4826
5 6089
6 7352
7 8615
8 9878
9 11141
10 12404
C C
F
* Possible only with 4 offset gravel trays.
Table 5.2
5.1 Flat surface installation
IMPORTANT
● Do not remove the protection film until the system is to be
commissioned.
● With due regard to the complete weight of the solar
collector system, (refer to technical data) ensure the
surface is flat and has a sufficient load carrying capacity.
● Ensure that a roof surface is adequately protected and
watertight.
The flat surface frames allow the collectors to be installed at
an angle of 30°, 45° or 60°.
The mounting rails can be adjusted to compensate for floor
irregularities.
5.2 Ballast and frame weight
Define the necessary load required to secure the frame and
collector, refer to Table 5.1.
For the required space and the distances among collectors,
refer to Table 5.2.
(30° 45° 60°) (30° 45° 60°)
