13

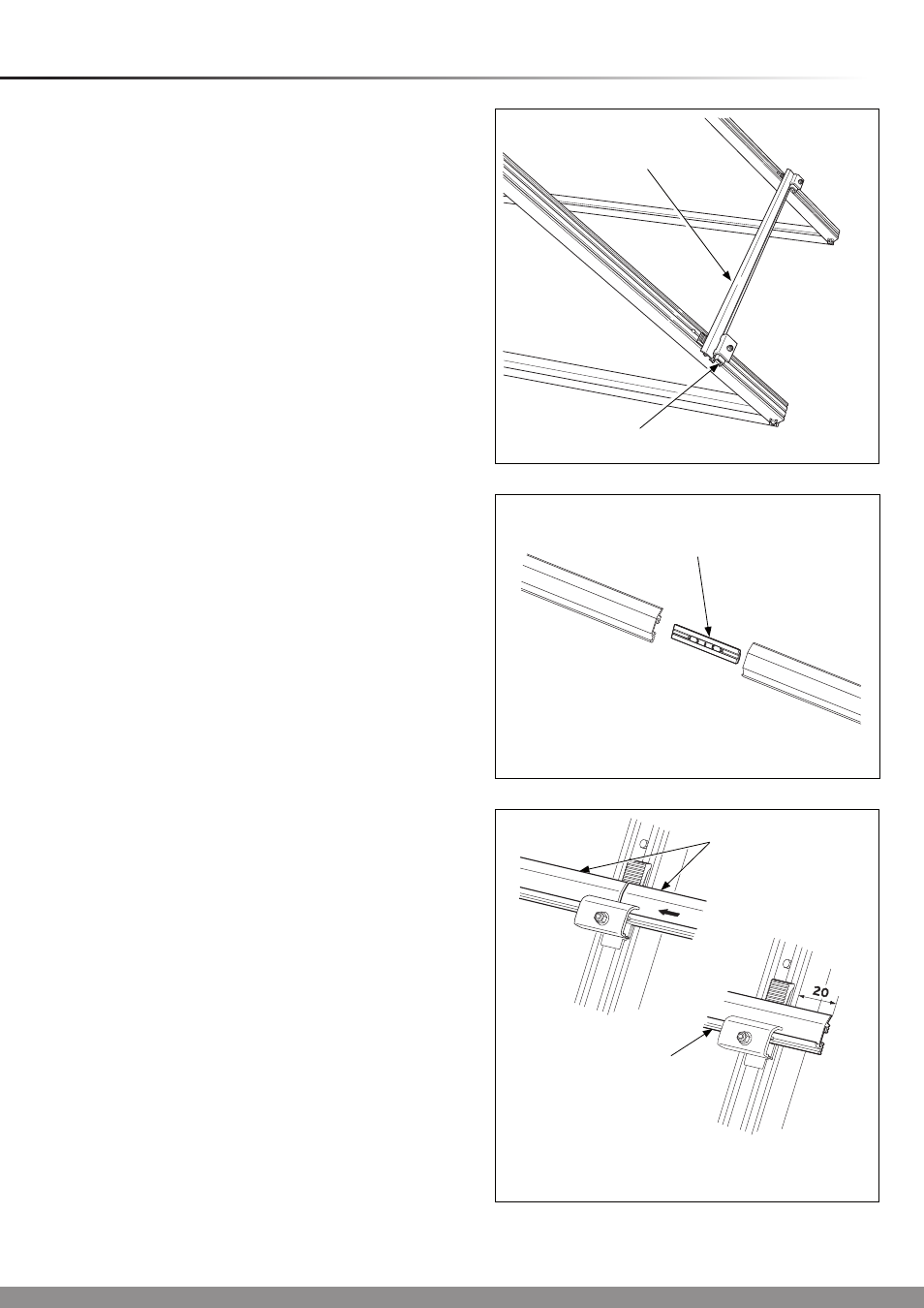

Diagram 5.5
15000
5 Flat Surface Installation - Vertical Collector
Fix the lower mounting rail with the frame clamping assembly,
see diagram 5.5.
If multiple collectors are mounted, the mounting rails meet in
the centre of the clamping assemblies, see diagram 5.6.
On the first and last frame, the mounting rails can be
projected by 20mm.
Insert the mounting rail connector into the mounting rails, see
diagram 5.6
Position another frame (see diagrams 5.1 to 5.3).
Join the mounting rails and fix them to the frame clamping
assemblies as shown in diagram 5.7.
Compensate any difference in height by moving the clamping
assembly.
LOWER
MOUNTING RAIL
CLAMPING
ASSEMBLY
Diagram 5.7
15003
MOUNTING
RAIL
MOUNTING RAIL
(First and last frame only)
Diagram 5.6
15004
MOUNTING RAIL
CONNECTOR
