Glow-worm Clearly Solar - A-Frame - Manual (Page 16)

16
5 Flat Surface Installation - Vertical Collector

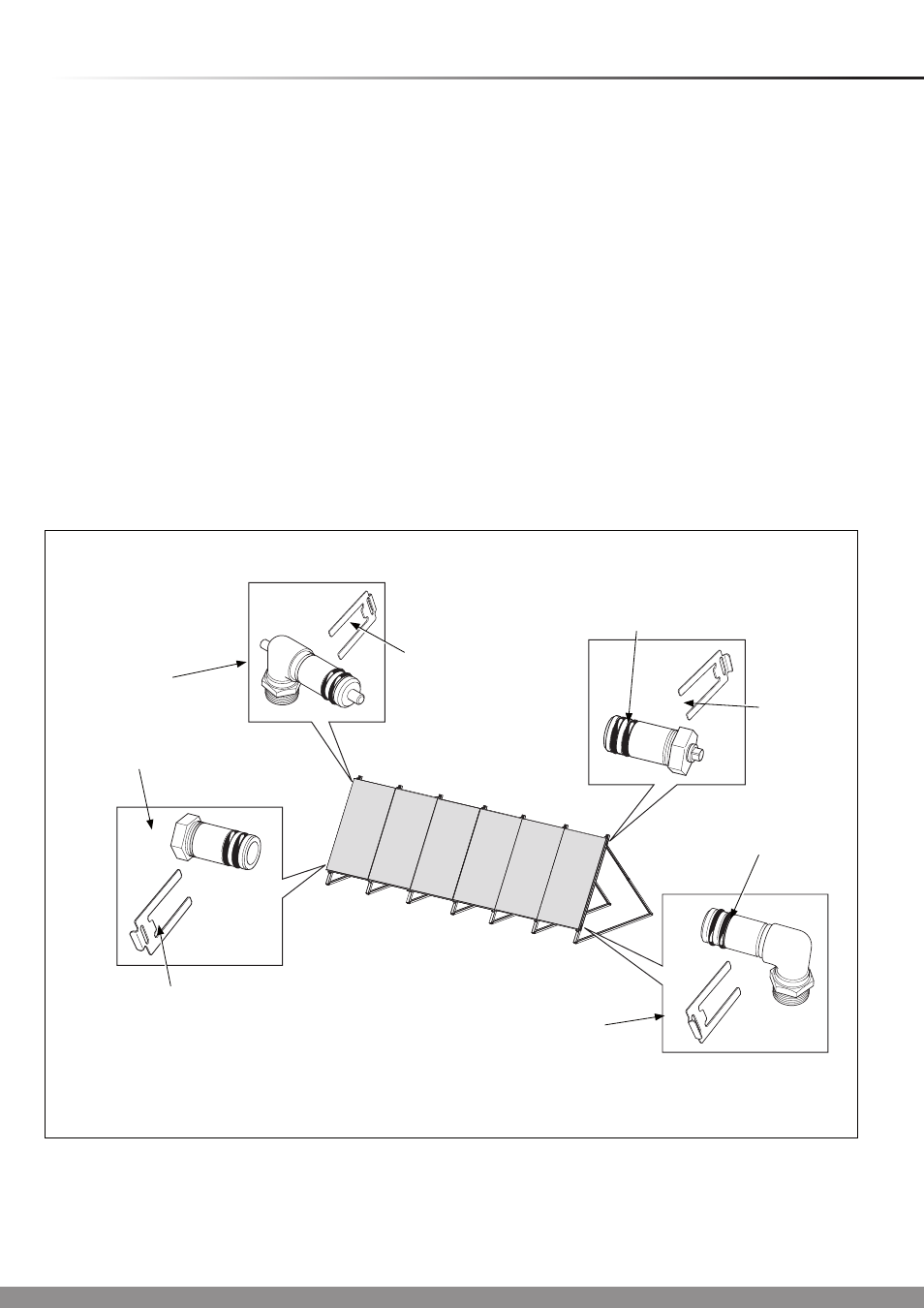

Diagram 5.10
15008
FLOW
ELBOW
(with sensor)
SECURING
CLIP
RETURN
ELBOW (inlet)
SECURING
CLIP
SECURING
CLIP
UPPER PLUG
WITH VENT
SECURING
CLIP
LOWER PLUG
Ensure that all of the following steps have been performed:-
- All the connections have been fixed with securing clips.
- All hydraulic connections laid properly.
- The collector sensor has been connected.
- The collector is connected to a lightning protection device.
- A pressure test.
- All insulation is intact.
NOTE: After initial commissioning and according to the
season, high outside temperature oscillations can cause
condensation in the collector, this is normal.
DIAGONAL FLOW
6 and up to 12 Collectors
