2 When using the SURR.BACK/ZONE2 amplifier as the ZONE2.
• ZONE2 speaker out can be used when “ZONE2” is selected at System Setup Menu “Power Amp Assign”. In this case, Surround Back
PREOUT and speaker out cannot be used for MAIN ZONE.
• The AVR-2805/985 is equipped with preout terminals for which the volume is adjustable (ZONE2) and speaker out terminals for which the
volume is adjustable (ZONE2) and composite video output terminals as the ZONE2 output terminals.
This unit
DVD player
Input
RC-616
Monitor
Monitor
MAIN ZONE 5.1-channel systems
ZONE2 SPEAKER OUT
ZONE 2 VIDEO OUT
SYSTEM REMOTE
CONTROL UNIT RC-974
C
FL FR
SL
SW
SR
B
RC-617
PROGRAMMABLE
REMOTE CONTROL UNIT
ZONE 2
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE AUDIO signal cable
SPEAKER cable
* Refer to CONNECTIONS on pages 6 to 13.
ZONE2 VIDEO signal cable

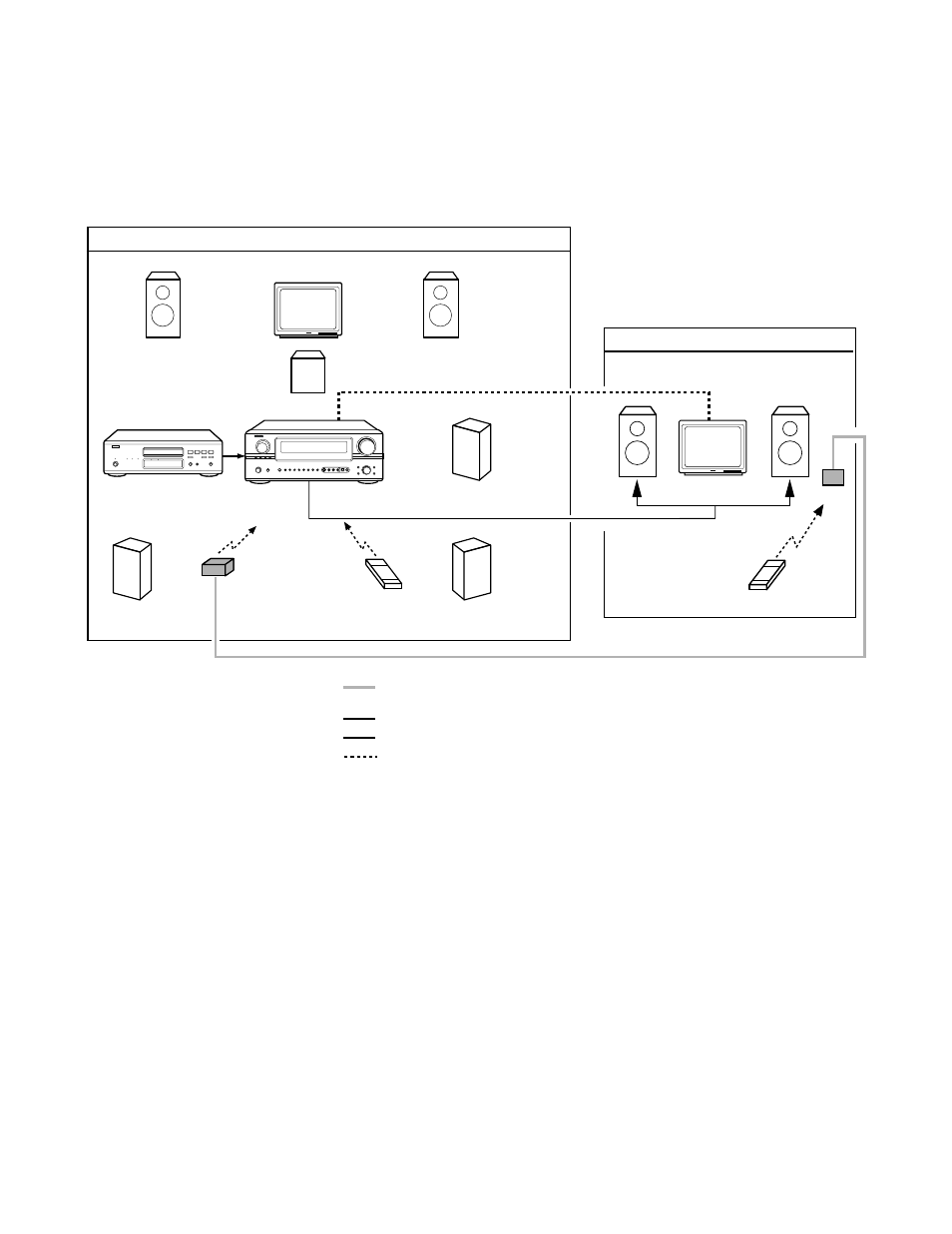

(1) System configuration and connections example.
Using this unit’s internal amplifier as the ZONE2.
