15
6 PART NAMES AND FUNCTIONS

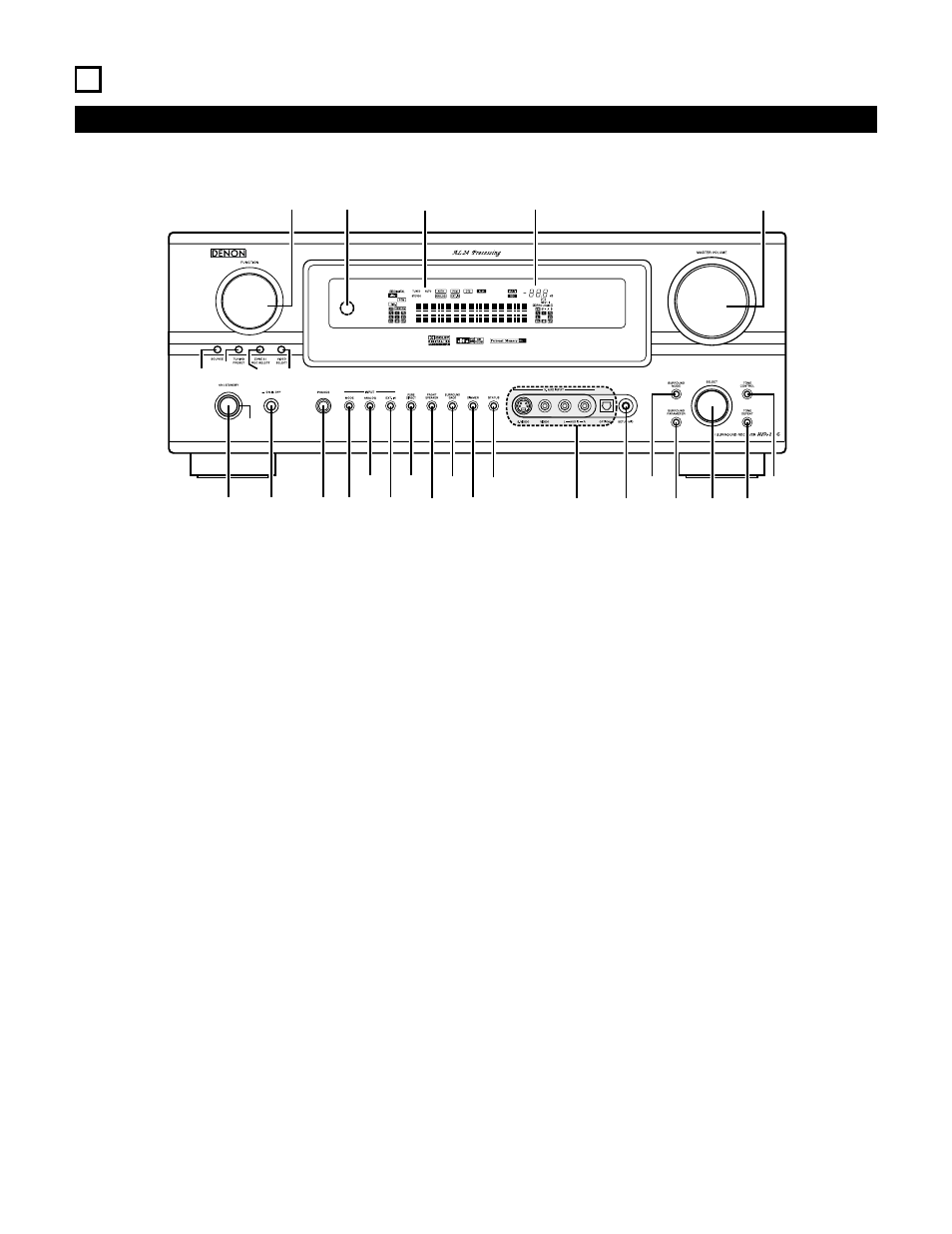

Front Panel
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
e r
y i
t u o
!0
q
w
!1
!2 !5
!3 !4 !7 !6
@2 @1 @3
!8
!9
@0 @4
@5
@7
@8 @6
q
Power ON/STANDBY switch....................................................(58)
w
POWER indicator......................................................................(58)
e
Power switch .....................................................................(58, 85)
r
Headphone jack (PHONES) ......................................................(63)
t
INPUT MODE button ...............................................................(59)
y
ANALOG button .......................................................................(59)
u
EXT. IN button ....................................................................(59, 61)
i
PURE DIRECT button ...............................................................(62)
o
FRONT SPEAKER button .........................................................(58)
!0
SURROUND BACK button .......................................................(73)
!1
DIMMER button .......................................................................(64)
!2
STATUS button .........................................................................(64)
!3
V.AUX input jacks .....................................................................(12)
!4
SETUP MIC jack .......................................................................(21)
!5
SURROUND MODE button......................................................(78)
!6
SURROUND PARAMETER button...................................(70 ~ 80)
!7
SELECT knob...........................................(60, 63, 69 ~ 74, 78, 80)
!8
TONE DEFEAT button ..............................................................(63)
!9
TONE CONTROL button ....................................................(63, 80)
@0
MASTER VOLUME control ......................................................(60)
@1
MASTER VOLUME indicator ....................................................(60)
@2
Display
@3
Remote control sensor (REMOTE SENSOR) ...........................(48)
@4
FUNCTION knob ........................................(59, 67, 72, 74, 83, 85)
@5
VIDEO SELECT button .............................................................(63)
@6
ZONE2/REC SELECT button ..............................................(64, 67)
@7
TUNING PRESET button ..........................................................(85)
@8
SOURCE button .......................................................................(59)
