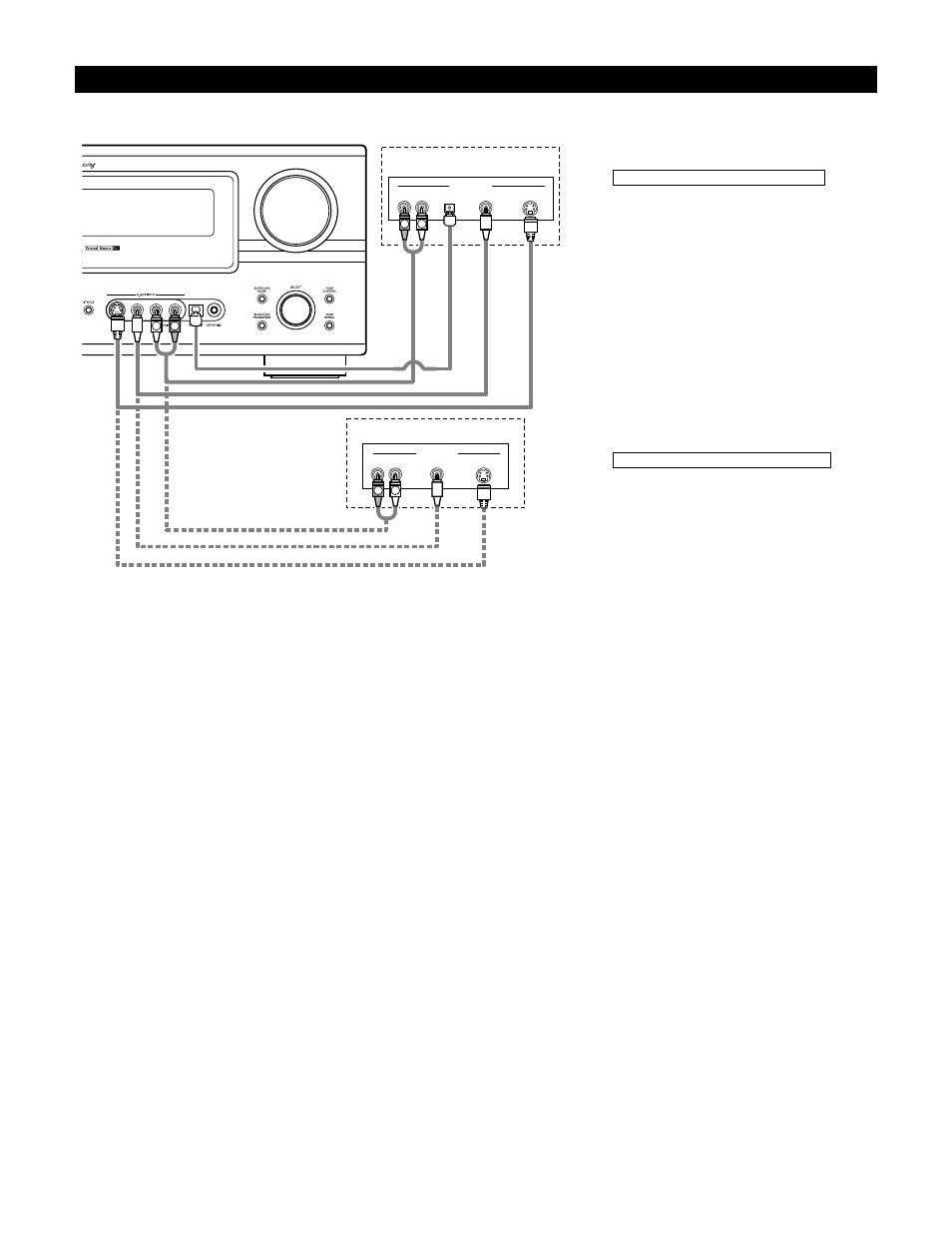

Connecting the video component equipped with V. AUX jacks
To connect the video signal, connect using a 75
Ω
/ohms video signal cable cord.
MASTER VOLUME
R VIDEO OUT S-VIDEO OUT OPTICAL L
R VIDEO OUT L
OUTPUT
OUTPUT
LINE OUT
DIGITAL OUT
VIDEO OUT
S-VIDEO OUT
VIDEO OUT
LINE OUT
S-VIDEO OUT
S-VIDEO OUT
L R
L R
L R
Connecting a Video game component
• Connect the Video game component’s output jacks
to this unit’s V. AUX INPUT jacks.
Video game
Video camera
Connecting a video camera component
• Connect the video camera component’s output
jacks to this unit’s V. AUX INPUT jacks.
