14

English

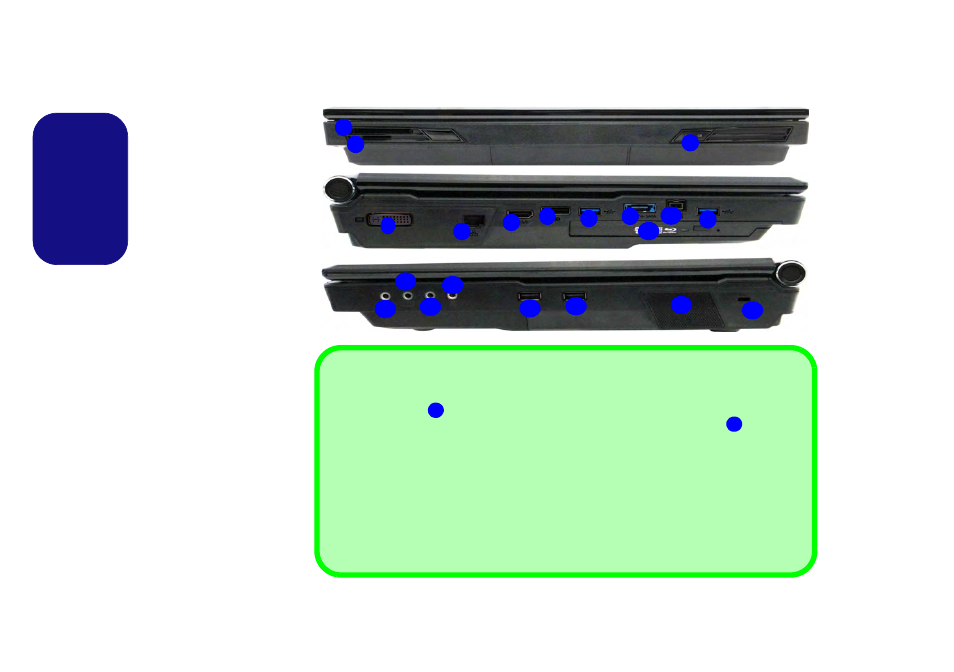

System Map: Front, Left & Right Views

Figure 7

Front, Left & Right Views

1.

LED Power Indicators

2.

Express Card Slot (54/34)

3.

Multi-In-1 Card Reader

4.

DVI-Out Port

5.

RJ-45 LAN Jack

6.

HDMI-Out Port

7.

DisplayPort

8.

USB 3.0 Ports

9.

Combined eSATA/Powered
USB 3.0 Port (See Below)

10. Mini-IEEE 1394b Port

11. Optical Device Drive Bay

12. Headphone-In Jack

13. Microphone-In Jack

14. Line-In Jack

15. S/PDIF-Out Jack

16. USB 2.0 Ports

17. Sub Woofer

18. Security Lock Slot

3

6

4

5

7

2

1

Front

Left

Right

12

17

16

15

14

10

18

11



USB

The USB 3.0 ports

are colored blue. USB 3.0 will transfer data much faster than USB 2.0,

and is backwards-compatible with USB 2.0. When the powered USB 3.0 port

is on it will

supply power

(for charging devices only, not for operating devices) when the system is off

but still powered by the AC/DC adapter plugged into a working outlet, or powered by the battery
with a capacity level above 20% (this may not work with certain devices - see

page 33

). Toggle

power to this port by using Fn + power button.

HDMI

Note that the HDMI Port supports video and audio signals to attached external displays (Note
THX Tru Studio Pro will be disabled when you are connecting to an external display through an
HDMI connection - see

page 22

).

8

9

9

8

13

8

16
