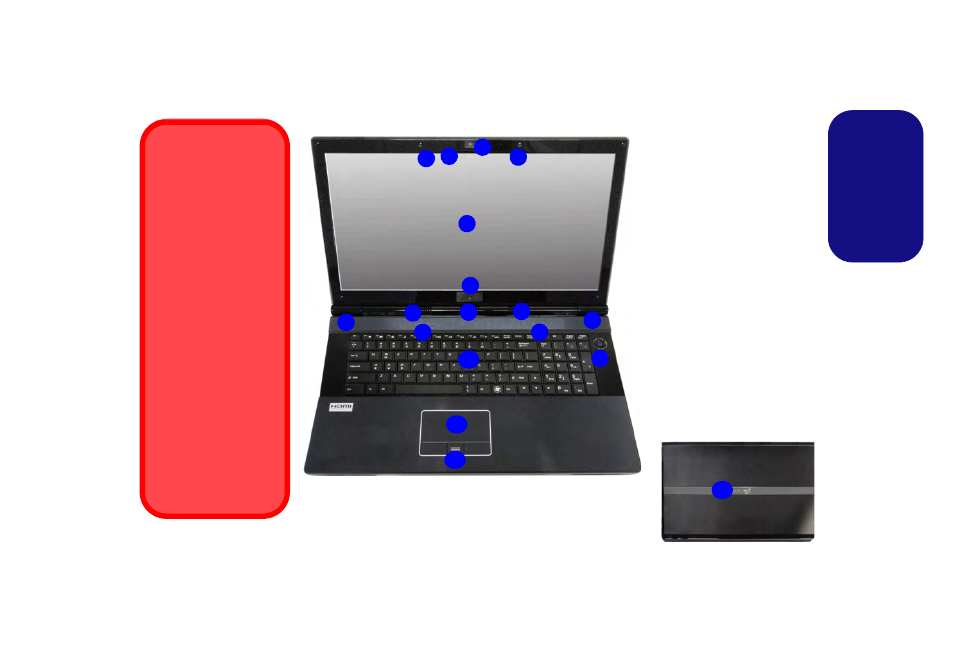

System Map: Front View with LCD Panel Open
Figure 3
Front View with LCD
Panel Open
1.
PC Camera (Optional)
2.
Built-In Microphone
3.
PC Camera LED
4.
LCD
5.
LED Status Indicators
6.
Touch Sensor Instant
Keys
7.
Speakers
8.
3D IR Emitter (Model B
Only)
9.
Power Button
10. Keyboard
11. Touchpad & Buttons
12. Fingerprint Reader
13. LCD Panel Color LED
13
2
1
6
8
9
5
3
Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission
devices (e.g. WLAN or
Bluetooth) aboard air-
craft is usually prohibit-
ed. Make sure any
wireless modules are
OFF if you are using the
computer aboard air-
craft.
Use the appropriate
function key combina-
tion/touch sensor instant
key to toggle power to
any wireless modules,
and check the indicators
to see if any modules
are powered on or not
(see
Table 4
on
page 8
).
