2.0 Installation
The LC-Series Controller is fully tested prior to delivery. However it is recommended that the LC-Series Controller
system be checked after installation is complete.
Caution: The MCU Control Units and associated modules contain no user serviceable parts. Refer all servicing to qualified
service personnel
The LC series control units must be mounted in a non-hazardous location where there is no risk of the presence of
potentially explosive gas
Either a 100-240VAC 50/60 Hz supply or a 24V DC supply can be used to power the control unit
The location of installation should be chosen with regard to the following:
 This equipment should not be located near to known sources of heat.
 Operating personnel should be within convenient reach of the equipment and within audible distance of alarms
 Maximum loop lengths of cable runs and cable inductance to resistance ratios must not exceed limits shown in the relevant
loop diagrams
 Avoid mounting this equipment near potential sources of electrical interference e.g. motors, switch gear, radio transmitters
etc.

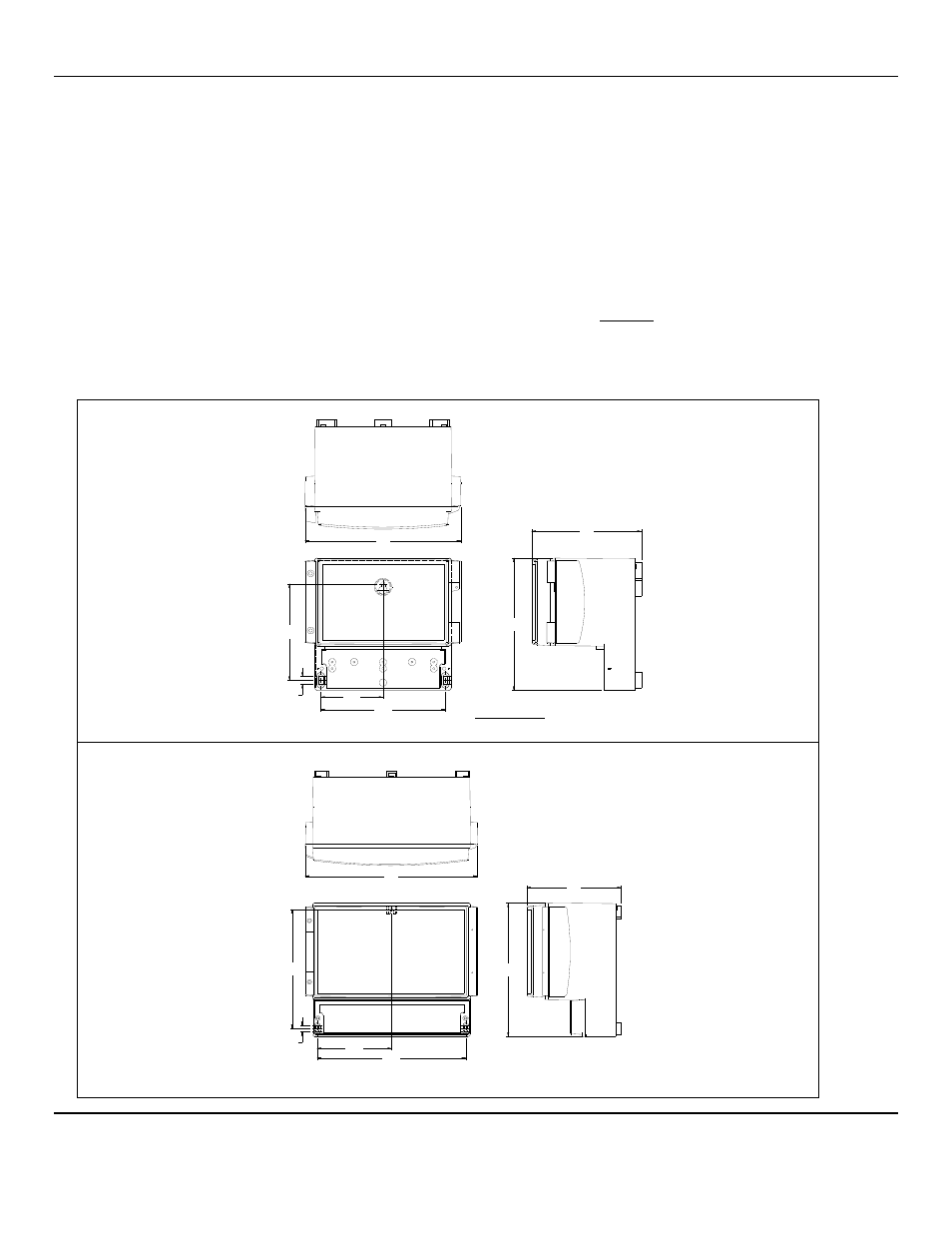

Mounting details for the LC Controller enclosures are located below:
4.585
[116.4]
2.968
[75.4]
5.937
[150.8]
.38
[9.6]
7.39
[188]
5.26
[134]
6.30
[160.0]
LC-1 CONTROL UNIT
7.656
[194.4]
4.764
[121.0] 9.528
[242.0]
11.02
[280]
6.14
[156]
8.58
[218.0]
.39
[10.0]
LC-2 Control Unit
