EX-5100 C
OMBUSTIBLE
ENMET Corporation
3
3.0 Installation of the EX-5100
C
AUTION
:
Area must be declassified during installation.
The
ENMET
EX-5100
gas sensor/transmitter (S/T) is a 3-wire, 24
V
DC
4-20 mA S/T for the detection of combustible gas. The
S/T is meant to be used in conjunction with an appropriate power supply and controller. The
ENMET
EX-5100
sensor/transmitter is in an enclosure rated for use in a Class I, Div. 1, Groups B, C, D, classified area. Appropriate wiring,
conduit and fittings are required for proper installation in a explosion proof rated environment.
C
AUTION
:
Since the sensor/transmitter detects gas only at the sensor location, pay attention to the possible sources of gas, the
density of the gas, locations where the gas may be confined and locations where the gas may damage or injure
property or personnel, when choosing locations of sensor/transmitters.
Take into consideration environmental factors when deciding on S/T location. Avoid locations where the S/T may be damaged
by liquid immersion, excessive heat or other know hazards. Also, take precautions to insure condensation inside of the conduit
does not enter the S/T.
3.1 Mounting the EX-5100 Enclosure
Mount the enclosure, using the two mounting holes provided see Figure 2. Pay particular attention to the source and density of
the gas being detected when choosing the location. Mount the S/T near the ceiling for lighter than air gases /vapors and near
the floor for heavier then air gas/vapors. Contact
ENMET
if you have questions regarding your application.
C
AUTION
:
Before connecting S/T to controller remove the power source to controller. Failure to do so may cause damage to
sensitive components.
Menu
Select

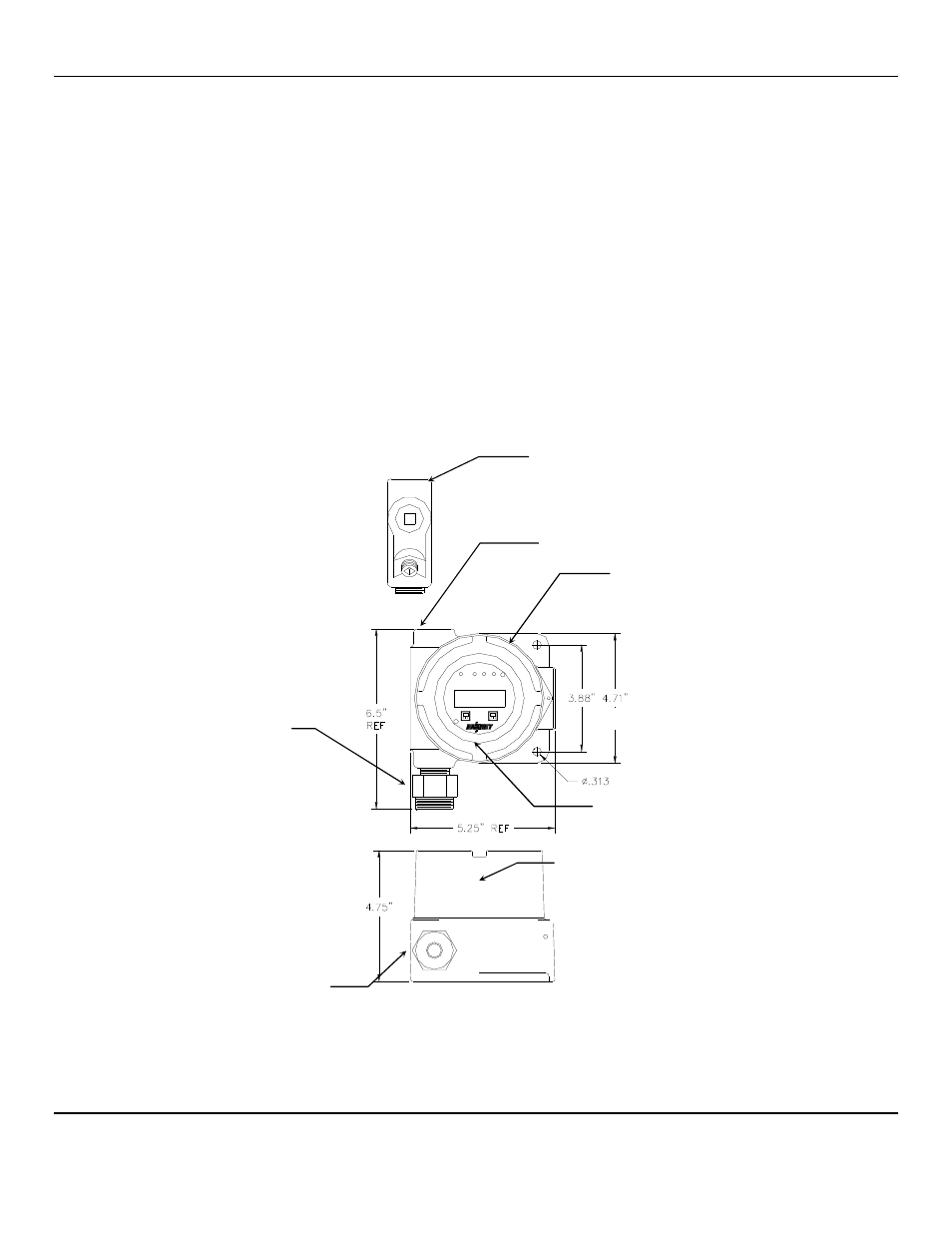

Figure 2: EX-5100 Mounting Dimensions
Optional
Conduit fitting
Typically: ½
″
NPT female
Mounting Holes
2 places, 0.313
″
T
OP
V
IEW
Sensor
Sensor/Transmitter
Enclosure Top View
Sensor/Transmitter
Enclosure Side View
Sensor
S
IDE
V
IEW
½
″
NPT female
