3.0 Installation
3.1 Mounting of Instrument
The
GSM-60
should be located near the air to be monitored. Sampling lines should be no more then 50 feet long. It is
recommended that Teflon® (PTFE) lined tubing be used. Quick disconnect fittings are supplied for use with 1/8” ID tubing.
Mount the instrument on an appropriate vertical surface using the mounting flanges provided. Avoid areas with excessive
vibration or temperature extremes. The holes in the flanges are 0.31 inch in diameter and form a 6 x 10.75 inch rectangle. See
Figure 3.
It is recommended to use #8 drywall anchors and screws for mounting the
GSM-60
to a drywall/sheetrock surface.
Dimensions are in inches.

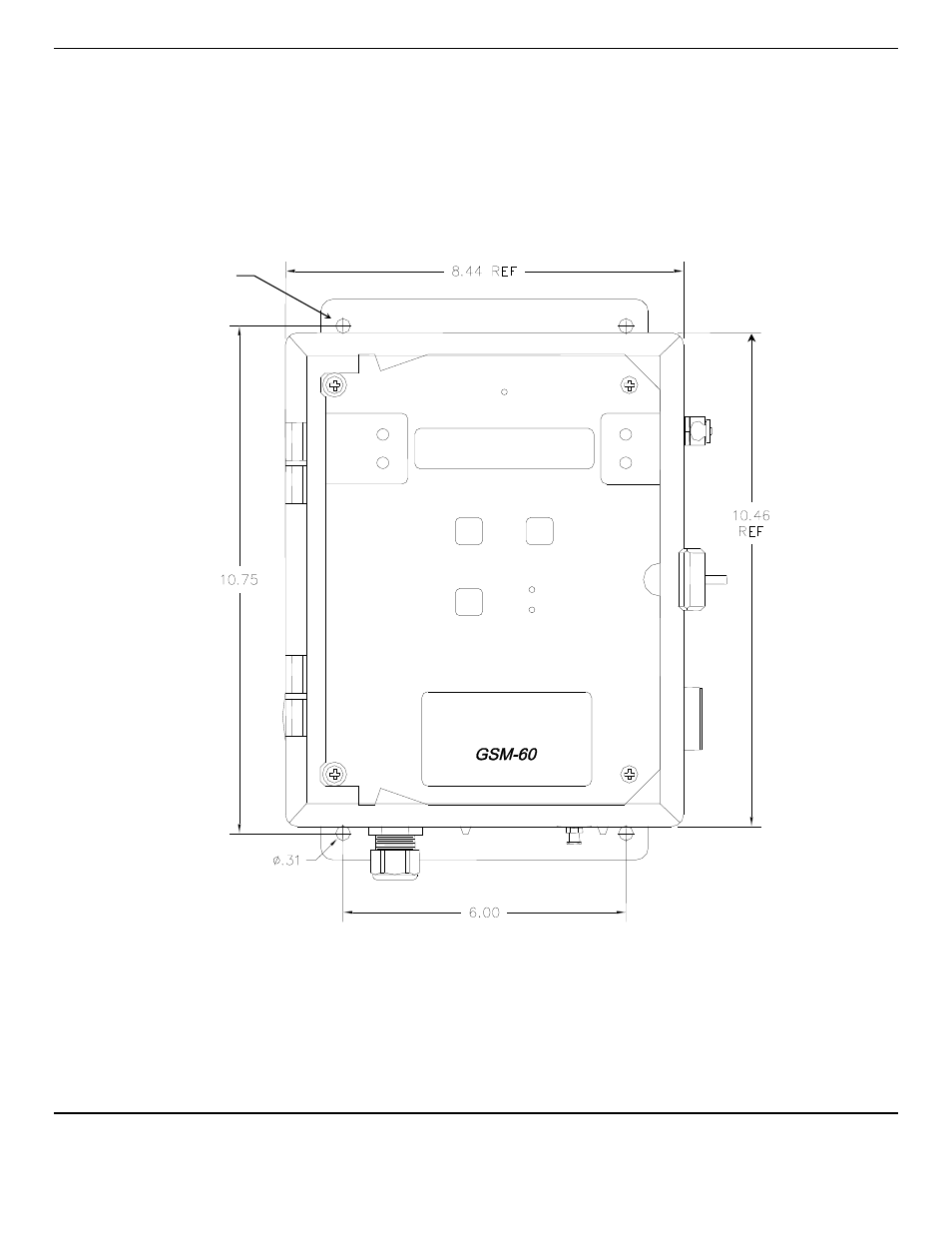

Figure 3: GSM-60
Mounting Dimensions
Mounting Holes
0.31” dia. 4 places
