3.6 Connection to a Printer
The SMART LOGGER keeps the following data in memory:
- Events, such as alarms, resets, faults, etc.
- Measurements for a duration of 120 working hours. This duration may be reduced by a proliferation of memorized events.
So you can output statistical charts on a printer, connection is made with the CHARGE/PRINT mini-DIN plug located on top
of the instrument by means of the printer cable.
The printer must be of the serial type compatible with an IBM-PC.
- Plug in the connecting cable between the SMART LOGGER and the printer
- Turn the printer on, configure it, position "on line." See Section VI.
- Turn the SMART LOGGER on with the ON/OFF switch
- Press the OPTION switch, which starts the printing process
The display indicates:
If the instrument working duration has been less than 15 minutes, only the events are printed in chart form. For a duration of
16 minutes or more, the events are followed by a histogram representing the measurements, as shown below.

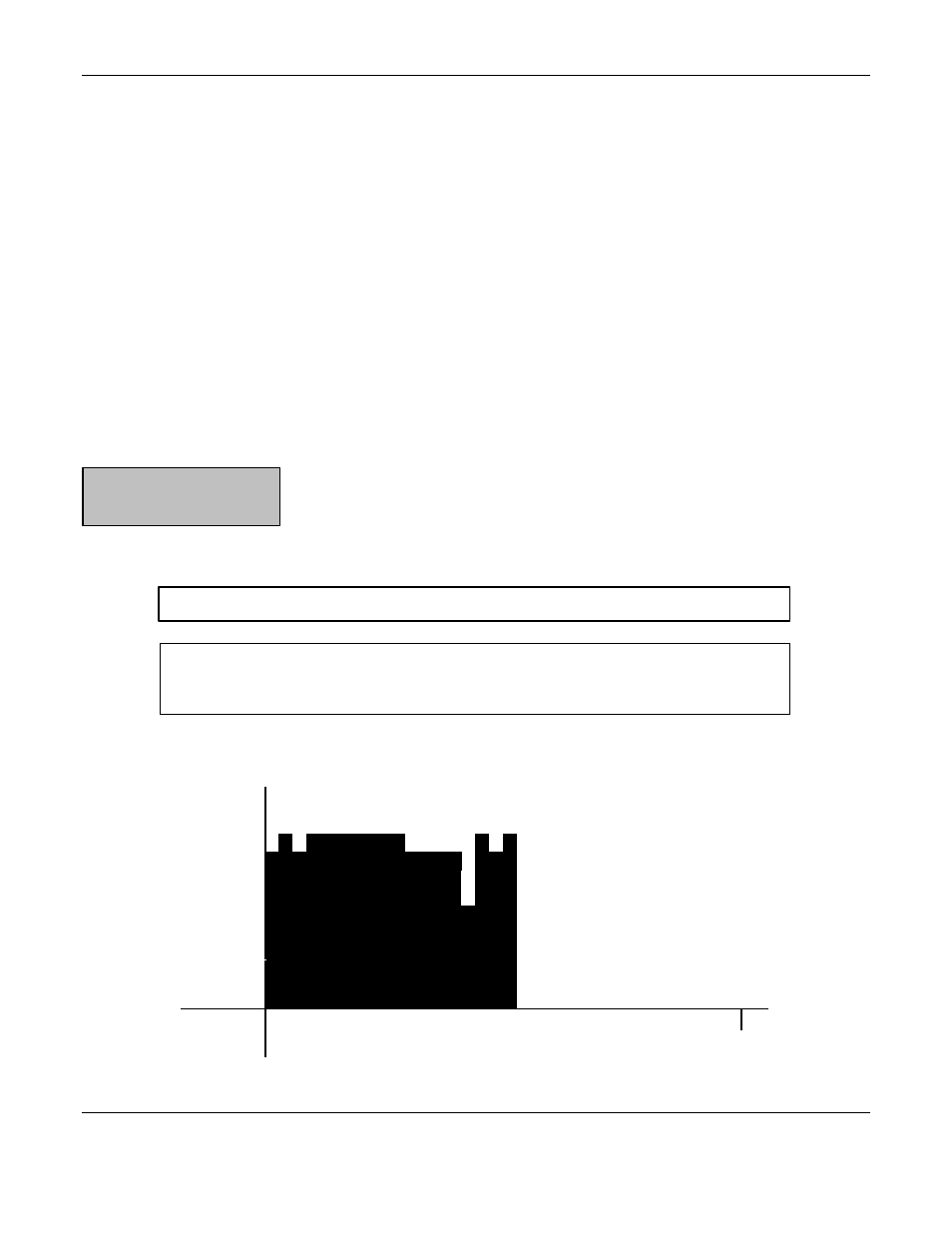

HISTOGRAM : From 09/18/93 at 12:17AM
% OXYGEN
24.0_
18.0_
12.0_
| | | | | | | | | | | | | | | | |
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
Time (h)
PRINTING
Type :TX12 Version GB 1.1 No. :94-04-00843
Type of gas : Oxygen
Range : 0-30.3 % O2 High Alarm : 23.5 % O2
Low Alarm : 19.5 % O2
