E2436 Exploded View & Parts List
Item Part No. Description Qty
1 1612-90 12″ Grate w/out Element Clamp & Bolts 3
2 1609-50 Heating Element 208v 1500w 6
** 1609-00 Heating Element 240v 1500w 6
** 1609-20 Heating Element 440v 1500w 6
** 1609-30 Heating Element 480v 1500w 6
3 1611-00 Element Clamp 18
4 1711-02 E36 Rear Grease Trough Channel 1
5 1610-00 E Series Right Side Splatter Guard 1
6 8406-40 Switching Relay H-D 3
7 8450-12 6 Inch Leg 4
8 1704-02 E36 Leg Channel 2
9 1604-00 Grease Pan 2
10 1605-00 Grease Pan Front 2
11 1900-03 E36 Control Panel 1
12 1615-00 Red Indicator Light Assembly 3
13 8445-15 Infi nite Knob 3
14 8425-20 Infi nite Switch 3
15 8408-52 3 Wire Terminal Strip 1
15
3
17
1
2
4
7
14
16
18
13
12
11
8 10 9
5
Electric Broiler
Model E2436
6
Item Part No. Description Qty
16 4533-22 Emberglo Name Plate 1
17 1610-10 E Series Left Side Splatter Guard 1
18 1900-02 Hopper Kit 1
** Not Shown
1621-00 Grill Scraper 1
1625-04R Relay Repair Kit 1
8447-26 Transformer 1
AVOID ERROR IN PARTS SELECTION. When ordering, use
complete EmberGlo part number and description. Furnish
model
number, bill of material number and date code or serial
number from specifi cation plate

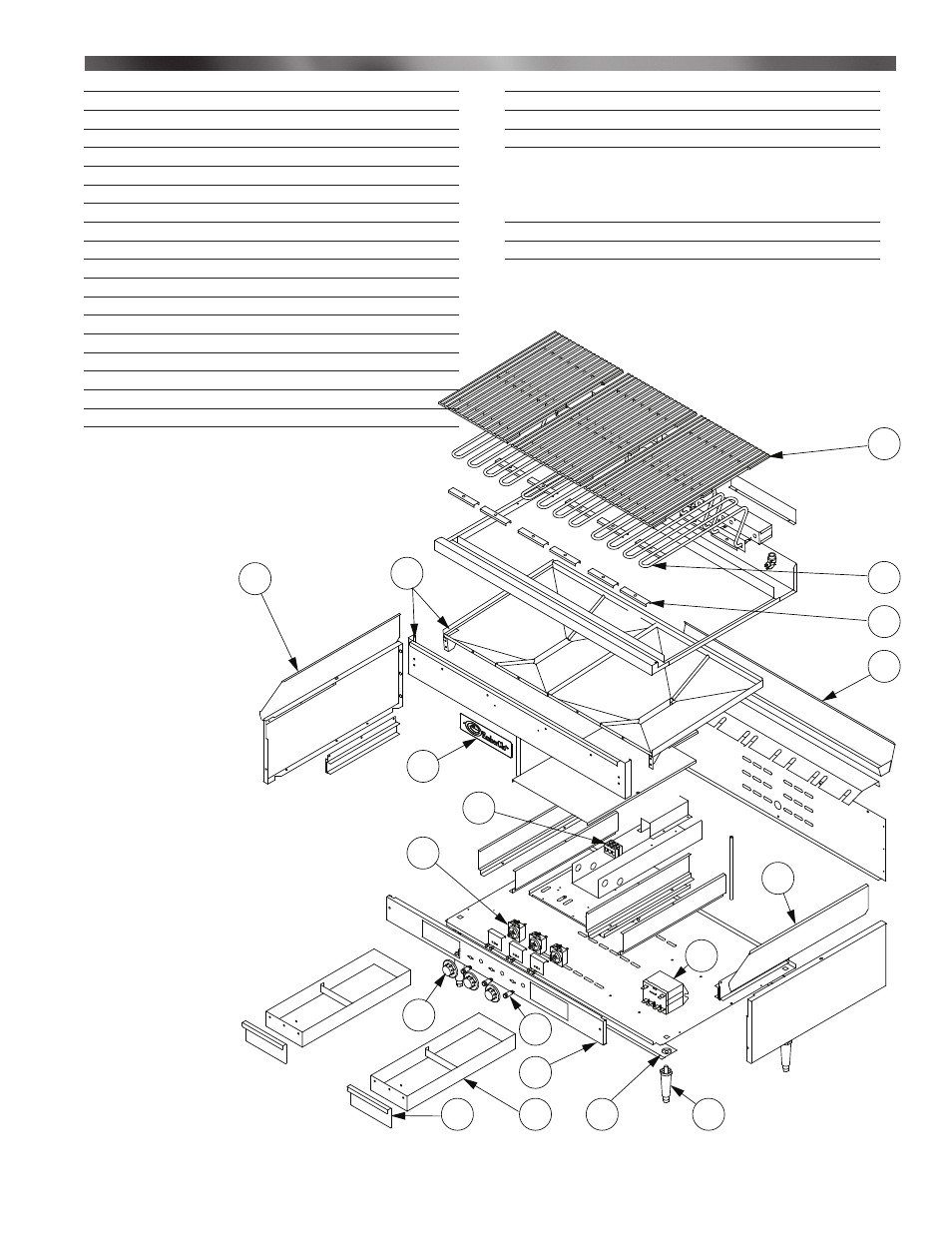

Figure 3 - Exploded View for E2436
