EmberGlo E2436 - Manual (Page 4)

4
EmberGlo A Division of Midco International Inc 8471 65
Schematics -
Continued

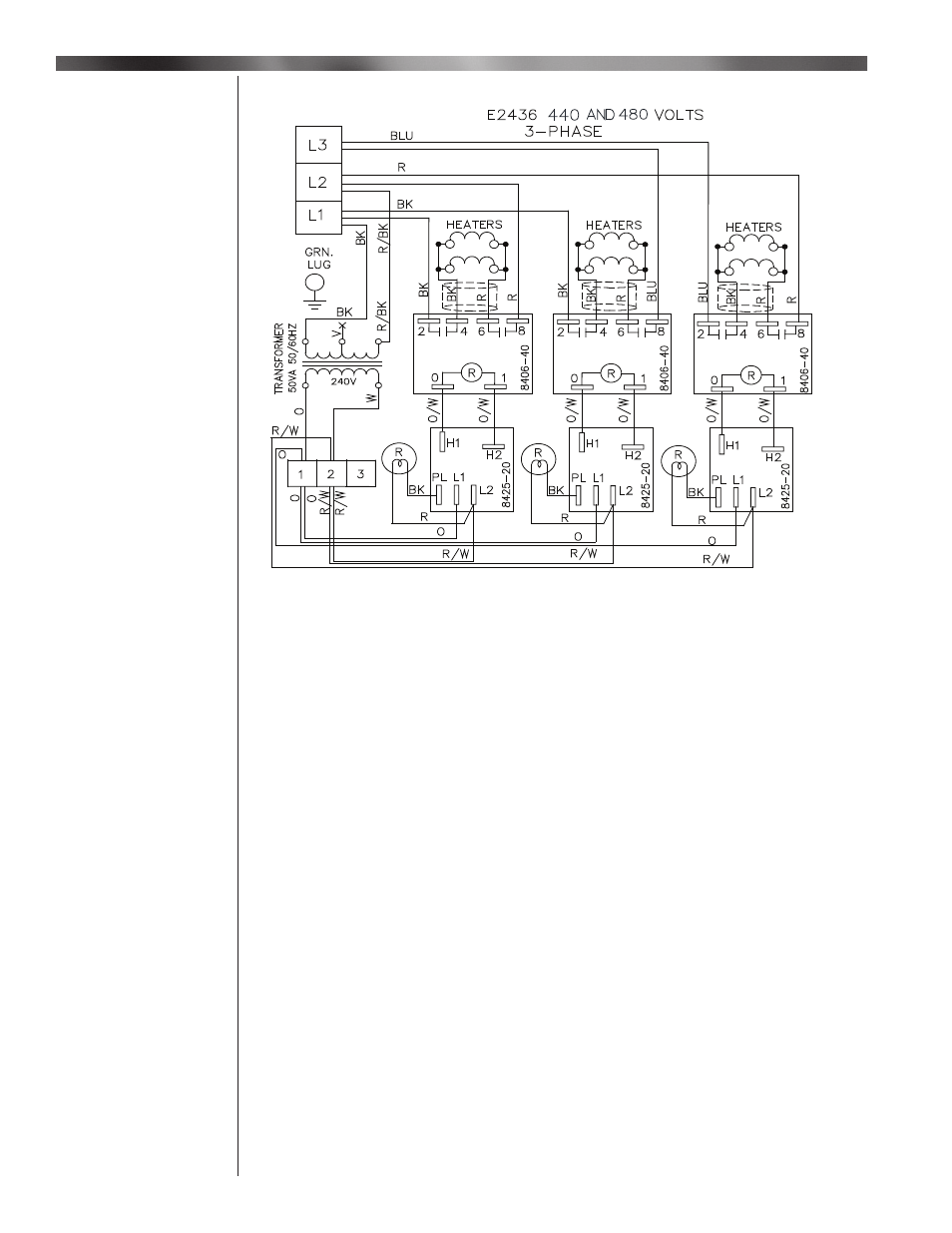

Figure 2A - E2436 Schematics for 440 V and 480 V for 3-Phase
E2436 Electrical Wiring Schematic - 440 & 480 Volt
1600-35 (440 V) and 1600-36 (480 V)
