EmberGlo E2436 User Manual

Page 3

background image

EmberGlo

A Division of Midco International Inc

8471 65

3

Schematics

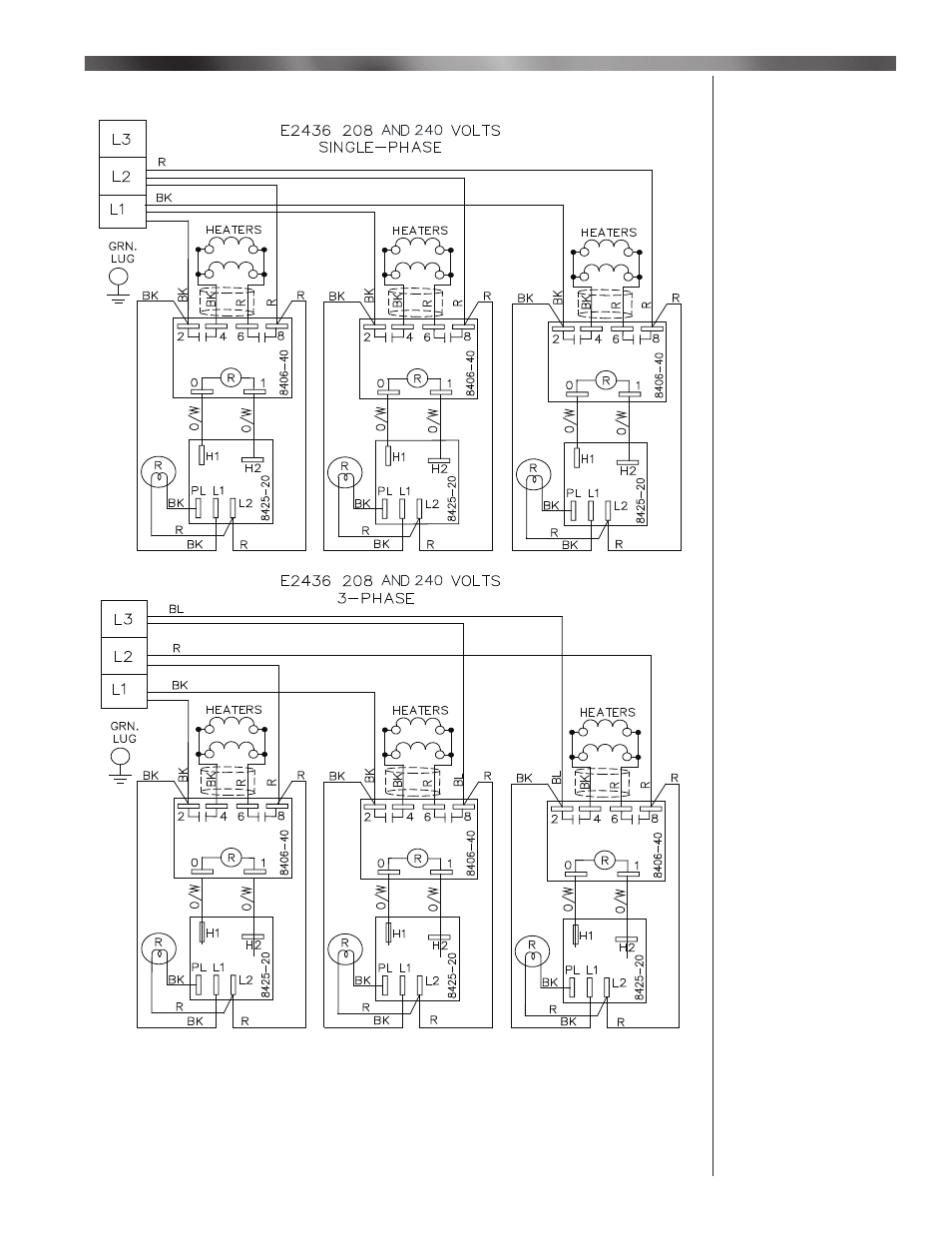

Figure 2A - E2436 Schematics for 208 V and 240 V for Single Phase and 3-Phase

E2436 Electrical Wiring Schematic - 208 & 240 Volt

1600-33 (208 V) and 1600-34 (240 V)
