EmberGlo Shish Kabob Kit User Manual
Service bulletin, Parts list

Service Bulletin
CAUTION: Read and understand this service bulletin thoroughly before starting. Only
a trained, experienced service technician should attempt this service procedure.
Quality Designed for Proven Performance
Printed in USA
SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of
special notations and have standard meanings throughout this manual. They are printed in all capital letters
using a bold type face as shown below, and preceded by the exclamation mark symbol. When you see the
safety alert symbol and one of the safety information terms as shown below, be aware of the hazard potential.
DANGER: Identifi es the most serious hazards which will result in severe personal injury or
death.
WARNING: Signifi es a hazard that could result in personal injury or death.
CAUTION: Identifi es unsafe practices which would result in minor personal injury or product and
property
damage.
EmberGlo
A Div of Midco® International Inc.
4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0515
tel
773.604.8700
fax
773.604.4070
web
www.emberglo.com
8471 18
712
Quantity
per
Broiler Model
Kit number 4508-51 4508-52
Model
Model Model
Description
25
31
41
1. Support Bracket - Left
2
2
2
2. Support Bracket - Right
2
2
2
3a. 30″ Support Bar
-
2
2
3b. 20.5″ Support Bar
2
-
-
4a. Skewer (24.0″) -
10
10
4b. Skewer (20.5″ )
10
-
-

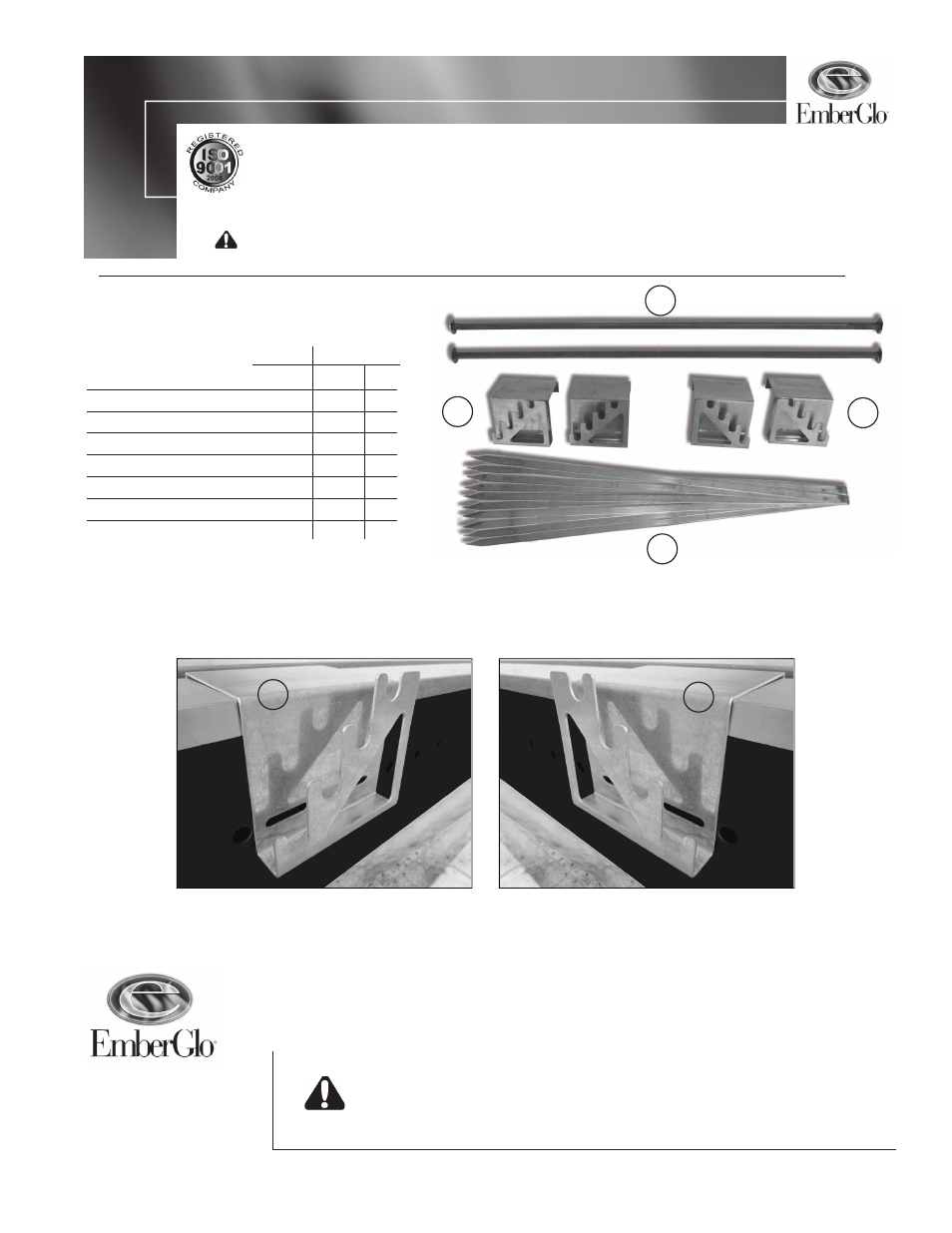

Installation of Shish Kabob Kit for
EmberGlo® Gas Char-Broilers
Parts List
Figure 1
Install the Support Brackets with the lowest support bar notch facing the front of the broiler. (Figures 2 and 3)
Figure 2 - Left Side
Figure 3 - Right Side
1). Mount Support Brackets
1
2
3a
4a
1
2
Not shown
Not shown
