Page 24
-23-
CATEGORY OF CABLE
• Unshielded communication cable with RJ-11 and
RJ-45 connectors.
• Ethernet 10 Base-T, Token Ring, EIA/TIA-568A/B,
AT&T 258A, and USOC.
• 50 or 75Ω coaxial cable with F connectors.
• 50 or 75Ω coaxial cable with BNC connectors.
Must use F to BNC adapters.
Maximum testing length for all cable types is
1,000 feet.
MULTIPLE FUNCTIONS
• Testing cables before or after their installation.
• Mapping Function (to test individual wire pairs or
coaxial cables).
• Cable identification (straight or cross-pinning).
• Pair identification (straight or cross-pinning).
• Open/short wiring test.
ENVIRONMENTAL CONDITIONS
• Operating Conditions: 0
O
C - 45
O
C / 32
O
F - 113
O
F
70% RH max.
• Storage Conditions: -10
O
C - 50
O
C / 14
O
F - 122
O
F
80% RH max.
POWER
• Standard or alkaline 9V battery
• Low battery indicator (Lo Batt.)
• Auto power-off function (30 s)
SPECIFICATIONS

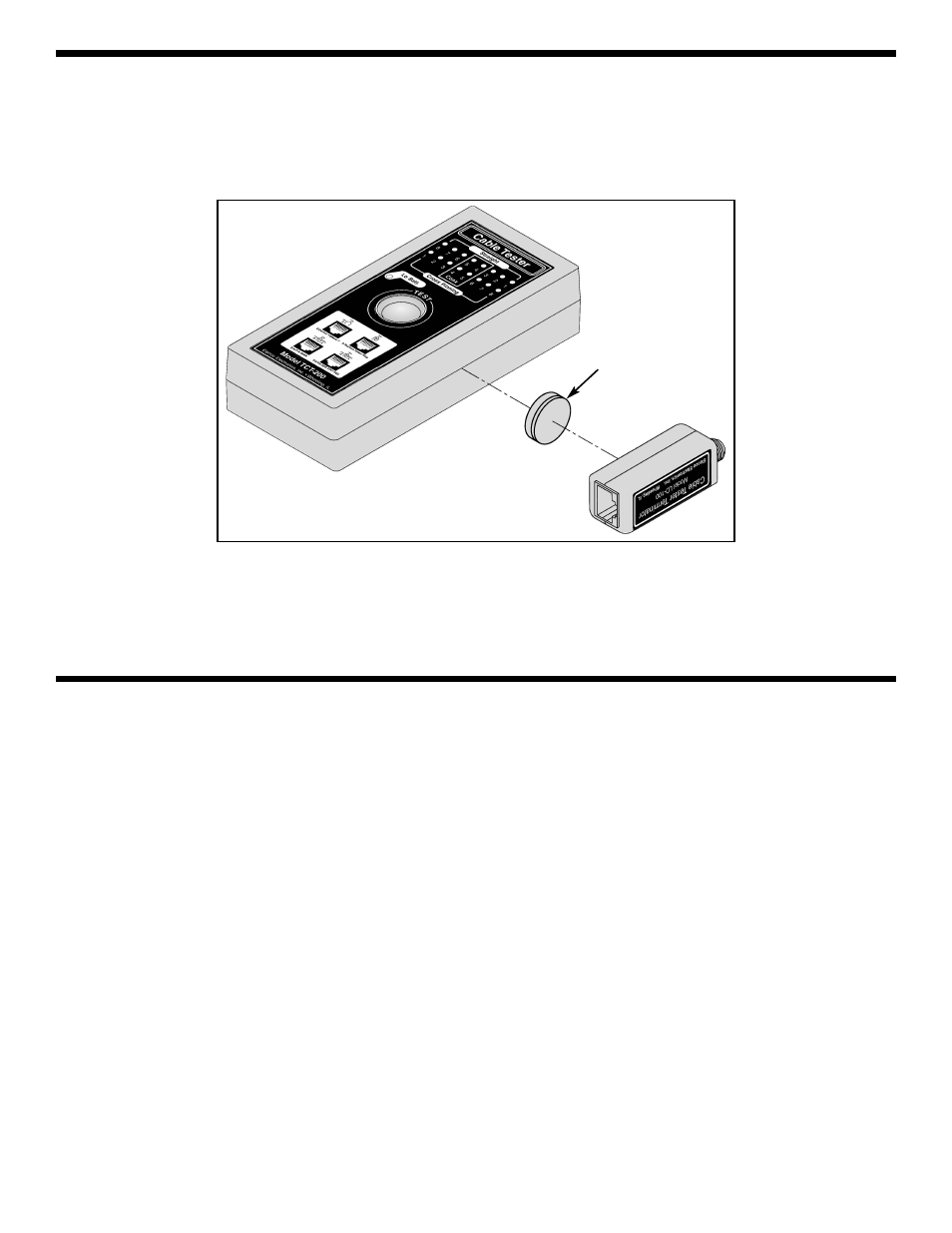

r Peel off the two backings, and attach the two
velcro pieces onto the terminator and the tester
in the location shown in Figure W.
FINAL ASSEMBLY (cont.)
Figure W
Velcro Pieces
