-22-
M3 Phillips
Screw

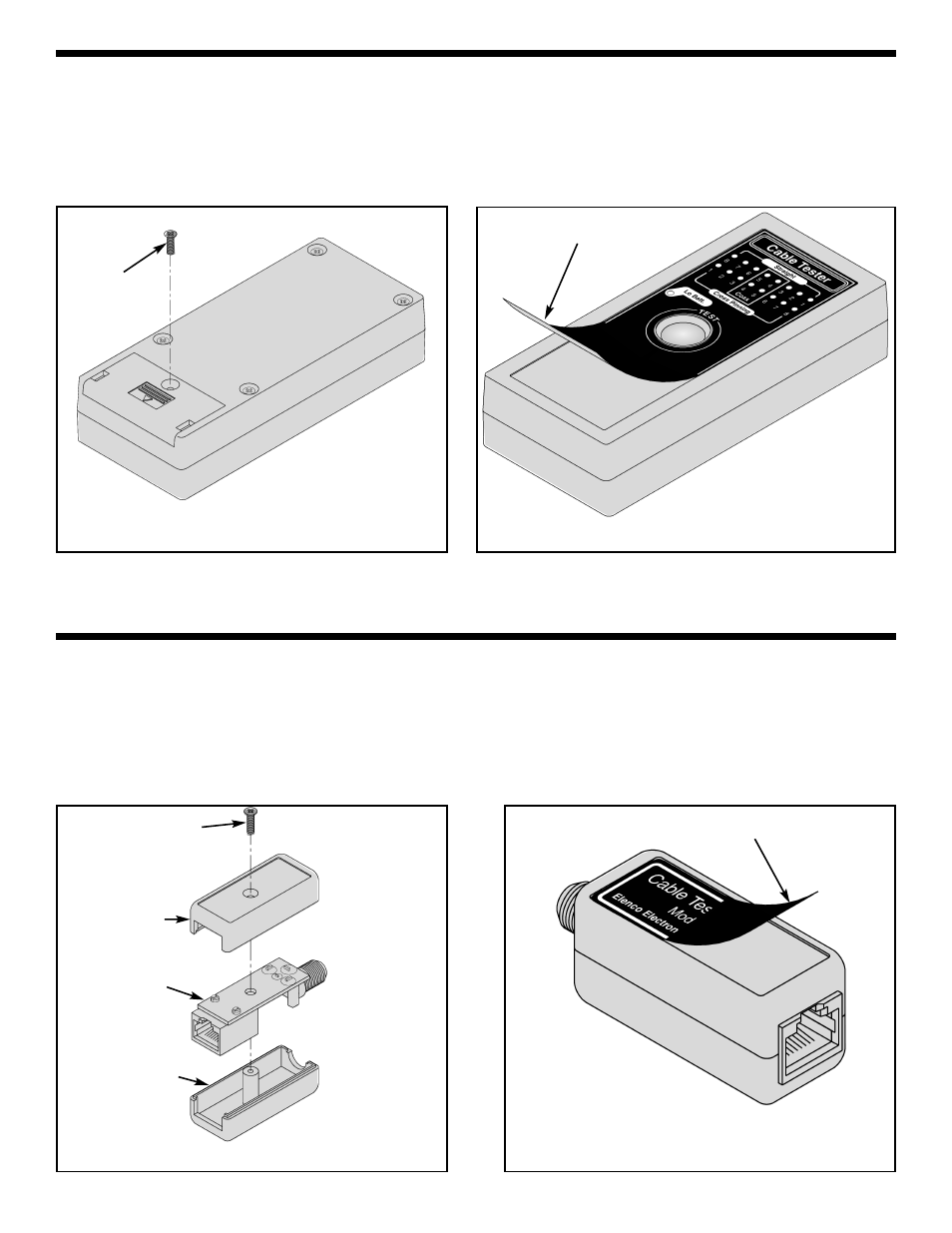

r Insert the M3 x 10mm machine phillips screw into
the battery cover hole, as shown in Figure S, and
tighten.
r Peel the backing off of the label and stick it onto
the front case as shown in Figure T. Use the hole
in the middle to line up the label. Note: Be very
careful when applying this label. The adhesive is
very sticky and when the label is on, it’s on!
Figure S
Figure U
Figure T
FINAL ASSEMBLY OF TESTER (cont.)
r Before assembling, check that the excess leads
from the F-connector are cut off (see page 16).
r Assemble the terminator as shown in Figure U.
Insert the 2.6 x 10mm flat phillips screw and
tighten down.
r Peel the backing off of the terminator label and
carefully place it onto the unit as shown in Figure V.
Note:
Be sure that the terminator has been
tested and is in working order before you apply
the label.
FINAL ASSEMBLY OF TERMINATOR
2.6 x 10mm Flat
Phillips Screw
Top Load Case
Load PC Board
Bottom Load Case
Label
Figure V
Load Label
