Page 17

-16-
TIP SIZES
The tip sizes and shapes greatly effects the heating
and heat-recovery. Today, tips are manufactured in a
variety of different shapes (see figure below). The
SR-6 comes with a conical shape, (#SR-2BT2) one
of the most common. Having a choice of tip styles
allows you to choose the one best suited for your
soldering needs. Due to the high heat, removable
tips can bond themselves to the heating element if
left in place for extended periods. Periodic removal
of the tip is therefore advisable.

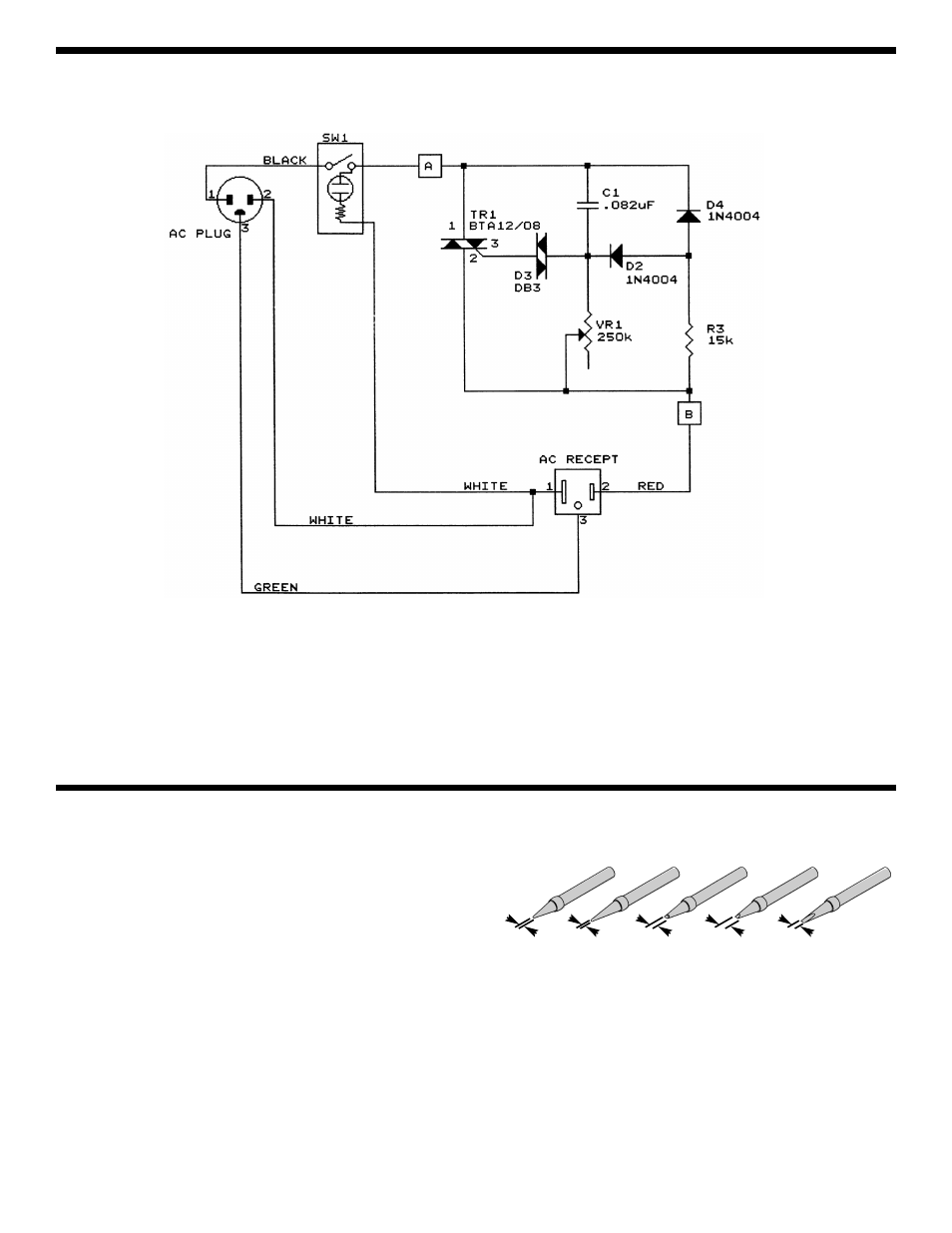

SCHEMATIC DIAGRAM
1/32”
1/64”
1/16”
1/8”
3/64”
Tip Package Model TIPK-1
