Elenco Soldering Station User Manual
Page 10

-9-

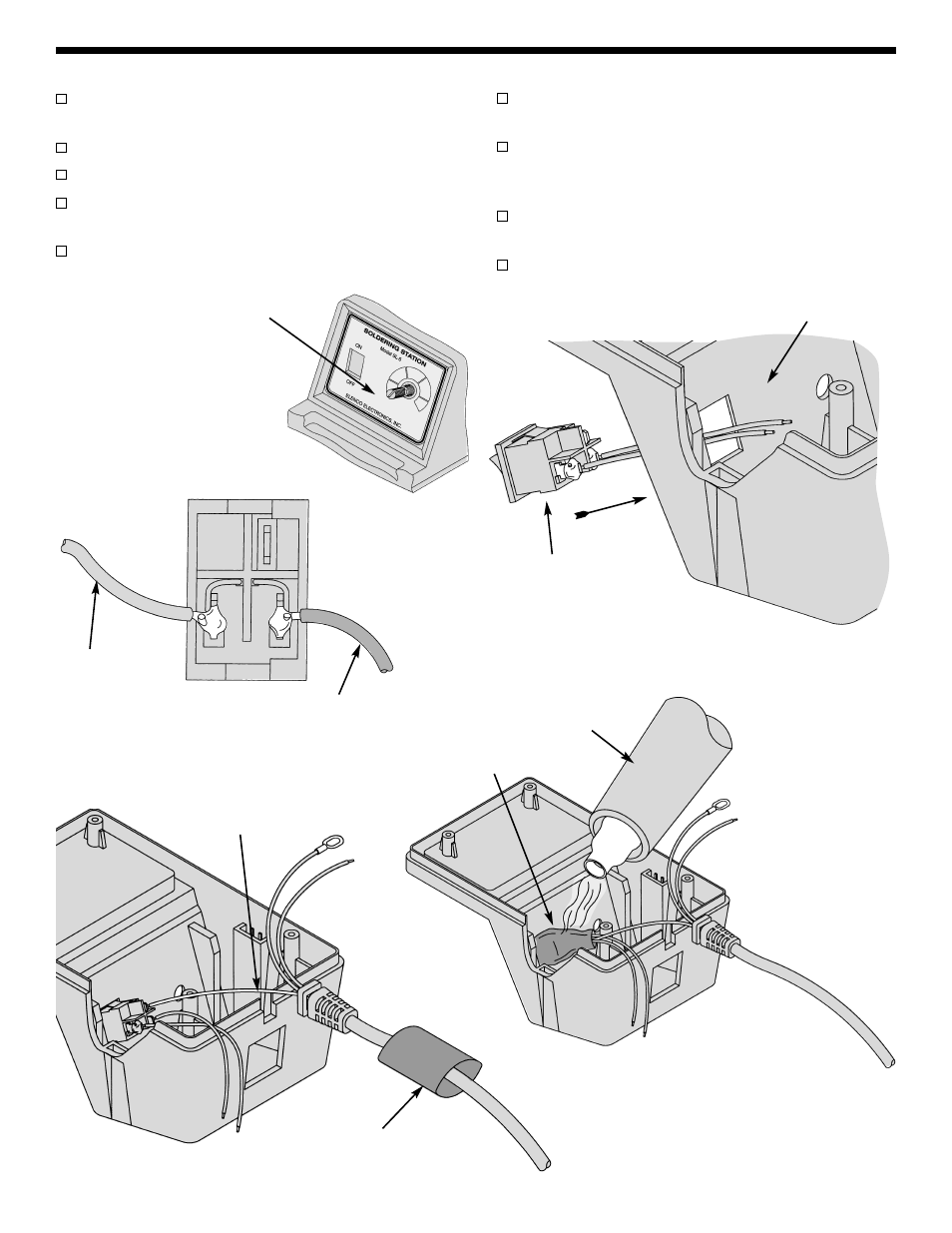

SWITCH ASSEMBLY
Figure H
Apply the front label to the case as shown in
Figure F.
Solder a 4” white wire to lug #3 as shown in Figure G.
Solder a 4” black wire to lug #1 as shown in Figure G.
Insert the switch into the opening on the front as
shown in Figure H.
Strip the insulation off the black and white line cord
wires to expose 1/2” of bare wire if needed.
Slip the 3/4” dia. shrink tubing over the line cord as
shown in Figure I.
Solder the black line cord wire to the #2 lug as
shown in Figure I. Make sure the tubing is away
from the soldering iron, so it will not shrink.
Slip the shrink tubing over the wires and switch as
shown in Figure J.
Use a heat gun or hair dryer and shrink all of the
tubing into place.
Figure G
1
3
2
4” Black Wire
4” White Wire
Back of Switch
Figure F
Front Label
Switch
Case
Black Line Cord Wire
3/4” Shrink Tubing
Figure I
Shrink Tubing
Heat Gun
Figure J
