Page 8

-7-

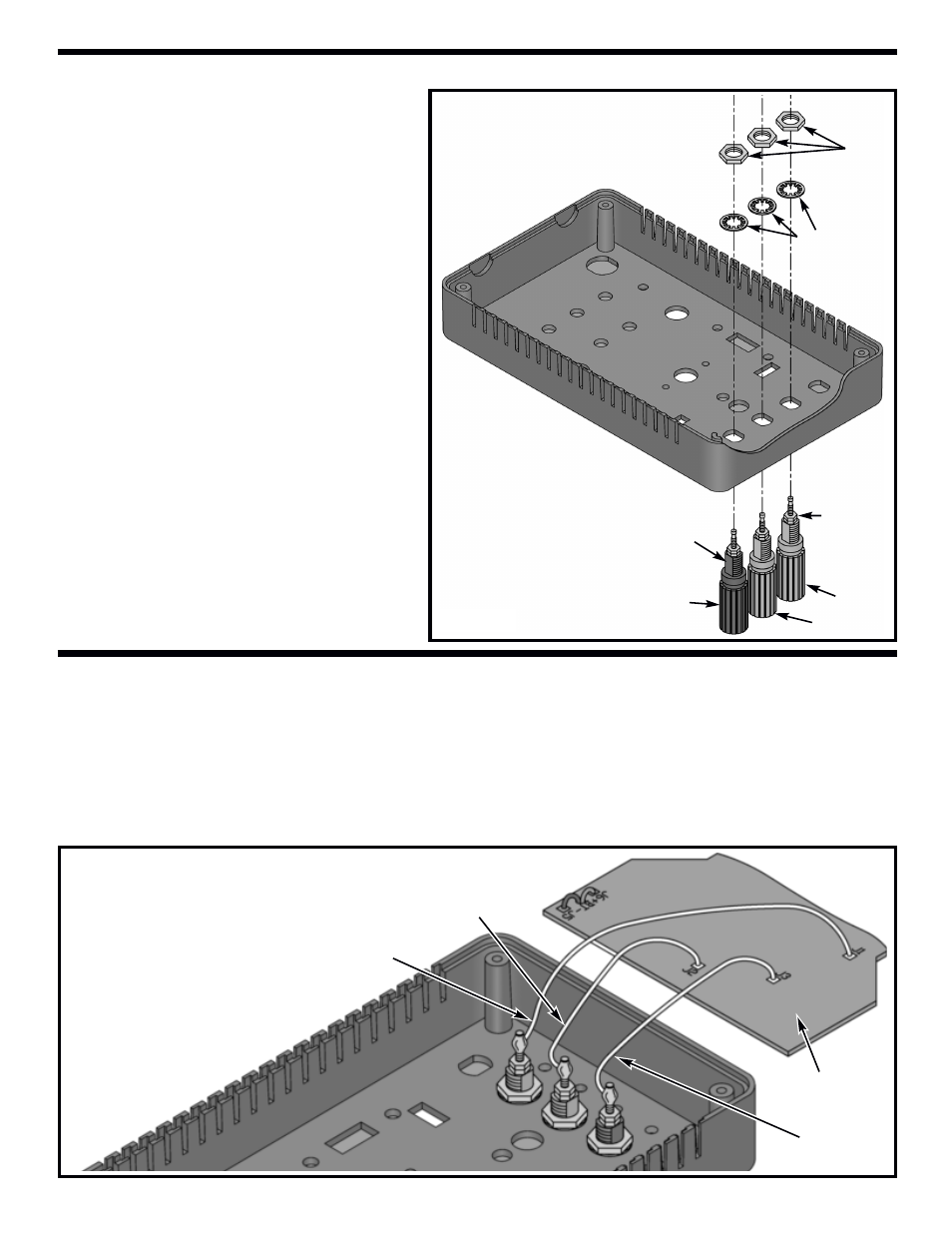

WIRING (See Figure J)
r Solder the wire from hole J1 on the PC board to
the first yellow binding post as shown.
r Solder the wire from hole J2 on the PC board to
the second yellow binding post as shown.
r Solder the wire from hole J3 on the PC board to
the black binding post as shown.
Wire from
Point J3
Wire from
Point J2
Wire from
Point J1
Component side
of PC board
Figure J
Figure I
r Install the colored binding posts to the
panel as shown in Figure I. Use the
hardware shown in the figure. Make sure
that the small nuts are tight.
INSTALL COMPONENTS TO FRONT PANEL (continued)
Nuts
Lockwashers
Binding post
Yellow
Black
Small nut
Yellow
