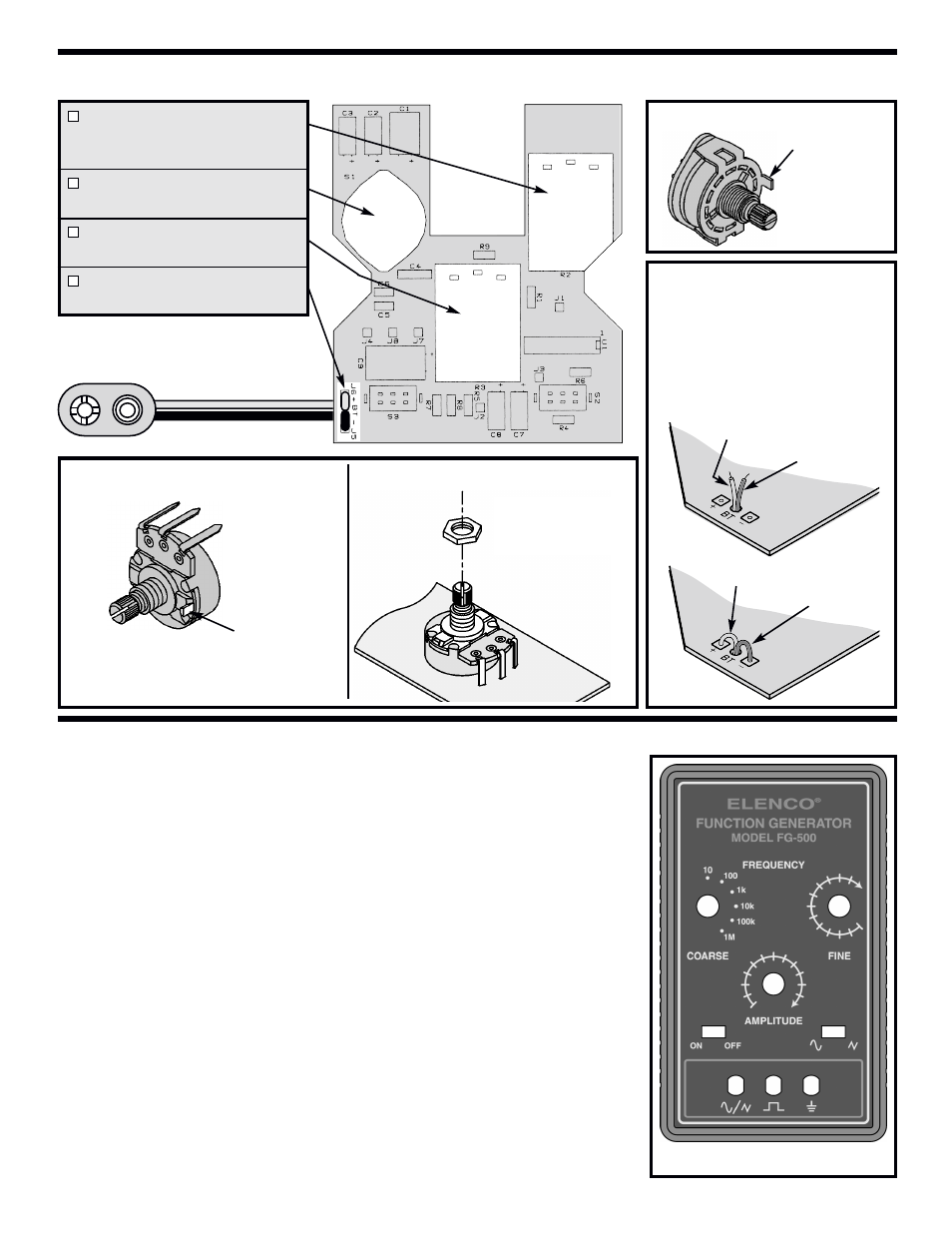

Page 7

Figure Ea Figure Eb
Mount the pot down flush with the PC
board. Solder and cut off excess leads.
ASSEMBLE COMPONENTS TO THE PC BOARD (continued)
R2 - 10kΩ Potentiometer
Hex Nut 7mm
(see Figures Ea & Eb)
S1 - 6 position Rotary switch
(see Figure F)
R3 - 100kΩ Potentiometer
(see Figure Ea)
Battery snap
(see Figure G)
Figure G
Thread the battery snap wires
through the hole in the PC board
from the solder side as shown.
Solder the red wire to the BT+
point and the black wire to the BT–
point on the PC board.
Red Wire (BT+)
Black Wire (BT–)
Red Wire (BT+)
Black Wire (BT–)
Put a 7mm hex
nut onto the pot
as shown.
Figure F
Mount down
flush with PC
board.
Cut off tab
Cut off tab
r Peel the backing off of the front label and carefully adhere it to the top
case, aligning the holes while doing so, as shown in Figure H.
INSTALL COMPONENTS TO FRONT PANEL
Figure H
-6-
