Elenco Rhinoceros Mini-Beest Kit - Manual (Page 22)

5
.
6
.
2
.
3
.

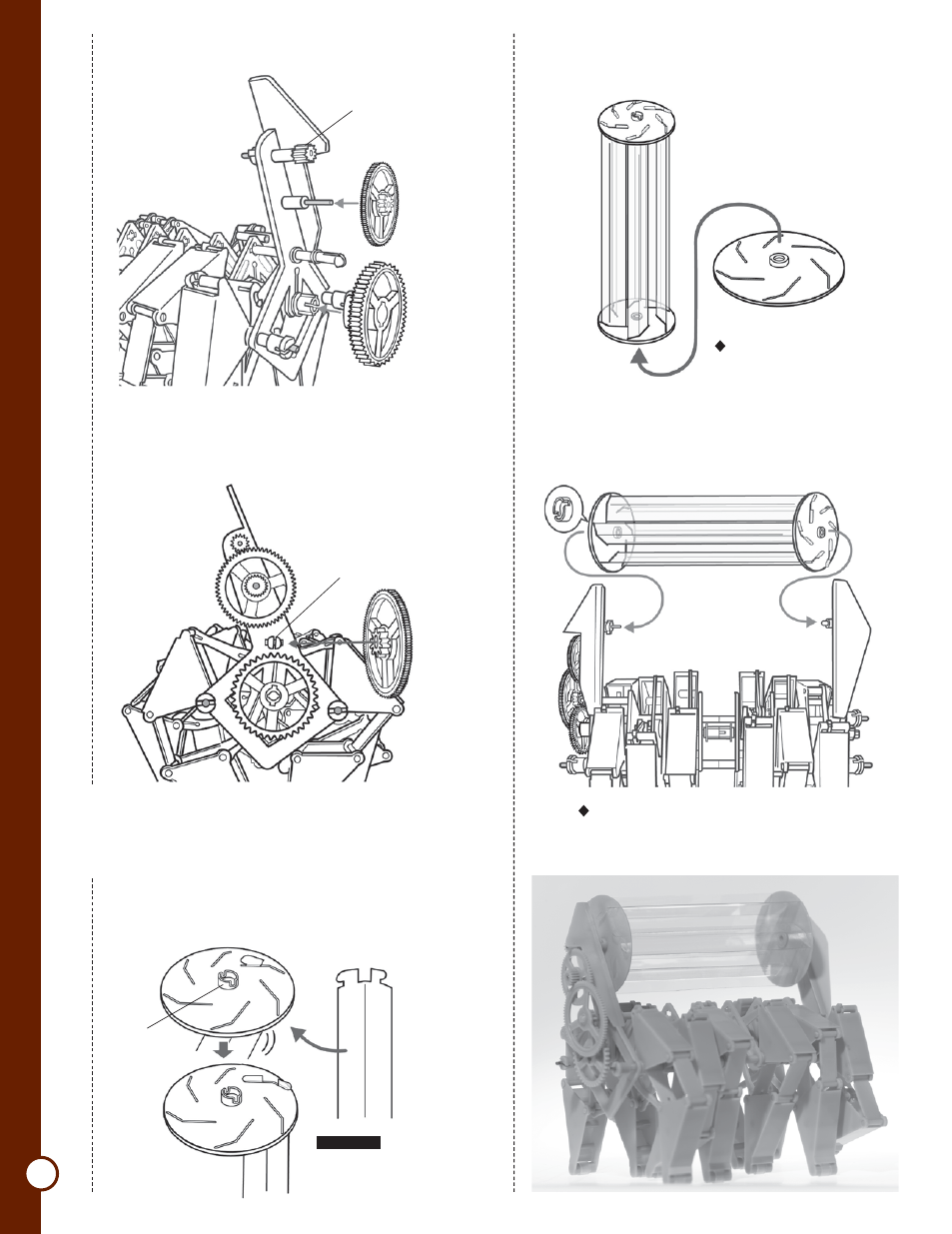

Attach the cogwheels (B) and (C) to the right frame.
Be sure to check the orientation.
Attach the cogwheel (A) to the cogwheel shaft. Snap
it into place, taking care to ensure that it is attached
in the correct direction.
After inserting all six blades in the same way,
attach the fan base (left) on the opposite side. This
completes the sirrocco fan.
Attach the sirrocco fan to the body.
Right frame
Cogwheel (B)
Cogwheel (C)
Attach the cogwheel (B)
to the right frame so
that the teeth on the
outside cogwheel engage
with the teeth on the
gear on the right frame.
Attach it to the tip
of the crankshaft.
Cogwheel (A)
Assembling the Sirrocco Fan
1
.
Attach the blades to the fan base (right).
Fan base (right)
Blade
Large
protrusion
Small
protrusion
Orient the fan
base with the
protrusion side
up when
attaching.
There are two protrusions on the tip of the
blade. Insert the blade so that its smaller
protrusion is located outside.
Orient the fan base (left) with the
protrusion facing down, and insert the
blades into the grooves in the same way
as above..
Attach the fan to the left frame first, and then line up the
protrusion on the fan base (right) with the cogwheel axis on the
right frame to attach the fan.
Fan base (left)
Completed
Gear
Cogwheel shaft
Left frame
Right
frame
IMPORTANT
22
